ALIBI ALI-TP1005L Quick Installation Manual

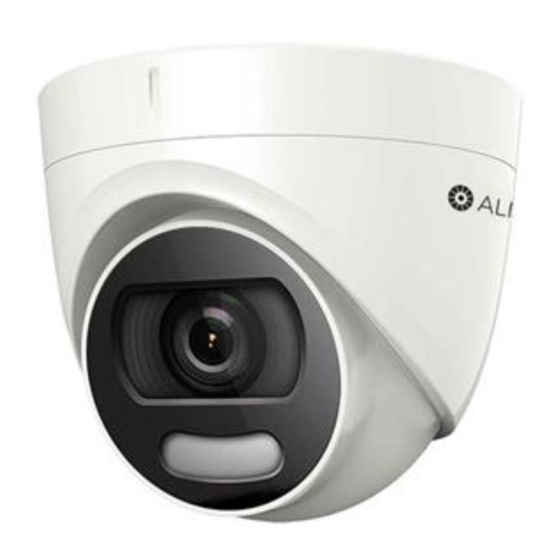

ALI-TP1005L 5MP 4-in-1 Turret Camera
with IllumiNite Technology
Quick Installation Guide
The ALIBI ALI-TP1005L indoor / outdoor turret camera includes a 4 -in-1 switchable video output (TVI
/ AHD / CVI / CVBS) with a 5 MP sensor and IllumiNite technology for color vision at night. This camera
features:
5 Megapixel (2560  1944 pixels) progressive scan CMOS sensor up to 20 fps
•
Switchable video output for TVI, AHD, CVI, or CVBS (4-in-1)
•
2.8 mm fixed lens offers horizontal FOV of 99.7°
•
Starlight chipset with up to 65 ft white light distance
•
Color: 0.005 Lux, 0 Lux with white light
•
True WDR up to 130 dB
•
IP67 weather-rated with -40°F ~ 140°F operating temperatures
•
OSD menu (up-the-coax OSD control)
•
Compatible with ALI-AB1 Wall mount adapter, ALI-AA1 pole mount adapter, ALI-AA2 outdoor
•
corner mount adapter, ALI-AB1 short wall mount bracket with J-box, ALI-AB2 long wall mount
bracket with J-box, ALI-AF1 flange plate, and ALI-AJ1 round junction box.
Alignment mark
Cable
channel
Enclosure
Camera
body
ALI-TP1005L camera
Mounting
screw
holes (3)
Mounting base - mounting surface
www.observint.com
1
What's in the box
Box contains:
Installation Guide
•
Drill template
•
Mounting screws and wall inserts
•
Mounting
base
What you need
To install the camera, you will need:
12 Vdc power source. See Specifications for requirements.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Video, power and ground (if needed) extension cables
•
Installation
Before installation:
Orientation
Make sure that the device is in good condition and all the assembly parts are included.
•
mark "UP"
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the
•
camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
Lens
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
White light LED
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
—
cable to a compatible recorder.
Mounting
base
Power connector: The camera can be powered by 12 Vdc. When applying 12 Vdc power,
—
observe the power polarity shown on the connector. See the picture to the left for the connector
Camera
body
polarity configuration.
Step 1.
Video and power interface cables connect directly to the camera drop cable (see photo above).
NOTE
The camera includes connectors for the following:
Video coax (required): The video drop cable can connect to a video coax extension cable from a
•
Video Recorder or compatible monitor.
12 Vdc power input (optional if PoE powered, required if not): Refer to the Specifications section
•
of this document for voltage and current requirements. ALWAYS COMPLY WITH THE POLARITY
Drop
SHOWN IN THE PICTURE ABOVE.
cable
1. Route a video coax extension cable from a compatible video recorder (DVR) to where the camera
will be installed.
Switch button usage
HD video BNC connector
Camera drop cable connectors
Route interface cables to the camera
When selecting a mounting location for the camera
• Make sure that there are no reflective surfaces near to the camera lens. White light from the camera
may bounce back onto the lens causing reflections.
• Determine how wiring is routed into the camera. The cable can be routed through an access hole in the
mounting plate, or through the cable in the mounting base.
Cap for switch cable
Switch
button
12 Vdc power in
section.
Cleaning
