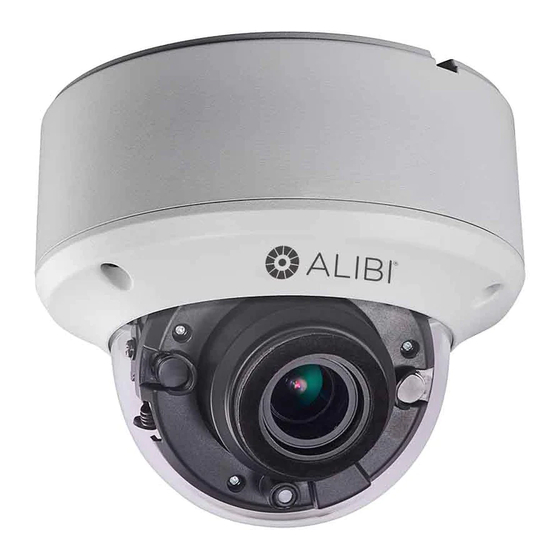

ALI-TS2118VR 8MP
200 ft IR Vandalproof Outdoor Dome
Camera Quick Installation Guide
The ALIBI ALI-TS2118VR dome camera include includes a 4 -in-1 switchable video output (TVI/AHD/CVI/
CVBS) with an 8.29 MP sensor. This camera features:
8.29 Megapixel (3840 x 2160 pixels) high-performance CMOS sensor
•
Switchable video output for TVI, AHD, CVI, or CVBS
•
2.7 mm – 13.5 mm motorized varifocal lens with horizontal Field of View 108.1° to 45.6°
•
Auto-focus
•
Low light 0.01 lux color illumination
•
EXIR 2.0 with up to 200 ft Smart IR
•
OSD menu (up-the-coax OSD control),
•
105 dB Digital Wide Dynamic Range (DWDR), DNR
•
IP67 weatherproof rating
•
Requires compatible recorder
•
Optional installation with wall mount bracket ALI-AB2 and flange adapter ALI-AF3
•

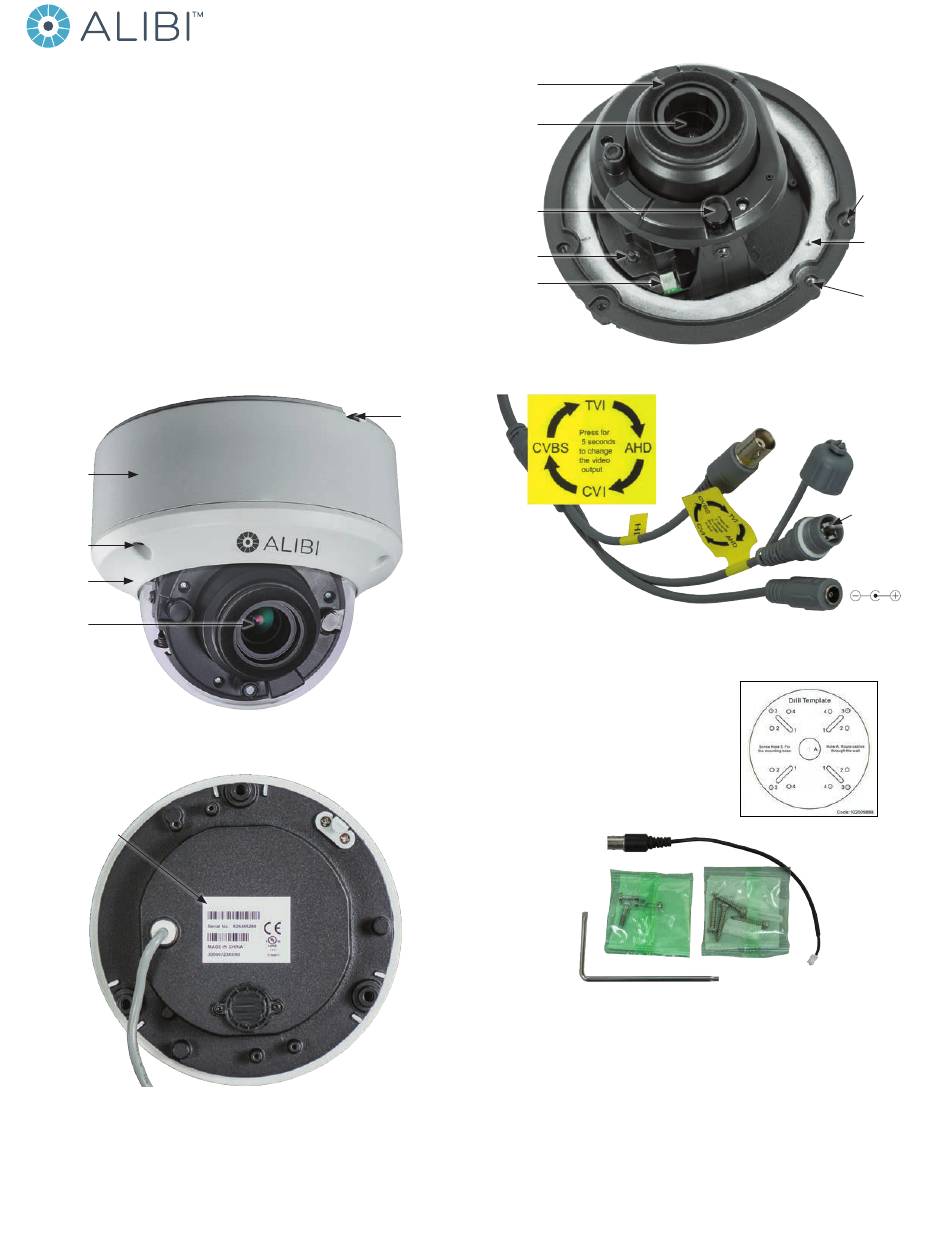

Camera
back
box
Captive
screw (3)
Camera
dome
assembly
Lens
Product
label
Drop cable
Camera module back
www.observint.com
1
TVI/AHD/CVI/CVBS
Cable
channel
Foam
ring
seal
Lens
IR LED (2)
OSD
joystick
CVBS video
test port
Camera module internal features
* Press and hold switch button for 5 seconds to change the video format. See cable tag.
Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting hardware
•
Video test adapter cable
•
Security L-wrench
•
Drill template
•
This instruction guide
•
Tools you need
To install the camera, you will need:
12 Vdc power source. See Specifications for requirements.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Caulk or other sealant for outdoor installation
•
Video and power extension cable
•
Step 1.
Install the camera
The camera includes hardware to install it directly to a mounting surface. You can also easily install the
camera onto a single- or double-gang electrical box. Camera drop cables can be routed through the
Hole for
camera to
back box
screws (3)
Hole for
dome
tether
screw
Hole for
dome
assembly
screws (3)
HD video BNC connector
Cap for
switch
button
Switch*
button
12 Vdc power in
ALI-TS2118VR_CQ
190708
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALIBI ALI-TS2118VR
Summary of Contents for ALIBI ALI-TS2118VR
- Page 1 200 ft IR Vandalproof Outdoor Dome seal Camera Quick Installation Guide Lens Hole for The ALIBI ALI-TS2118VR dome camera include includes a 4 -in-1 switchable video output (TVI/AHD/CVI/ camera to CVBS) with an 8.29 MP sensor. This camera features: back box screws (3) 8.29 Megapixel (3840 x 2160 pixels) high-performance CMOS sensor...
- Page 2 You can open the OSD menu system using the built-in joystick on the camera, from either the recorder Live View display or through remote login to the ALIBI recorder. Camera drop cable connectors are not waterproof. Seal if needed.
- Page 3 In the PTZ Control panel pop-up window, click the Menu icon on the Configuration line. For the ALIBI Recorder: Navigation and settings in the OSD are made through direction keys and the Iris + and Iris - buttons in the recorder PTZ Control panel. See below.
-
Page 4: Video Format
VIDEO FORMAT keys and the Iris + and Iris - buttons in the ALIBI recorder PTZ control panel. See above. You can set frame rate as 8 MP @ 12.5 fps, 8 MP @ 15 fps, 5 MP @ 20 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, The function of the directional keys and Iris buttons are defined in the table below. -
Page 5: Factory Default
CONTRAST: This feature enhances the difference in color and light between parts of an image. You can set the CONTRAST value from 1 to 9. SHARPNESS: Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 9. -
Page 6: Cleaning Instructions
Functions Brightness, Sharpness, DNR, Mirror, Smart IR, HLC Interface Video Output 1 HD analog output (75Ω / BNC) Switch button TVI / AHD / CVI / CVBS General Operating Conditions -40 °F ~ 140 °F (-40 °C ~ 60 °C ), Humidity 90% or less (non-condensing) Power Supply 9.6 Vdc ~ 14.4 Vdc;...
