ALI-TP2018VR 8MP HD-TVI
Outdoor Dome Camera
Quick Installation Guide
The ALIBI ALI-TP2018VR dome camera include a new generation sensor with high sensitivity and advanced
circuit design technology. They feature high resolution, low image distortion and low noise features which
makes them suitable for surveillance and image processing systems. Features include:
8 megapixel Progressive Scan CMOS sensor
HD-TVI HD output, up to 2 MP resolution
2.8 mm lens with 102˚ horizontal field of view
True Day/Night, DNR, Smart IR, True WDR up to 120 dB
Up-the-coax OSD menu
130 ft IR
IP67 weatherproof, IK10 impact proof
Requires Alibi 8 MP HD-TVI compatible recorder (HD-TVI DVR) such as the ALI-QVR5116H
Flange adaptor for pendant mounting (ALI-AF4) and junction box mounting (ALI-AJ4) are available

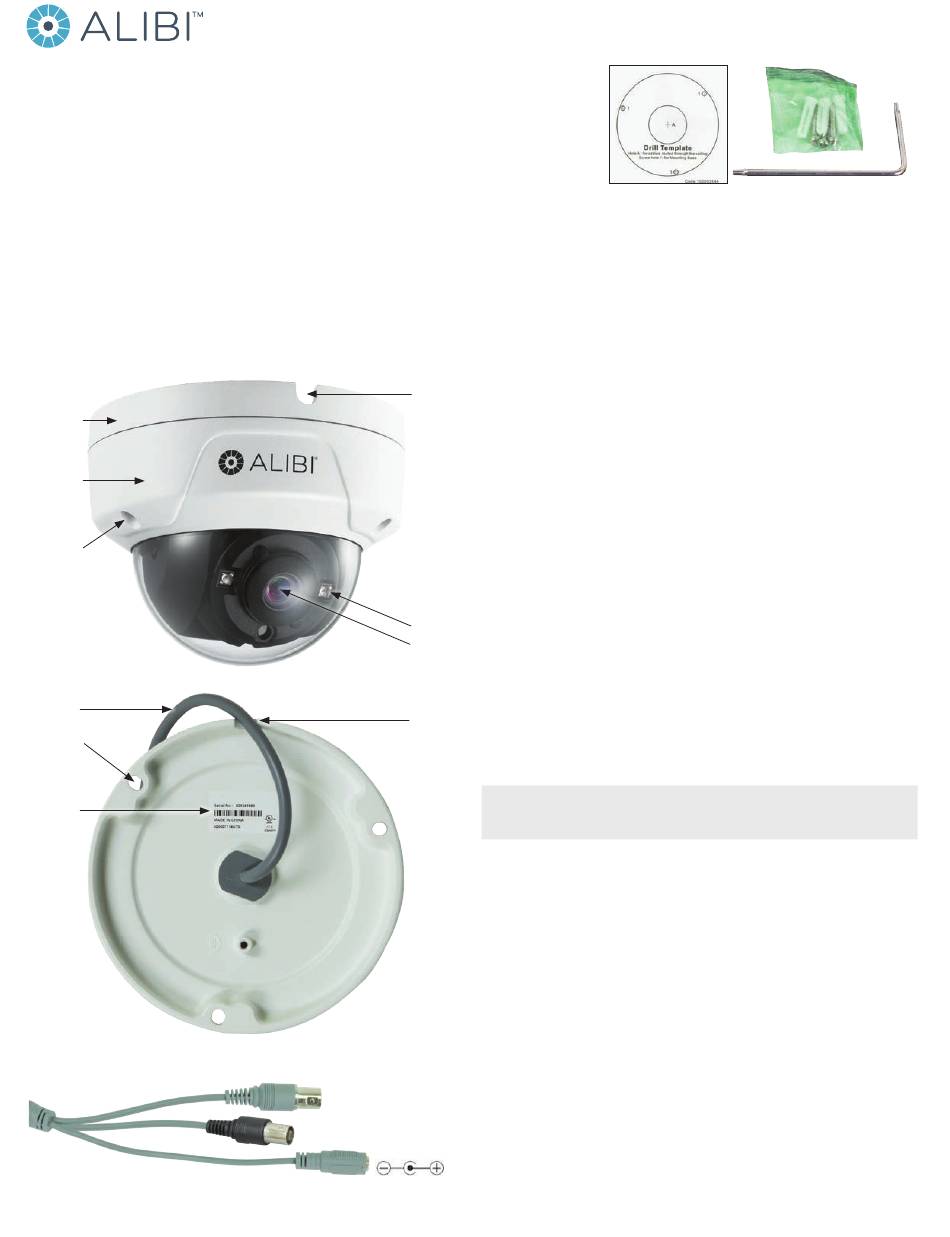

Mounting
base
Dome
assembly
Dome
assembly
screw (3)
Drop cable
Hole for
mounting
screw (3)
Product
label
Camera mounting surface
Camera drop cable connectors
www.observint.com
1
Cable
guide
IR LED
Lens
Cable
guide
HD-TVI video BNC connector
CVBS video BNC connector
Power connector
What's in the box
Camera assembly
Mounting hardware
Security L-wrench
This instruction guide
Drill template
Tools you need
To install the camera, you will need:
12 Vdc power source. See Specifications for requirements.
Tools and additional fasteners (may be required) for mounting the camera
Video and power extension cable
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
IR Reflection Prevention: Avoid mounting the camera near reflective surfaces. The IR light from
the camera can reflect back into the lens. Do not remove the plastic cover until the cover is installation
is complete.
Check the specification of the products for the installation environment.
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Video BNC connector: For transmission of the HD-TVI video signal across a coax (75 Ω)
extension cable.
Power connector: When applying Vdc power, observe the power polarity. See the drop cable
photo above for the connector polarity configuration.
Step 1.
Mounting the camera
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
This camera can be installed using a pendant mounting bracket with flange adapter or junction
NOTE
box. Please refer to the instructions provided with those accessories for special considerations when
installing the camera with them.
1.
Unscrew the three (3) dome assembly screws, and then separate the dome assembly from the
mounting base. The dome is tethered to the base with a strap. NOTE: To keep the lens assembly
clean, do not remove the plastic protective packaging applied to the lens at this time.
2.
Using the mounting template or the mounting base, mark the holes for the camera mounting
screws.
3.
Drill holes for the mounting screws into the mounting surface. The mounting screws and wall
inserts provided is appropriate for most surfaces. However, depending on the surface material and
strength, more appropriate fasteners may be required.
4.
Drill a 3/4" hole through the mounting surface for the drop cable, if necessary.
5.
If using wall inserts for the mounting screws, install the wall inserts at this time.
6.
Attach the mounting base the surface using the appropriate fasteners. If the camera drop cable will
route through a cable guide, lay the cable in the guide before tightening the mounting screws.
7.
If the drop cable will route through a hole in the mounting surface, route the cable through the hole,
and then reassemble the camera on the mounting base. Seal the hole adequately (with caulk or
other sealant) to block moisture and other contaminants.
8.
Connect the camera drop cable to video and power extension cables.
section.
Cleaning
ALI-TP2018VR_CQ
180409
