ALI-TP2013VR 3MP HD-TVI
Vandalproof Outdoor Dome Camera
Quick Installation Guide
The ALIBI ALI-TP2013VR dome camera include a high resolution CMOS array sensor with and advanced
circuit design technology. The camera features high resolution, low image distortion and low noise features
which makes them suitable for surveillance and image processing systems. Features include:
3 MP high performance CMOS array with resolution up to 2052 x 1536 pixels
•
Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
•
2.8 mm − 12 mm motorized lens
•
OSD menu
•
SMART IR mode with 130 ft range
•
IP66 weatherproof, IK10 vandalproof enclosure
•
Compatible with Alibi QVR4000, QVR5000 and QVR7000 series recorders
•
Optional installation with wall mount bracket ALI-AB2 and flange adapter ALI-AF3
•

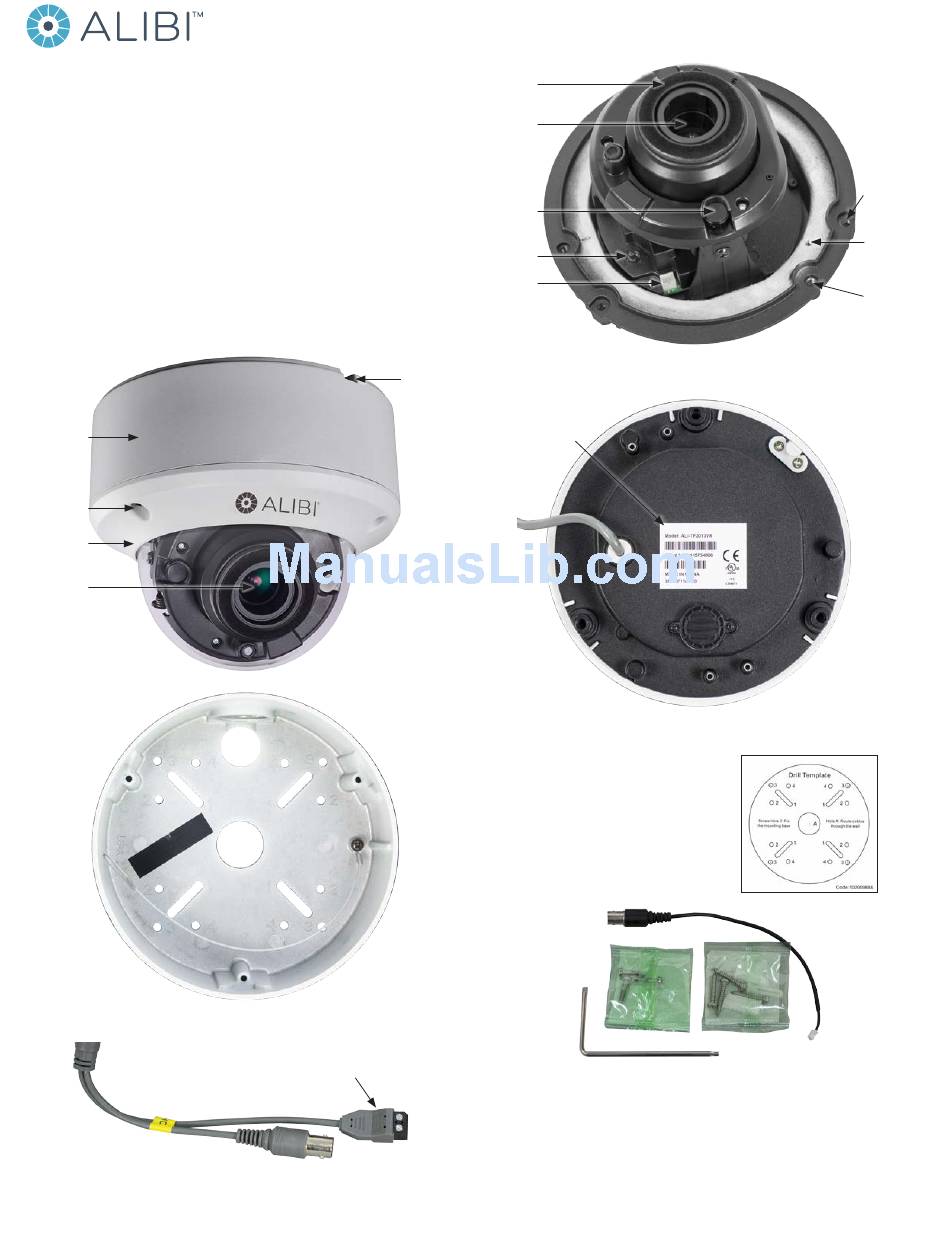

Camera
back
box
Captive
screw (3)
Camera
dome
assembly
Lens
Back Box internal features
Camera drop cable connectors
www.observint.com
1
Cable
channel
Terminal polarity
indicators
Power Connector
(12 Vdc or 24 Vac)
HD-TVI video
BNC connector
Foam
ring
seal
Lens
IR LED (2)
OSD
joystick
CVBS video
test port
Camera module internal features
Product
label
Drop cable
Camera module back
What's in the box
Camera assembly
•
Mounting hardware
•
Video test adapter cable
•
Security L-wrench
•
Drill template
•
This instruction guide
•
Tools you need
To install the camera, you will need:
12 Vdc or 24 Vac power source. See Specifications for wattage requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Video and power extension cable
•
Hole for
camera to
back box
screws (3)
Hole for
dome
tether
screw
Hole for
dome
assembly
screws (3)
ALI-TP2013VR_CQ
170710
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALIBI ALI-TP2013VR
Summary of Contents for ALIBI ALI-TP2013VR
-
Page 1: Quick Installation Guide
Quick Installation Guide Lens Hole for The ALIBI ALI-TP2013VR dome camera include a high resolution CMOS array sensor with and advanced camera to circuit design technology. The camera features high resolution, low image distortion and low noise features back box screws (3) which makes them suitable for surveillance and image processing systems. -
Page 2: Step 1. Install The Camera
Step 1. Install the camera NOTE Camera drop cable connectors are not waterproof. Seal if needed. The camera includes hardware to install it directly to a mounting surface. You can also easily install the camera onto a single- or double-gang electrical box. Camera drop cables can be routed through the Connect the camera drop cables to the video and power extension cables, and then secure the conduit port on the side of the camera back box, through the mounting surface or into an electrical box, if camera module to the back box using the security L-wrench provided. - Page 3 You can open the OSD menu system using the built-in joystick on the camera, from either the QVR Live View display or through remote login to the ALIBI recorder. Opening the OSD Menu using the joystick The OSD joystick is located on the camera module near the CVBS video test connector (see page 1). The joystick can be rocked up (toward the camera body - see below), down (away from the camera body), left and right, and can be pressed in (down toward the back box).
- Page 4 OSD menu navigation FORMAT menu For the ALIBI Recorder: Navigation and settings in the OSD are made through direction keys and the Iris Move the cursor to FORMAT, and click the menu button to enter the FORMAT sub-menu to select the + and Iris - buttons in the ALIBI QVR PTZ Control panel.
-
Page 5: Cleaning Instructions
HD Video Output 1 Analog HD output S/N Ratio > 62 dB Menu Supported D/N Mode Color / BW / SMART White Balance ATW / MWB INFRARED: Select this option to turn on/off the IR LED in response to the light level in the field —...
