ALIBI ALI-TP1135R Quick Installation Manual

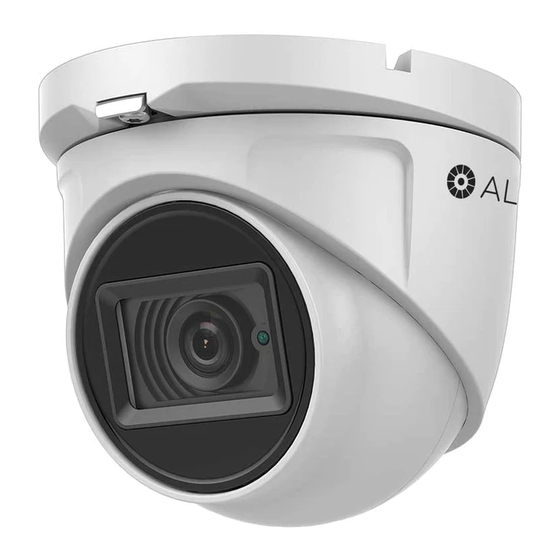

ALI-TP1135R 5 MP HD-TVI
Outdoor Turret Camera
Quick Installation Guide
The ALIBI ALI-TP1135R HD-TVI turret camera features:
5.0 megapixel progressive scan CMOS
•
2560 x 1944 resolution
•
2.4 mm fixed lens offers horizontal FOV of 110°
•
0.01 Lux, 0 Lux with IR
•
Smart IR up to 65 ft IR distance
•
Up the Coax (UTC) for easy OSD control
•
IP67 weather-rated with -40°F – 140°F operating temperatures
•
Compatible with ALI-AA1 outdoor pole mount adapter, ALI-AA2 outdoor corner mount adapter for
•
ALI-AB1 and ALI-AB2, ALI-AB1, ALI-AB2, ALI-AB3 ceiling pendant mount bracket, ALI-AF4 flange
adapter, ALI-AJ1 round junction box, ALI-AJ6 mini junction box
Lens
Enclosure
retention
tab (3)
Hole for
mounting
screw (3)

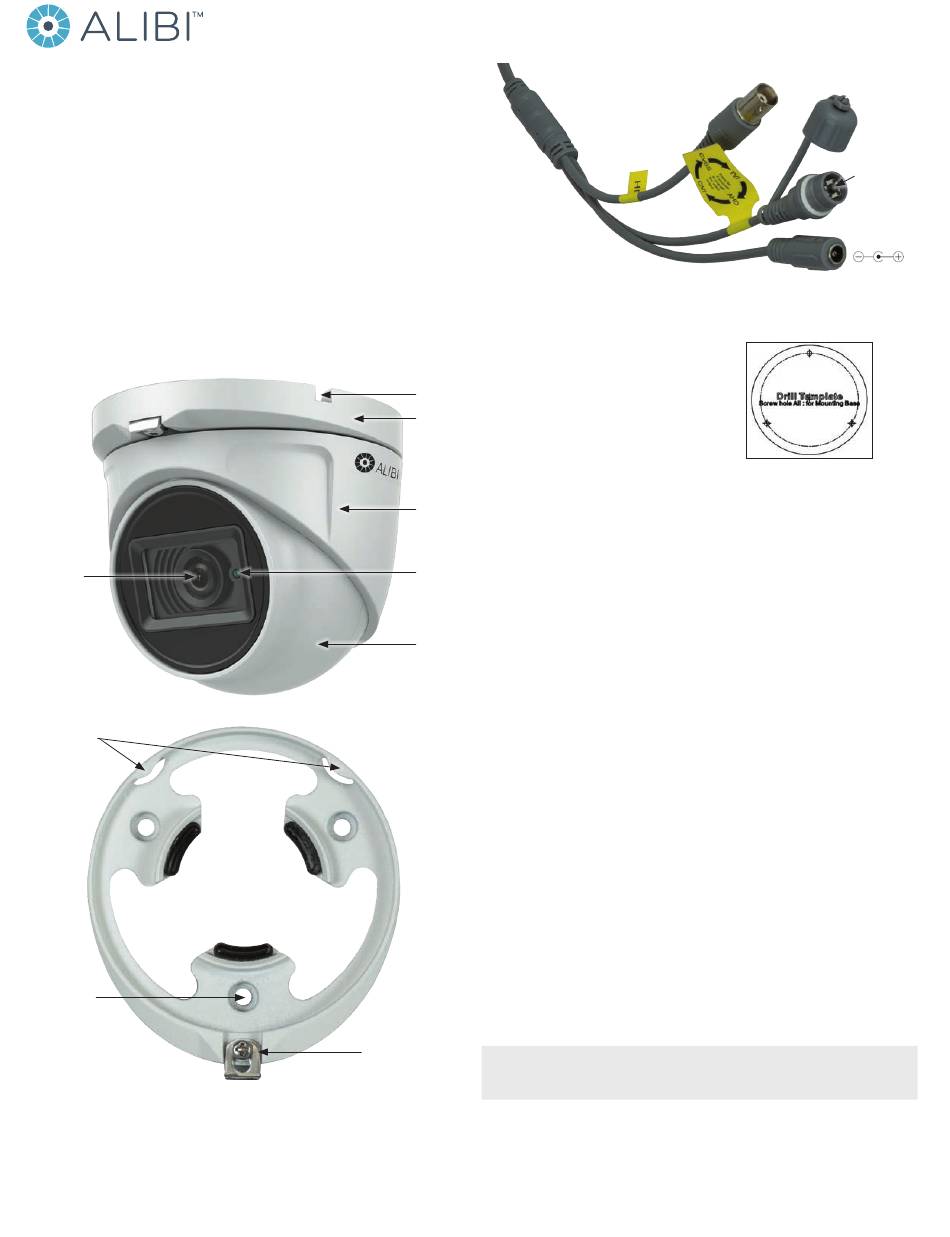

Mounting plate features (camera mounting surface)
www.observint.com
1
What's in the box
Camera assembly
•
Cable Mounting hardware
•
channel
This instruction guide
•
Mounting
Drill template
base •
Tools you need
To install the camera, you will need:
Enclosure
12 Vdc power source. See Specifications for wattage requirement.
•
Phillips type screwdriver
•
Tools and additional fasteners (may be required) for mounting the camera
•
IR LED
Video and power extension cable
•
Caulk or other exterior sealant
•
Camera
Installation
module,
turret
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand three (3) times the weight of the
•
camera and brackets used.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the TVI / AHD / CVI video signal across a coax (75 Ω)
—
extension cable.
Power connector: When applying 12 Vdc power, observe the power polarity. See the drop cable
—
photo above for the connector polarity configuration.
Step 1. Mounting the camera
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
Tab, and
hold down
screw
NOTE
1. Determine and acquire the best kind of fasteners for securing the camera to the mounting surface.
The mounting hardware provided with the camera is appropriate for many surfaces.
2. To release the enclosre from the camera, loosen the retention tab hold down screw, and then slide
the tab away from the enclosre. It isn't necessary to remove the screw. See below.
HD video BNC connector
12 Vdc power in
* Switch button: The switch button is reserved for future use.
Camera drop cable connectors
This camera can be installed using a pendant mounting bracket or junction box. Please refer to the
instructions provided with those accessories for special considerations when installing the camera
with them.
Cap for
switch
button
Switch
button*
section.
Cleaning
ALI-TP1135R_CQ
190903
