ALI-TP1013R HD-TVI 3MP Mini-Turret
Camera Quick Installation Guide
The ALIBI ALI-TP1013R turret camera include a new generation sensor with high sensitivity and advanced
circuit design technology. They feature high resolution, low image distortion and low noise features which
makes them suitable for surveillance and image processing systems.
Features
3 Megapixel high-performance CMOS
HD-TVI HD output, up to 3MP resolution
2.8 mm lens
True Day/Night
Up-the-coax OSD menu, DNR, Smart IR
True WDR, up to 120 dB, IR cut filter with auto switch
EXIR technology, up to 65 ft IR distance
IP66 weatherproof
Adaptors for pendant mounting (ALI-AF1) and junction box mounting (ALI-AJ6) are available

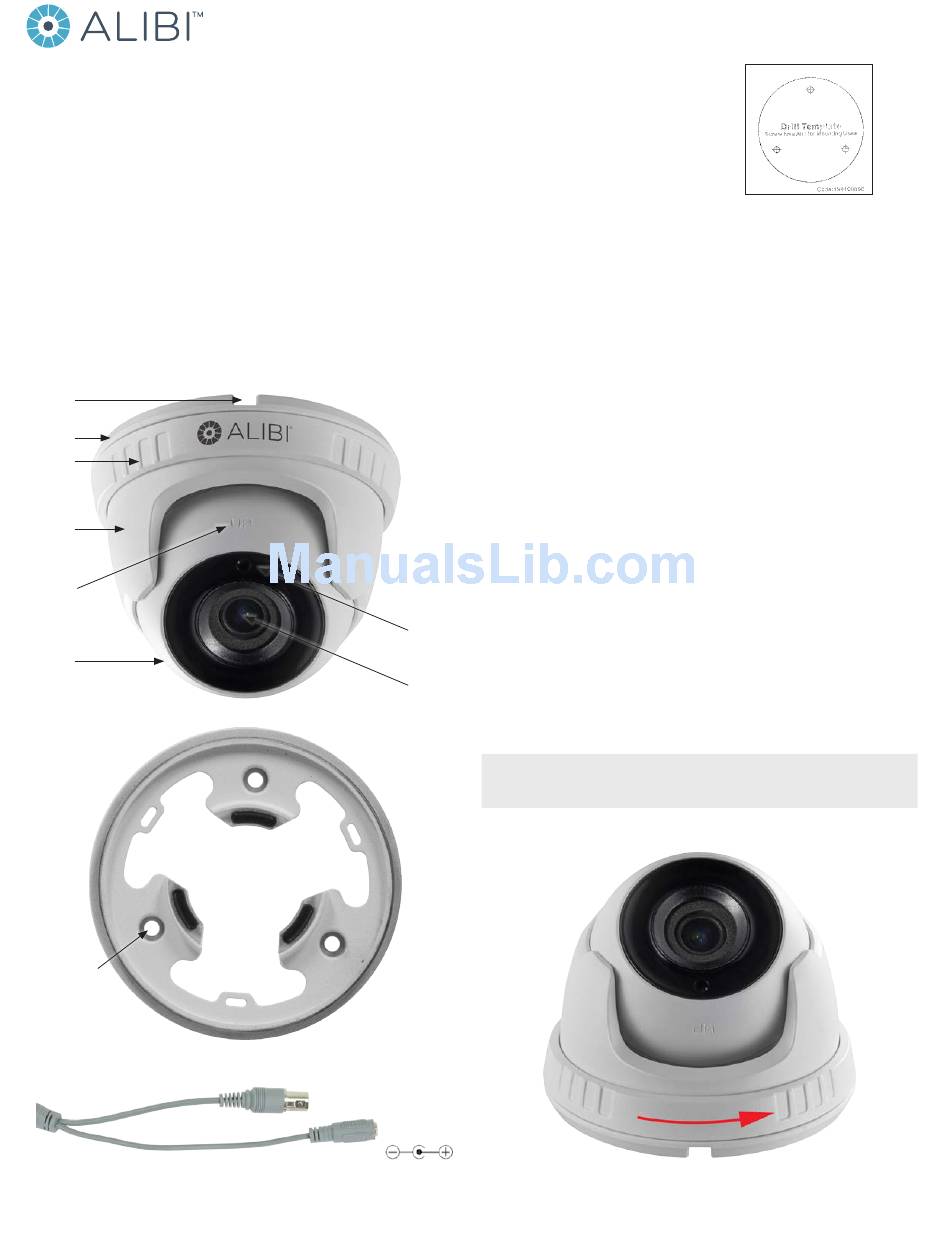

Cable
guide
Mounting
base
Bezel
Enclosure
Orientation
mark (UP)
Camera
module
Hole for
mounting
screw (3)
Camera drop cable connectors
www.observint.com
1
Mounting base
HD-TVI video
BNC connector
Power
Connector
What's in the box
Camera assembly
Mounting hardware
This instruction guide
Drill template
Tools you need
To install the camera, you will need:
12 Vdc power source. See Specifications for wattage requirement.
Tools and additional fasteners (may be required) for mounting the camera
Video and power extension cable
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
Check the specification of the products for the installation environment.
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Video BNC connector: For transmission of the HD-TVI video signal across a coax (75 Ω)
extension cable.
Power connector: When applying Vdc power, observe the power polarity. See the drop cable
photo above for the connector polarity configuration.
IR LED
Step 1.
Mounting the camera
Lens
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
This camera can be installed using a pendant mounting bracket with adapter ALI-AF1 or junction
NOTE
box ALI-AJ6. Please refer to the instructions provided with those accessories for special considerations
when installing the camera with them.
1.
Unscrew the bezel from the mounting base, and then lift it off of the camera.
section.
Cleaning
ALI-TP1013R_CQ
160919
