Card Specifications

Specification Rating
Operating Conditions 32°F - 120°F (0°C - 49°C)
Up to 93% relative humidity at 90°F (32°C), non-condensing.
Electrical Specifications
AC Input Specifications:
Note: Maximum circuit breaker is 20 A.
DC Output Specifications: 29 V @ 9 A
Up to 5 A normal standby (AUX, "Card Power" and Backplane Power). Any non-alarm current must be subtracted from 9 A
alarm current.
DC Input
(battery standby)
Internal Battery Charges up to 50 Ah (ULC-S527) or 115 Ah (UL-864 Listing) sealed lead-acid batteries connected to the power supply.
Charger
High Voltage Output: 29 V
Output Current Limit: 3.3 A
IDNAC SLCs 29.5 V maximum @ 3 A per circuit; 4,000 bits/second
Earth Fault
Earth fault detection is 10k minimum to any circuit.
SNAC wiring fault Short circuit detection is 5k ohm maximum for SNAC. Open circuit detection is 15k.
Detection
Battery Standby (sealed Battery standby requirements are dependent on system configuration. The 4100ES can support up to 115 Ah batteries
lead-acid batteries)
(UL) and 50 Ah batteries (ULC). With 115 Ah batteries, a system could be configured to draw 3.8 A for 24 hours, followed by
15 minutes at 9.375 A. Or a configuration with 0.375 A for 24 hours and 5 minutes alarm at 9.375 would require 12.7 Ah
batteries or larger. Refer to Sales Engineering Calculation Tool for specific configurations.
page 2
4100ES Extended Power Supply Installation Instructions

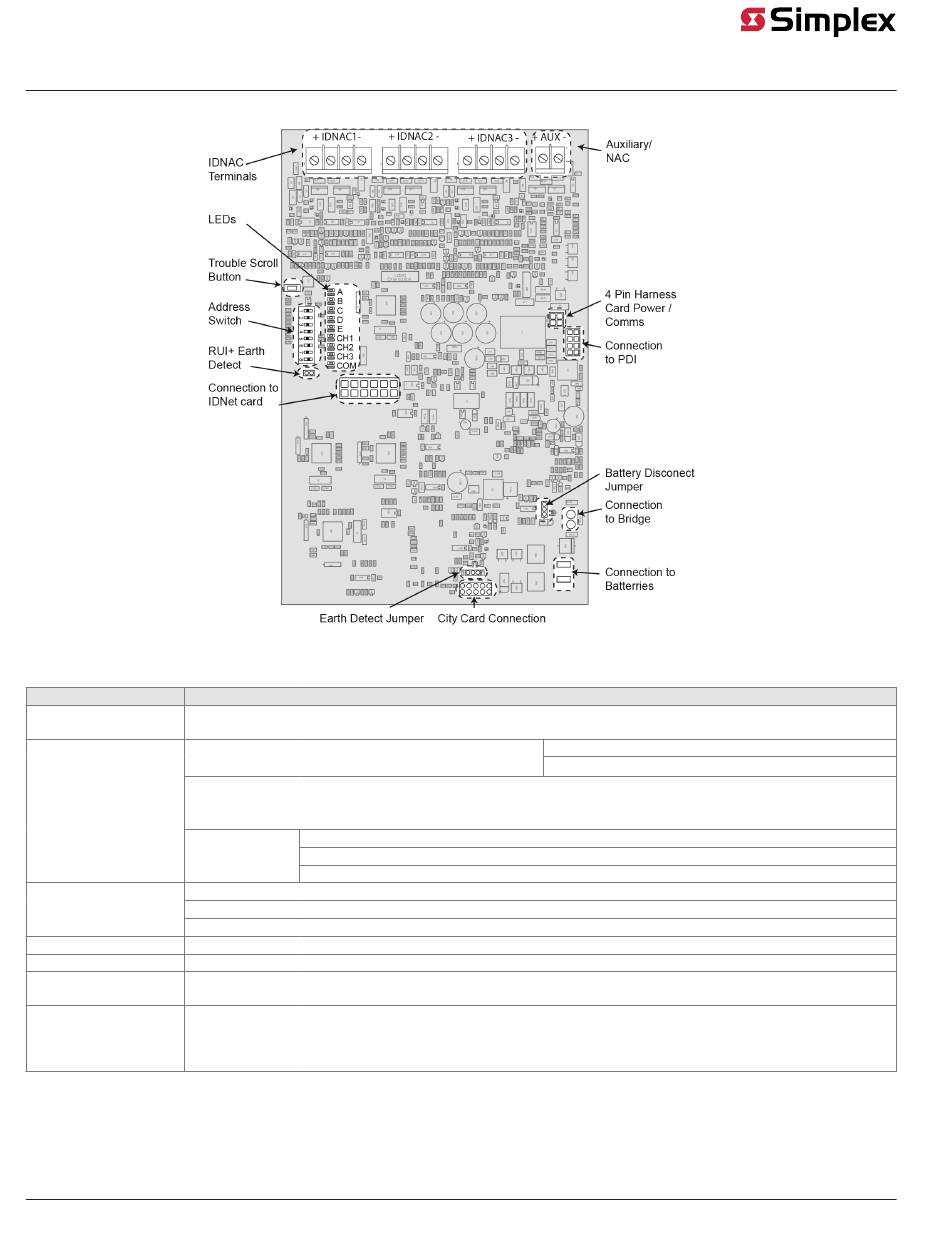

Figure 2: EPS Card Layout
Table 1: Card Specifications
Standby – No alarms, SLCs normal: 135 mA / Alarm - 12 A @ 24 V
With IDNet2: 235 mA
For each IDNet/IDNAC device: 0.8 mA
120 V, 50 Hz/60 Hz, 4.6 A
220 V/230 V/240 V, 50 Hz/60 Hz, 2.3 A
579-1015 Rev U
