Parts

Names and functions of printer parts are as follows.

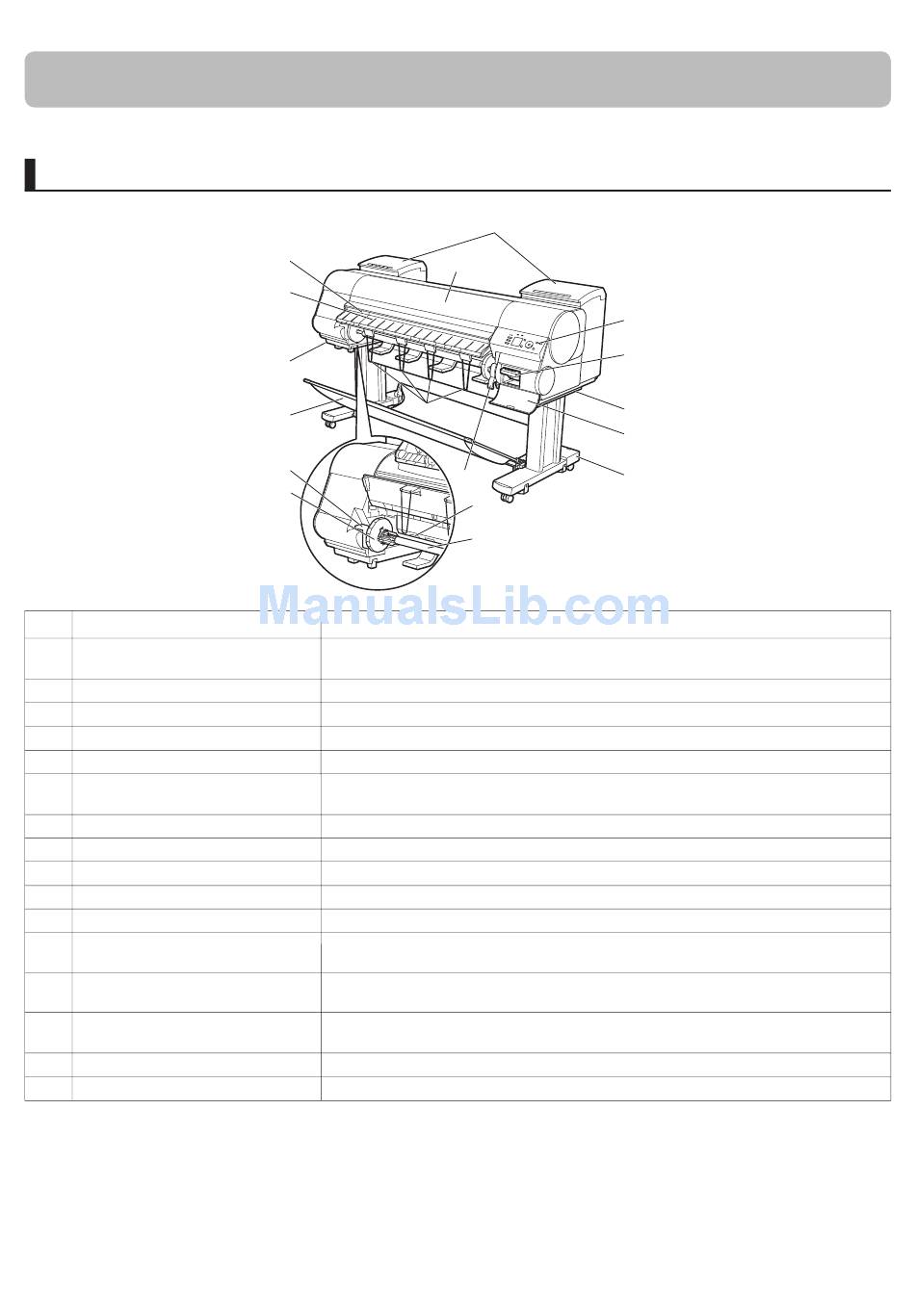

Front
Name
a Top Cover
b Cutter Groove
c Ejection Guide
d Roll Holder Slot
e Roll Holder
f Ejection Support
g Output Stacker
h Paper Feed Slot
i Holder Stopper
j Ink Tank Cover
k Control Panel
l Release Lever
m Maintenance Cartridge
n Carrying Handles
o Maintenance Cartridge Cover
p Stand
b
c
n
g
f
d
i
Open this cover to install the Printhead , load paper, and remove any jammed paper
from inside the printer as needed.
Paper is cut (using the cutter or manually with scissors) over this groove.
Guides printed documents as they are ejected. Raise the guide when loading a roll.
Slide the Roll Holder into this slot.
Load the roll on this holder.
Prevents printed documents from winding around the Roll Holder or being drawn
into the Paper Feed Slot .
A cloth tray that catches ejected documents.
When loading a roll, insert the edge of the roll paper here.
Secure rolls on the Roll Holder with this part.
Open this cover to replace an Ink Tank .
Use this panel to operate the printer and check the printer status.
Releases the Paper Retainer . Lift this lever toward the front of the printer when
loading paper.
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the
cartridge when it is full.)
When carrying the printer, have four people hold it by these handles under both
sides.
Open this cover to replace the Maintenance Cartridge .
A stand that holds the printer. Equipped with casters to facilitate moving it.
j
a
l
h
e
