PZ254E
P-753 Positioners
User Manual
Version: 1.1.0
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws
Date: 11.05.2022
This document describes the following products:

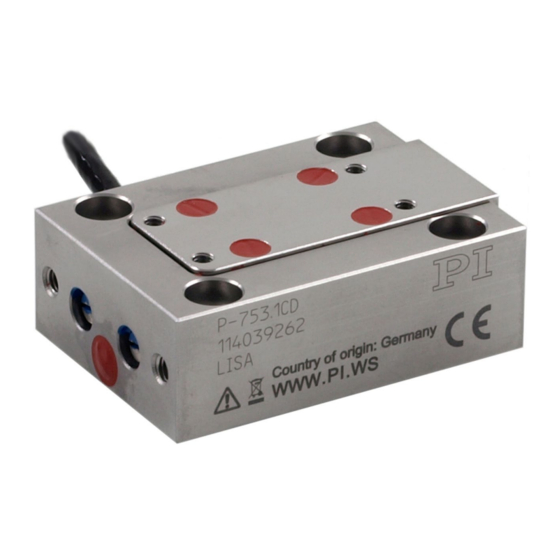

P-753.11C / P-753.1CD
LISA high dynamics piezo nanopositioner,
15 µm, direct position measuring, capacitive
sensor
P-753.21C / P-753.2CD
LISA high dynamics piezo nanopositioner,
30 µm, direct position measuring, capacitive
sensor
P-753.31C / P-753.3CD
LISA high dynamics piezo nanopositioner,
38 µm, direct position measuring, capacitive
sensor
Models:
.11C/.21C/.31C = with LEMO connectors
.1CD/.2CD/.3CD = with D-sub connector
