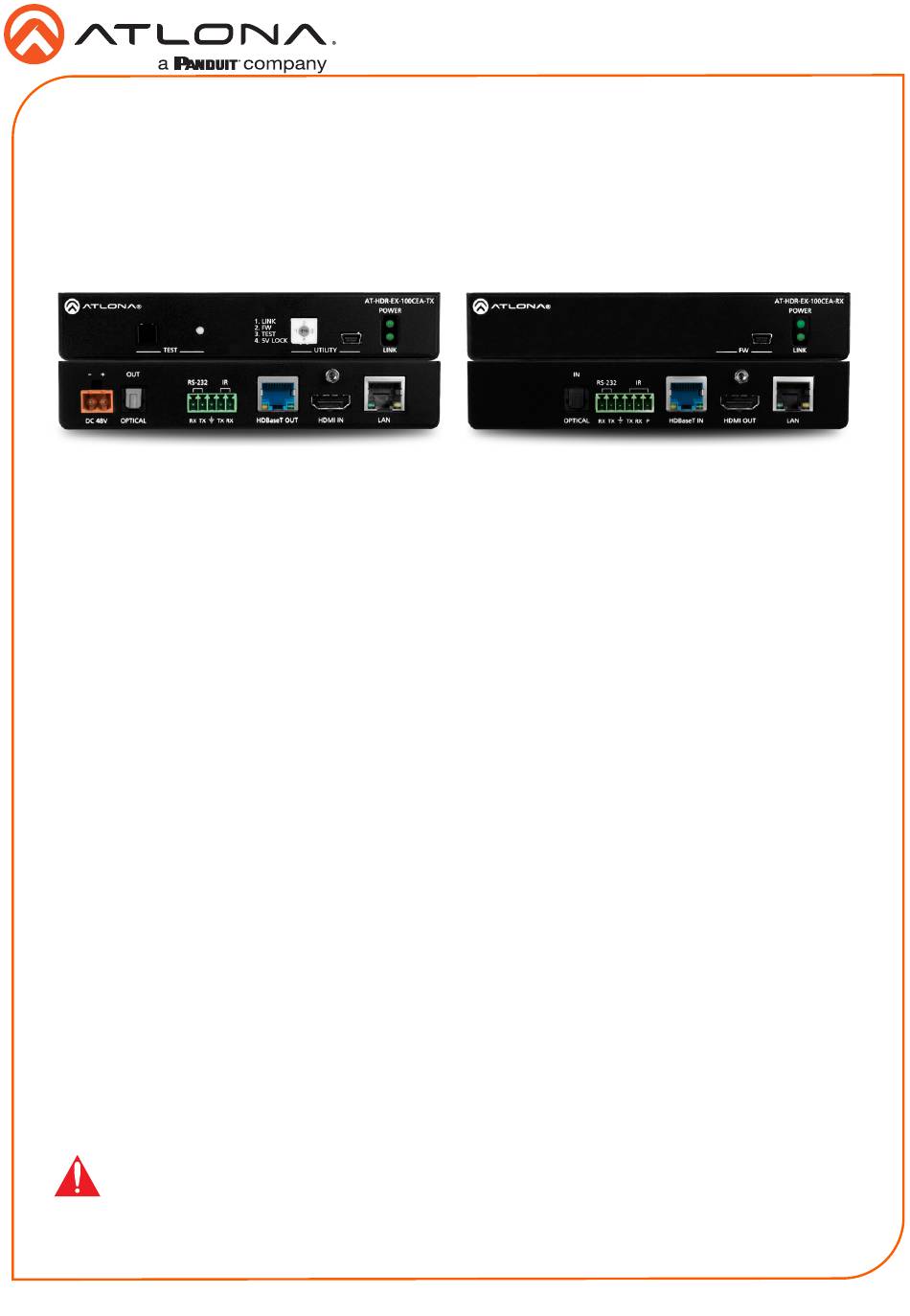

4K HDR HDMI over 100 M HDBaseT™ TX/RX
with Ethernet, Control, PoE, and Return Audio
AT-HDR-EX-100CEA-KIT
The Atlona AT-HDR-EX-100CEA-KIT is an HDBaseT transmitter/receiver kit for high dynamic
range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with
4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-100CEA-KIT
provides transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control
signals up to 330 feet (100 meters) over CAT6a/7 cable. This extender kit features visually
lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over
HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver
through Power over Ethernet (PoE). The HDR-EX-100CEA-KIT can transmit digital audio from a
television back to an AV receiver, via a dedicated audio pathway.
The HDR-EX-100CEA-KIT is ideal for residential and commercial applications with the latest
as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video
resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification,
plus the ability to pass metadata for HDR content. The HDR-EX-100CEA-KIT includes Atlona's
award-winning 10 year limited product warranty and customer support services, so that
integrators can specify, purchase, and install with confidence.
Package Contents
1 x AT-HDR-EX-100CEA-TX
1 x AT-HDR-EX-100CEA-RX
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IR emitter
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-100CEA-KIT for the
latest firmware updates and Installation Guide.
1 x 5-pin captive screw connector
1 x 6-pin captive screw connector
1 x Installation Guide
1
Installation Guide
AT-HDR-EX-100CEA-KIT
Advertisement
Table of Contents
Related Manuals for Panduit Atlona AT-HDR-EX-100CEA-KIT
Summary of Contents for Panduit Atlona AT-HDR-EX-100CEA-KIT
- Page 1 Ethernet, Control, PoE, and Return Audio AT-HDR-EX-100CEA-KIT The Atlona AT-HDR-EX-100CEA-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-100CEA-KIT provides transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable.
-
Page 2: Panel Descriptions
Installation Guide AT-HDR-EX-100CEA-KIT Panel Descriptions Front Front AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-RX AT-HDR-EX-100CEA-RX POWER POWER POWER POWER 1. LINK 1. LINK 2. FW 2. FW AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-RX AT-HDR-EX-100CEA-RX 3. TEST 3. TEST 4. 5V LOCK 4. 5V LOCK POWER POWER POWER POWER TEST TEST... - Page 3 Installation Guide AT-HDR-EX-100CEA-KIT RS-232 / IR Wiring The AT-HDR-EX-100CE-KIT provides both an RS-232 and IR port. RS-232 pass-through is supported, allowing a control system to be connected to either the transmitter or receiver. Connect the included IR emitter to the transmitter and an IR extender (not included) to the receiver.
-
Page 4: Mounting Instructions
Installation Guide AT-HDR-EX-100CEA-KIT Mounting Instructions The AT-HDR-EX-100CEA-KIT includes two mounting brackets and four mounting screws each, which can be used to attach the units to any flat surface. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket. -
Page 5: Installation
Installation Guide AT-HDR-EX-100CEA-KIT Installation Connect a UHD/HD source to the HDMI IN port on the transmitter. Connect a UHD/HD display to the HDMI OUT port on the receiver. Connect an Ethernet cable, from the HDBaseT OUT port on the transmitter, to the HDBaseT IN port on the receiver. -
Page 6: Connection Diagram
Installation Guide AT-HDR-EX-100CEA-KIT Connection Diagram Automation Control System UHD Display CT OR RE SET 48 V AT-JUNO-451 O -4 AT -J AT-HDR-EX-100CEA-RX -2 32 IC AL O PT H DM -R X 10 0C I IN -E X- H DM -H DR W ER AT-HDR-EX-100CEA-TX... -
Page 7: Led Indicators
Installation Guide AT-HDR-EX-100CEA-KIT LED Indicators The POWER and LINK LED indicator on the transmitter and receiver unit provides basic information on the current status of the AT-HDR-EX-100CEA-KIT. The information in the table below applies to both the transmitter and receiver unit. POWER Description Solid green... - Page 8 Installation Guide AT-HDR-EX-100CEA-KIT Testing HDBaseT Signal Integrity The AT-HDR-EX-100CEA-KIT has the ability to test the HDBaseT signal integrity through the front panel. Press and release the TEST button, on the front panel of the transmitter, to begin the test. TEST button AT-HDR-EX-100CEA-TX POWER 1.
- Page 9 Installation Guide AT-HDR-EX-100CEA-KIT Utility Switch The UTILITY port and dial are used for updating firmware, HDBaseT cable testing/debugging, and 5V lock. Use the dial to switch between modes. UTILITY dial AT-HDR-EX-100CEA-TX POWER 1. LINK 2. FW 3. TEST 4. 5V LOCK TEST LINK UTILITY...
- Page 10 Installation Guide AT-HDR-EX-100CEA-KIT Debugging Launch the Analyzer software. Set the UTILITY dial to 3. Connect a mini-USB to USB-A cable from the UTILITY port, on the transmitter, to a computer. Select the COM port and press the Connect button. Click Debug on the menu bar. The debug process will begin and any debug data will be logged in the text box.
-
Page 11: Updating The Firmware
Installation Guide AT-HDR-EX-100CEA-KIT Updating the Firmware Download the firmware file from the Firmware tab located at http://www.atlona.com/AT-HDR- EX-100CEA-KIT. Extract the firmware, from the archive file, to the Windows desktop or other folder. Make sure the included 48 V DC power supply is connected to the transmitter and that an Ethernet cable is connected between the HDBaseT OUT and HDBaseT IN ports on the transmitter and receiver, respectively. - Page 12 Installation Guide AT-HDR-EX-100CEA-KIT Toll free US International atlona.com 877.536.3976 41.43.508.4321 • • © 2019 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.
