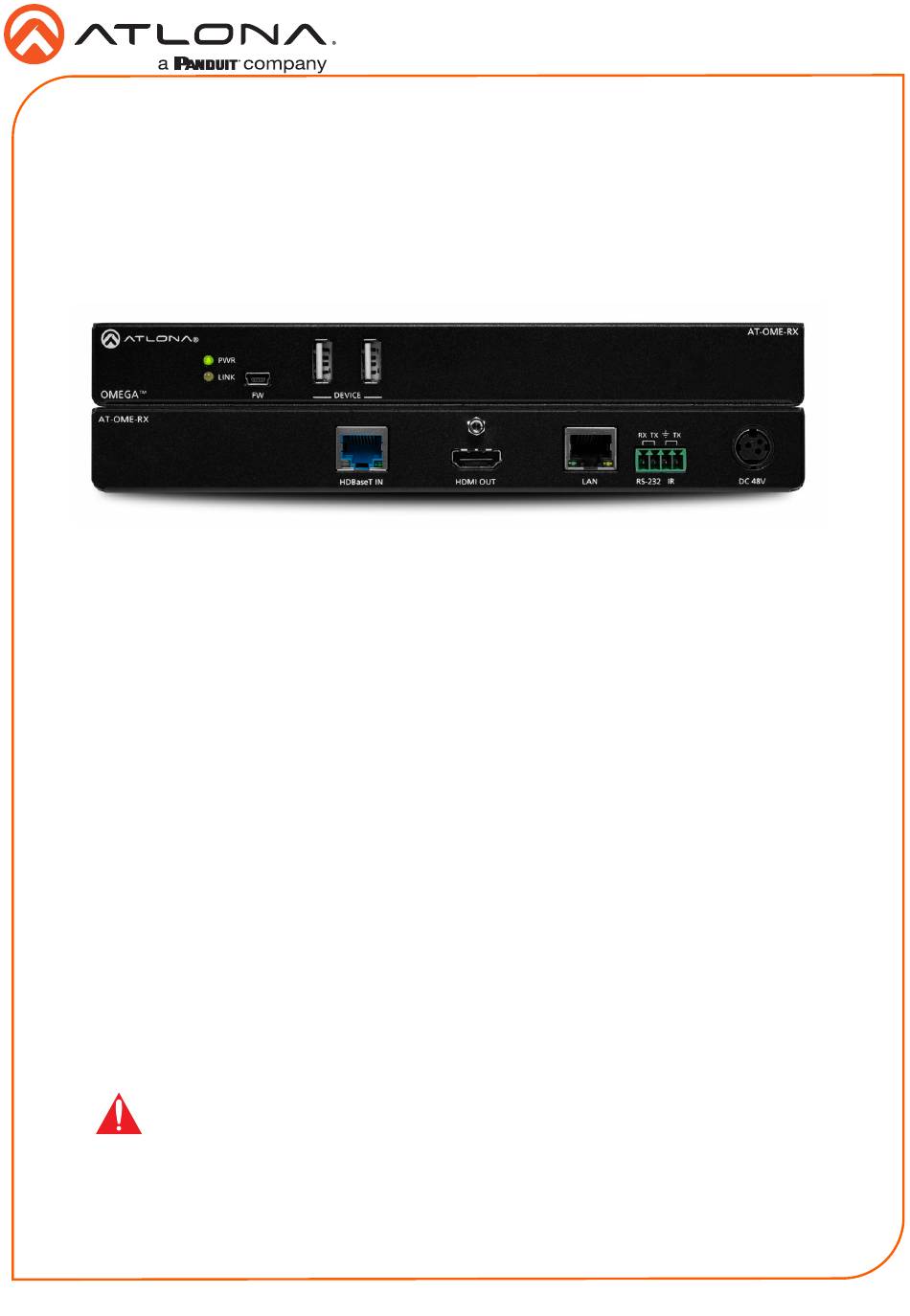

Omega
4K/UHD
™

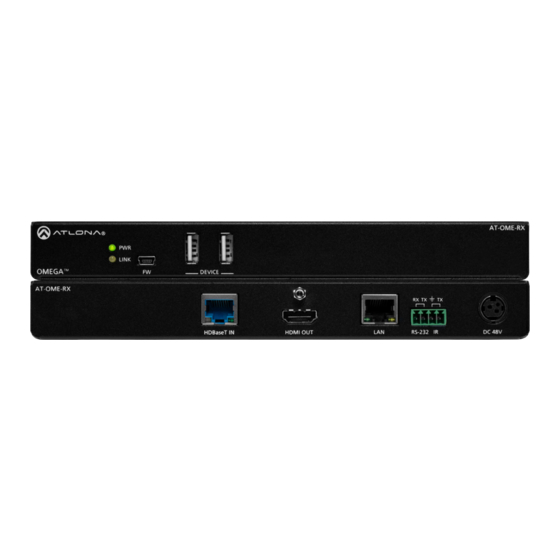

HDMI Over HDBaseT Receiver with USB, Control, and PoE
AT-OME-EX-RX
The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded
audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the
Omega™ Series of integration products for modern AV communications and collaboration,
the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals. With
a matching HDBaseT transmitter, the integrated USB extension is ideal for software video
conferencing and the use of touch or interactive displays. The OME-EX-RX includes two USB
interfaces for devices such as a camera or display. This receiver is ideal for use with Omega
Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EX-
KIT which includes the OME-EX-TX and OME-EX-RX.*
Package Contents
1 x AT-OME-EX-RX
1 x Captive screw connectors, 4-pin
2 x Mounting plates
2 x Mounting screws
1 x 48 V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-RX for the
latest firmware updates and User Manual.
* The AT-OME-EX-RX is not compatible with the AT-UHD-HDVS-300 system for extending USB.
1
Installation Guide
AT-OME-EX-RX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit ATLONA AT-OME-EX-RX
Summary of Contents for Panduit ATLONA AT-OME-EX-RX
- Page 1 HDMI Over HDBaseT Receiver with USB, Control, and PoE AT-OME-EX-RX The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™...
- Page 2 Installation Guide AT-OME-EX-RX AT-OME-EX-RX LINK OMEGA DEVICE Front AT-OME-EX-RX HDBaseT IN HDMI OUT RS-232 IR DC 48V Rear PWR / LINK The PWR LED indicator will glow green when the AT-OME-EX-RX is powered. The LINK LED indicator glows yellow when a solid link is established between the transmitter and receiver.
- Page 3 Installation Guide AT-OME-EX-RX RS-232 and IR The AT-OME-EX-RX provides pass-through transport of RS-232 protocol and/or IR over HDBaseT, which allows communication between a control system and an RS-232 or IR device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16”...
-
Page 4: Installation
Installation Guide AT-OME-EX-RX Installation Connect a UHD/HD display to the HDMI OUT port. Connect up to two USB devices (mouse, keyboard, etc.) to the DEVICE ports. Connect a category cable, from the HDBaseT IN port on the receiver, to the HDBaseT OUT port on the transmitter. -
Page 5: Connection Diagram
Installation Guide AT-OME-EX-RX Connection Diagram Desktop Computer LI N IC E D EV AT-OME-EX-TX Microphone / Speaker E- R A T- IC E D EV LI N AT-OME-EX-RX Display AT-HDVS-CAM... -
Page 6: Led Indicators
Installation Guide AT-OME-EX-RX LED Indicators The PWR and LINK LED indicator provide basic information on the current status of the AT- OME-EX-RX. Description Solid green Unit is powered. Unit is not powered. • Verify that the locking connector is securely fastened to the power receptacle. -
Page 7: Mounting Instructions
Installation Guide AT-OME-EX-RX Mounting Instructions The AT-OME-EX-RX provide two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure. - Page 8 Installation Guide AT-OME-EX-RX Repeat these steps to attach the second mounting bracket to the opposite side of the unit. Mount the unit to a flat surface using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. E - R - O M V I C...
-
Page 9: Updating The Firmware
Installation Guide AT-OME-EX-RX Updating the Firmware Requirements: • AT-OME-EX-RX • Firmware file • Computer running Windows • USB-A to USB mini-B cable NOTE: The update process can take up to five minutes to complete. Disconnect power from the unit. Connect a USB-A to USB mini-B cable between the PC and the FW port on the unit. Connect the included power supply to the unit. - Page 10 Installation Guide AT-OME-EX-RX Notes...
- Page 11 Installation Guide AT-OME-EX-RX Notes...
- Page 12 Installation Guide AT-OME-EX-RX Toll free US International atlona.com 877.536.3976 41.43.508.4321 • • © 2019 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.
