Panduit ATLONA AT-PRO5-101-RX Installation Manual

Installation Guide
AT-PRO5-101-RX
4K HDR SDVoE Receiver
for PRO5 Matrix Switcher
AT-PRO5-101-RX

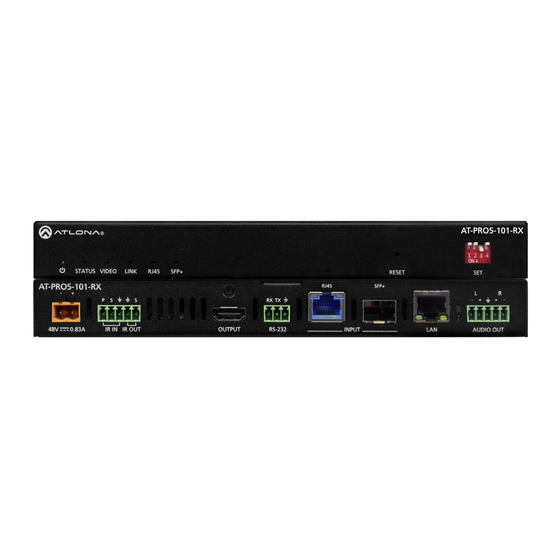

The Atlona AT-PRO5-101-RX is an AV extension receiver, featuring SDVoE 10GbE connectivity
®
for receiving ultra-high definition video and audio from the AT-PRO5-MX810 matrix switcher. Part
of the PRO5 Series, the PRO5-101-RX is HDCP 2.3 compliant, and supports 4K/60 4:4:4 and
HDR at HDMI data rates up to 18 Gbps. It features an RJ45 port, and an SFP+ cage for copper
or fiber optic connectivity to receive video, embedded audio, Gigabit Ethernet, and RS-232
and IR control signals from the matrix switcher. The RJ45 port allows extension up to 330 feet
(100 meters) over CAT6a UTP cable, along with PoE for powering the PRO5-101-RX, while the
SFP+ cage can be used with a compatible fiber optic module to extend from 38 meters up to 10
kilometers over fiber optic cable. The PRO5-101-RX SDVoE receiver, together with the PRO5-
MX810 HDMI to SDVoE matrix switcher, is ideal for a wide range of commercial applications
requiring multi-zone AV distribution with long-distance signal extension.
Package Contents
1 x AT-PRO5-101-RX
1 x 3-pin captive screw connector
2 x 5-pin captive screw connectors
1 x Insert w/ QR code
