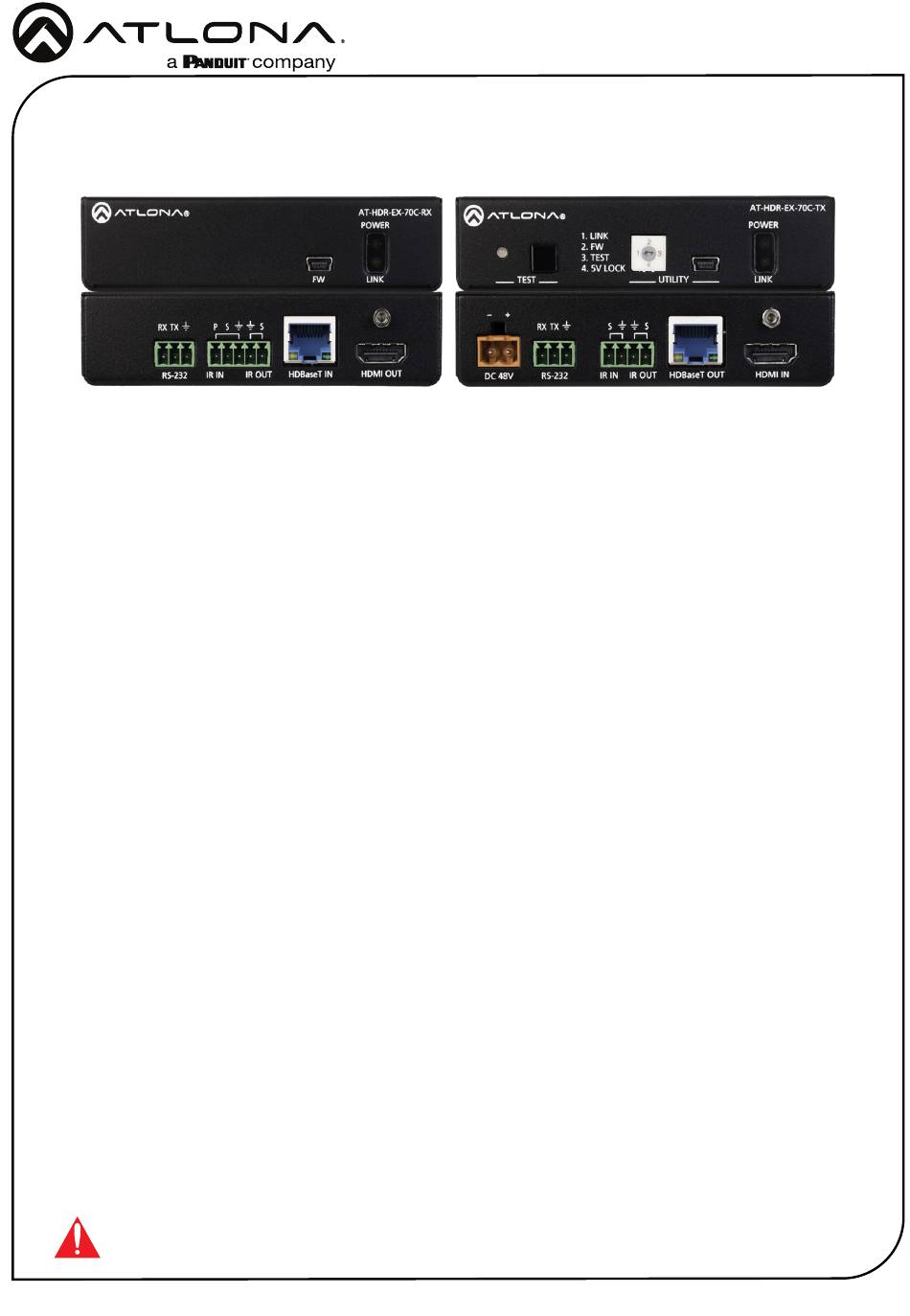

4K HDR HDMI Over HDBaseT TX/RX Kit
AT-HDR-EX-70C-KIT

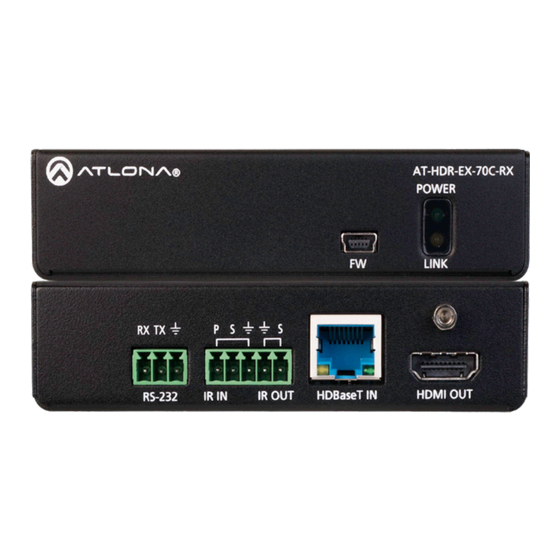

The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range
(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4
chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides
transmission of HDMI, as well as bidirectional IR and RS-232 control signals up to 230 feet
(70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable.
This extender kit features visually lossless compression with no latency to enable HDR and
4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the
transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-
KIT delivers a cost-effective solution for HDMI and control signal extension, and includes surface
mounting hardware for discrete installation.
Package Contents
1 x AT-HDR-EX-70C-TX
1 x AT-HDR-EX-70C-RX
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IR emitter
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70C-KIT for the latest
firmware updates and Installation Guide.
1 x 2-pin captive screw connector
2 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 5-pin captive screw connector
1 x Installation Guide
1
Installation Guide
AT-HDR-EX-70C-KIT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit AT-HDR-EX-70C-TX
Summary of Contents for Panduit AT-HDR-EX-70C-TX
- Page 1 Power over Ethernet (PoE). The HDR-EX-70C- KIT delivers a cost-effective solution for HDMI and control signal extension, and includes surface mounting hardware for discrete installation. Package Contents 1 x AT-HDR-EX-70C-TX 1 x 2-pin captive screw connector 1 x AT-HDR-EX-70C-RX 2 x 3-pin captive screw connector...
- Page 2 Installation Guide AT-HDR-EX-70C-KIT Panel Descriptions AT-HDR-EX-70C-TX AT-HDR-EX-70C-RX POWER POWER 1. LINK 2. FW 3. TEST 4. 5V LOCK TEST UTILITY LINK LINK RX TX RX TX DC 48V RS-232 IR IN IR OUT HDBaseT OUT HDMI IN RS-232 IR IN...
-
Page 3: Mounting Instructions
Installation Guide AT-HDR-EX-70C-KIT RS-232 A 3-pin captive screw connector for RS-232 has been included. Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and (Ground). Two captive screw connectors for IR have been included. A 4-pin connector for the transmitter and a 3-pin connector for the receiver. -
Page 4: Installation
Installation Guide AT-HDR-EX-70C-KIT Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. - R X X - 7 R - E - H D L I N NOTE: Mounting brackets can also be inverted to mount the unit under a table or other flat surface. - Page 5 The HDR-EX-70C-TX has the ability to test the HDBaseT cable quality through the front panel. Press the test button on the front panel of the transmitter to start the test. Button: AT-HDR-EX-70C-TX • Blue Blinking: The test is running properly.
- Page 6 Installation Guide AT-HDR-EX-70C-KIT Mode 3: TEST This mode sets the transmitter into HDBaseT testing and debugging mode. Firmware may also be updated in this mode using the Atlona Analyzer software. Quality Testing Open the Analyzer software. Plug in the power supply of the transmitter. Connect the receiver using an HDBaseT cable.
-
Page 7: Updating Firmware
Installation Guide AT-HDR-EX-70C-KIT Updating Firmware (manually) Download the firmware .zip file from the firmware tab located at http://www.atlona.com/AT- HDR-EX-70C-KIT. Unzip the .bin file to an easy to locate area of the local PC. *Transmitter only* Set the Utility dial on the front of the unit to mode 2. Connect the unit’s Utility mini USB port to a PC using a mini USB to USB A cable. -
Page 8: Warranty
Installation Guide AT-HDR-EX-70C-KIT Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-hdr-ex-70c-kit/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
