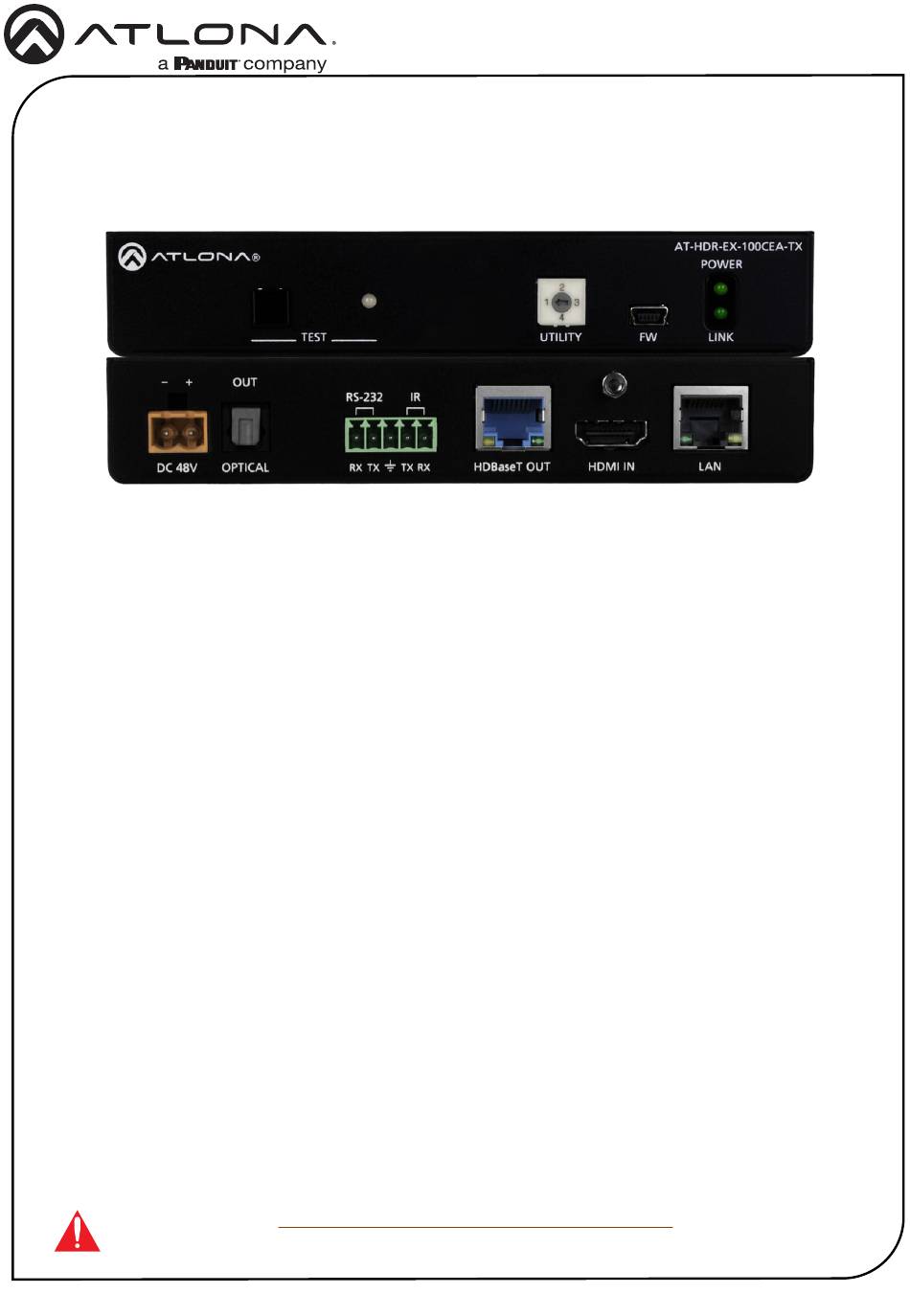

4K HDR HDBaseT Transmitter with Control and Ethernet
AT-HDR-EX-100CEA-TX
The Atlona AT-HDR-EX-100CEA-TX is a HDBaseT™ transmitter for 4K and high dynamic range
(HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus
HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft (100 m) over
Category 6/6A cable.
The HDR-EX-100CEA-TX is ideal for use with the AT-HDR-EX-100CEA-RX receiver for
transmitting 4K HDR in point-to-point applications. It can also be used with the AT-UHD-
CLSO-824 and AT-UHD-SW-5000ED for transmitting 4K/UHD @ 60 Hz 4:2:0 signals to the
switchers from a remote source.
Package Contents
1 x AT-HDR-EX-100CEA-TX
2 x Mounting brackets
4 x Mounting screws
IMPORTANT: Visit
firmware updates and Installation Guide.
https://atlona.com/product/at-hdr-ex-100cea-tx
1
1 x 48V DC power supply
1 x 2-pin captive screw connector
1 x 5-pin captive screw connector
Installation Guide
AT-HDR-EX-100CEA-TX
for the latest
Advertisement
Table of Contents
Related Manuals for Panduit ATLONA AT-HDR-EX-100CEA-TX
Summary of Contents for Panduit ATLONA AT-HDR-EX-100CEA-TX
- Page 1 4K HDR HDBaseT Transmitter with Control and Ethernet AT-HDR-EX-100CEA-TX The Atlona AT-HDR-EX-100CEA-TX is a HDBaseT™ transmitter for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft (100 m) over Category 6/6A cable.
- Page 2 Installation Guide AT-HDR-EX-100CEA-TX Panel Descriptions AT-HDR-EX-100CEA-TX POWER 1. LINK 2. FW AT-HDR-EX-100CEA-TX 3. TEST POWER 4. 5V LOCK 1. LINK TEST UTILITY LINK 2. FW 3. TEST 4. 5V LOCK TEST UTILITY LINK RS-232 RS-232 DC 48V OPTICAL HDBaseT OUT HDMI IN OPTI TX RX...
- Page 3 Installation Guide AT-HDR-EX-100CEA-TX Control A 5-pin captive screw connector for control has been included. The first two terminals are RS- 232 control with a shared ground with IR, the last two terminals are for IR. RS-232 Pin out will be determined by the The IR connector shares the ground RS-232 cable and connect as port with the RS-232 port and is both...
-
Page 4: Mounting Instructions
Installation Guide AT-HDR-EX-100CEA-TX Mounting Instructions The AT-HDR-EX-100CEA-TX includes two mounting brackets and four mounting screws each, which can be used to attach the units to any flat surface. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket. -
Page 5: Installation
Installation Guide AT-HDR-EX-100CEA-TX Installation Connect an AV source to the HDMI IN port on the transmitter. Connect a display to the HDMI OUT port on the compatible receiver. Connect an RJ45 cable, from the HDBaseT OUT port on the transmitter, to the HDBaseT input of a compatible receiver. - Page 6 Installation Guide AT-HDR-EX-100CEA-TX TEST The HDR-EX-100CEA-TX has the ability to test the HDBaseT cable quality through the front panel. Press the test button on the front panel of the transmitter to start the test. NOTE: Test function only works when used with AT-HDR-EX-100CEA-RX. Button: AT-HDR-EX-70C-TX •...
- Page 7 Installation Guide AT-HDR-EX-100CEA-TX Mode 3: TEST This mode sets the transmitter into HDBaseT testing and debugging mode. Firmware may also be updated in this mode using the Atlona Analyzer software. Quality Testing Open the Analyzer software. Plug in the power supply of the transmitter. Connect the receiver using an HDBaseT cable.
-
Page 8: Updating Firmware (Manually)
Installation Guide AT-HDR-EX-100CEA-TX Updating Firmware (manually) Download the firmware .zip file from the firmware tab located at https://atlona.com/at-hdr-ex- 100cea-tx. Unzip the .bin file to an easy to locate area of the local PC. Set the Utility dial on the front of the unit to mode 2. Connect the unit’s Utility mini USB port to a PC using a mini USB to USB A cable. -
Page 9: Warranty
Installation Guide AT-HDR-EX-100CEA-TX Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-hdr-ex-100cea-tx/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
