Panduit ATLONA AT-PRO5-101-SC-RX Installation Manual

Installation Guide
AT-PRO5-101-SC-RX
4K HDR SDVoE Receiver
with Scaler for PRO5 Matrix Switcher

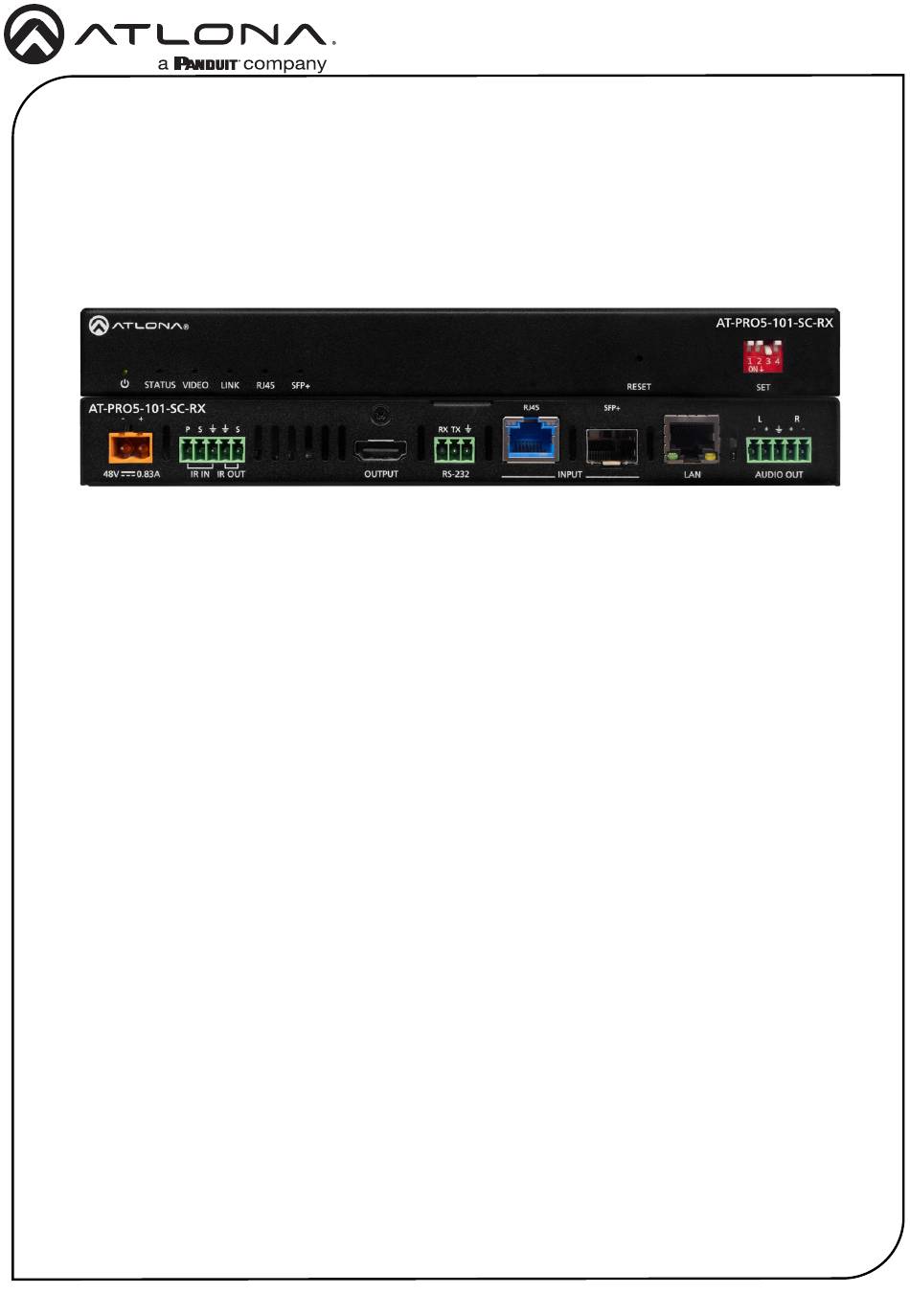

AT-PRO5-101-SC-RX
The Atlona AT-PRO5-101-SC-RX is an AV extension receiver with integrated video processing,
featuring SDVoE 10GbE connectivity for receiving ultra-high definition video and audio from the
®
AT-PRO5-MX810 matrix switcher. Part of the PRO5 Series, the PRO5-101-SC-RX is HDCP 2.3
compliant, and supports 4K/60 4:4:4 and HDR at HDMI data rates up to 18 Gbps. It features an
®
RJ45 port, and an SFP+ cage for copper or fiber optic connectivity to receive video, embedded
audio, Gigabit Ethernet, and RS-232 and IR control signals from the matrix switcher. The RJ45
port allows extension up to 330 feet (100 meters) over CAT6a UTP cable, along with PoE for
powering the PRO5-101-SC-RX, while the SFP+ cage can be used with a compatible fiber
optic module to extend from 38 meters up to 10 kilometers over fiber optic cable. This receiver
features high-performance video processing which includes 4K video upscaling and downscaling
with frame rate conversion, and video wall processing for 2x2, 1x3, and 2x4 display arrays. The
PRO5-101-SC-RX SDVoE scaling receiver, together with the PRO5-MX810 HDMI to SDVoE
matrix switcher, is ideal for a wide range of commercial applications requiring multi-zone AV
distribution with long-distance signal extension.
Package Contents
1 x AT-PRO5-101-SC-RX
1 x 3-pin captive screw connector
2 x 5-pin captive screw connectors
1 x Insert w/ QR code
