4K/UHD HDMI Over HDBaseT RX with Control and PoE
AT-UHD-EX-70C-RX

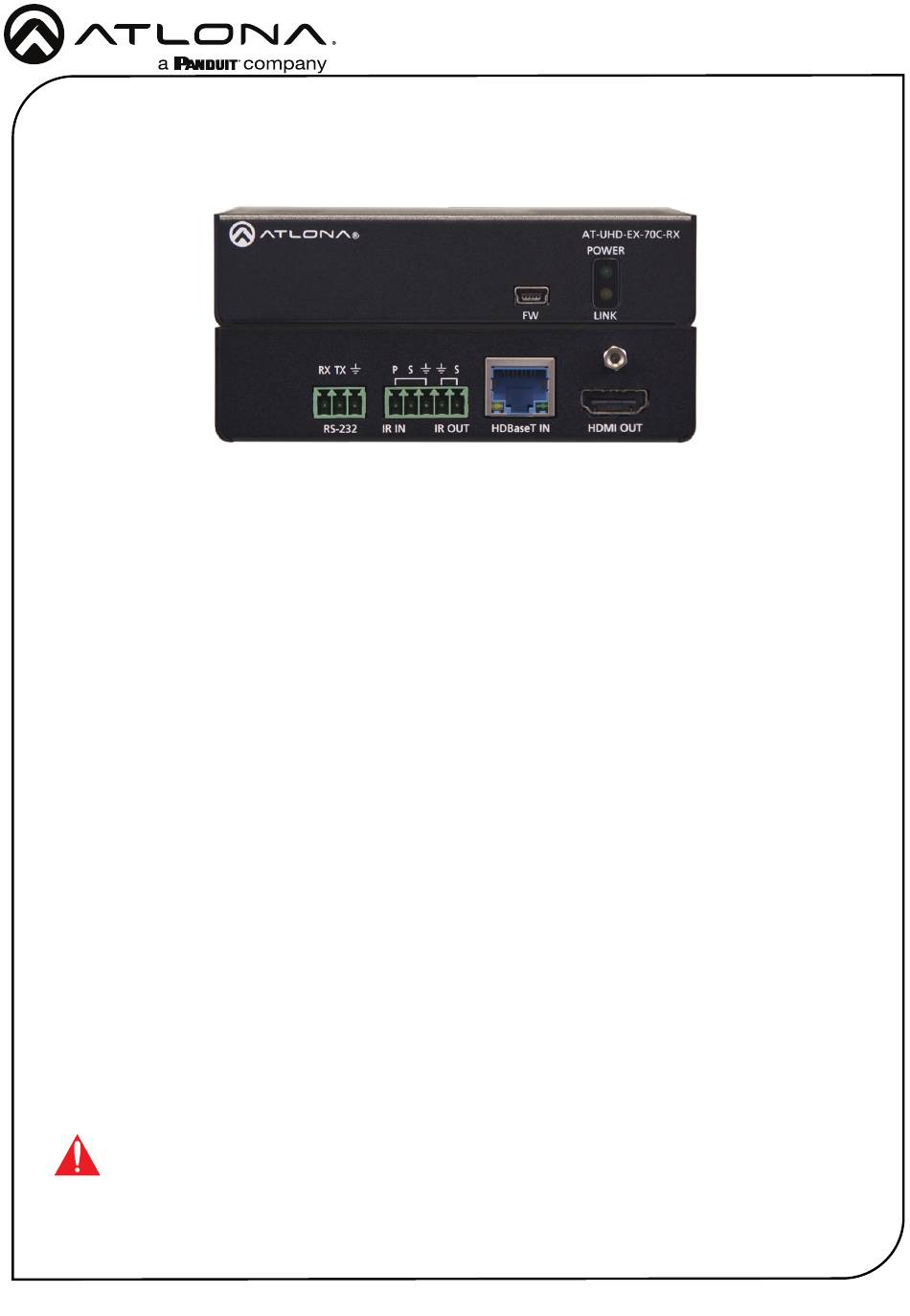

The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70
meters) over category cable with RS-232 and IR control pass-through, plus Power over Ethernet
capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-
channel audio and remote 48V Power over Ethernet. The AT-UHD-EX-70C-RX is HDCP 2.2
compliant and supports EDID communication. The receiver features a quarter rack width metal
enclosure for easy installation with rear panel I/O ports for uncluttered wire management. Use
with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system
control.
This receiver is used in commercial and applications that call for an HDBaseT receiver with a
compact form factor that allows for simple mounting behind displays and at projectors. These
applications will not require an AC outlet for the receiver, since the receiver is powered by an
Atlona switching product. This receiver will also be used to simplify control of the AV system by
working with 12 volt-based IR receivers as well as passing through RS-232 commands.
Package Contents
1 x AT-HDR-EX-70C-RX
2 x Mounting brackets
4 x Mounting screws
1 x IR emitter
1 x 3-pin captive screw connector
1 x 5-pin captive screw connector
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70C-RX for the latest
firmware updates and Installation Guide.
1
Installation Guide
AT-UHD-EX-70C-RX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit Atlona AT-UHD-EX-70C-RX
Summary of Contents for Panduit Atlona AT-UHD-EX-70C-RX
- Page 1 4K/UHD HDMI Over HDBaseT RX with Control and PoE AT-UHD-EX-70C-RX The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control pass-through, plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi- channel audio and remote 48V Power over Ethernet.
-
Page 2: Panel Descriptions
Installation Guide AT-UHD-EX-70C-RX Panel Descriptions AT-UHD-EX-70C-RX POWER LINK RX TX RS-232 IR IN IR OUT HDBaseT IN HDMI OUT IR IN / IR OUT Connect a mini-USB to USB-A type cable Connect an IR receiver to the IR IN port. from this port to a computer, to update Connect the included IR emitter from the the firmware. -
Page 3: Mounting Instructions
Installation Guide AT-UHD-EX-70C-RX RS-232 A 3-pin captive screw connector for RS-232 is included. Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and (Ground). A 5-pin captive screw connector for IR is included. IR IN is connected by a power, ground, and signal wire. -
Page 4: Installation
Installation Guide AT-UHD-EX-70C-RX Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. NOTE: Mounting brackets can also be inverted to mount the unit under a table or other flat surface. -
Page 5: Updating Firmware
Installation Guide AT-UHD-EX-70C-RX Updating Firmware Download the firmware .zip file from the firmware tab located at http://www.atlona.com/ at-uhd-ex-70c-rx. Unzip the contents of the .zip file to the local PC. Connect a USB to mini-USB cable from the FW port on the unit to an available USB port on the computer. - Page 6 Installation Guide AT-UHD-EX-70C-RX Notes...
- Page 7 Installation Guide AT-UHD-EX-70C-RX Notes...
-
Page 8: Warranty
Installation Guide AT-UHD-EX-70C-RX Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-uhd-ex-70c-rx/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
