4K HDR HDMI over 100 M HDBaseT™ RX
with Ethernet, Control, PoE, and Return Audio
AT-HDR-EX-100CEA-RX

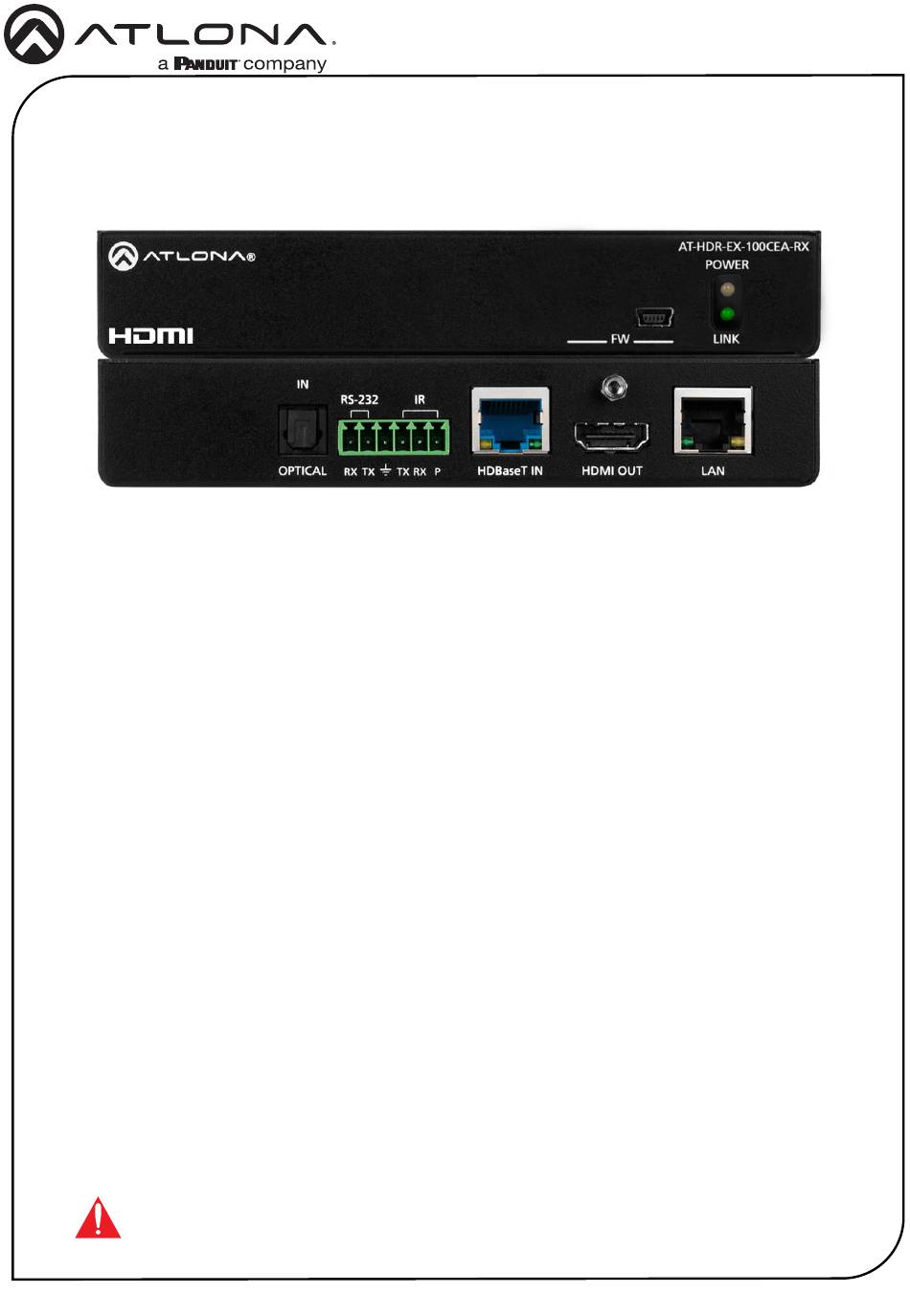

The Atlona AT-HDR-EX-100CEA-RX is a HDBaseT™ receiver for 4K and high dynamic range
(HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling
plus HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft. (100 m)
over Category 6/6A cable. The HDR-EX-100CEA-RX is ideal for use with the AT-HDR-CAT-4ED
distribution amplifier for passing 4K HDR signals to a display. A compact enclosure and remote
power supplied by the transmitter means the receiver can be conveniently mounted in furniture,
behind a display, or above a projector.
Package Contents
1 x AT-HDR-EX-100CEA-RX
2 x Mounting brackets
4 x Mounting screws
IMPORTANT: Visit https://atlona.com/product/at-hdr-ex-100cea-rx for the latest
firmware updates and Installation Guide.
1 x 6-pin captive screw connector
1 x Installation Guide
1
Installation Guide
AT-HDR-EX-100CEA-RX
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit ATLONA AT-HDR-EX-100CEA-RX
Summary of Contents for Panduit ATLONA AT-HDR-EX-100CEA-RX
- Page 1 Ethernet, Control, PoE, and Return Audio AT-HDR-EX-100CEA-RX The Atlona AT-HDR-EX-100CEA-RX is a HDBaseT™ receiver for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft. (100 m) over Category 6/6A cable.
-
Page 2: Panel Descriptions
Installation Guide AT-HDR-EX-100CEA-RX Panel Descriptions AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-RX POWER POWER 1. LINK 2. FW AT-HDR-EX-100CEA-TX AT-HDR-EX-100CEA-RX 3. TEST POWER POWER 4. 5V LOCK 1. LINK TEST UTILITY LINK LINK 2. FW 3. TEST 4. 5V LOCK TEST UTILITY LINK LINK RS-232 RS-232 RS-232 RS-232... - Page 3 Installation Guide AT-HDR-EX-100CEA-RX RS-232 / IR Wiring The AT-HDR-EX-100CEA-RX provides both an RS-232 and IR port. RS-232 pass-through is supported, allowing a control system to be connected to either the transmitter or receiver. Connect the included IR emitter to the transmitter and an IR extender (not included) to the receiver.
-
Page 4: Mounting Instructions
Installation Guide AT-HDR-EX-100CEA-RX Mounting Instructions The AT-HDR-EX-100CEA-RX includes two mounting brackets and four mounting screws, which can be used to attach the units to any flat surface. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket. -
Page 5: Installation
Installation Guide AT-HDR-EX-100CEA-RX Installation Connect an HDMI display to the HDMI OUT port on the receiver. Connect an Ethernet cable from the LAN port, on either the transmitter or receiver, to the Local Area Network. *OPTIONAL* Connect a control system to the transmitter. Connect the device being controlled to the receiver. -
Page 6: Updating The Firmware
Installation Guide AT-HDR-EX-100CEA-RX Updating the Firmware Download the firmware file from the Firmware tab located at https://atlona.com/at-hdr-ex- 100cea-rx. Extract the firmware, from the archive file, to the Windows desktop or other folder. Disconnect the Ethernet cable from the HDBaseT IN port on the receiver. Connect a mini-USB to USB-A cable from the FW port on the receiver, to the computer with the firmware file. - Page 7 Installation Guide AT-HDR-EX-100CEA-RX Notes...
-
Page 8: Warranty
Installation Guide AT-HDR-EX-100CEA-RX Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-hdr-ex-100cea-rx/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. International atlona.com 41.43.508.4321...
