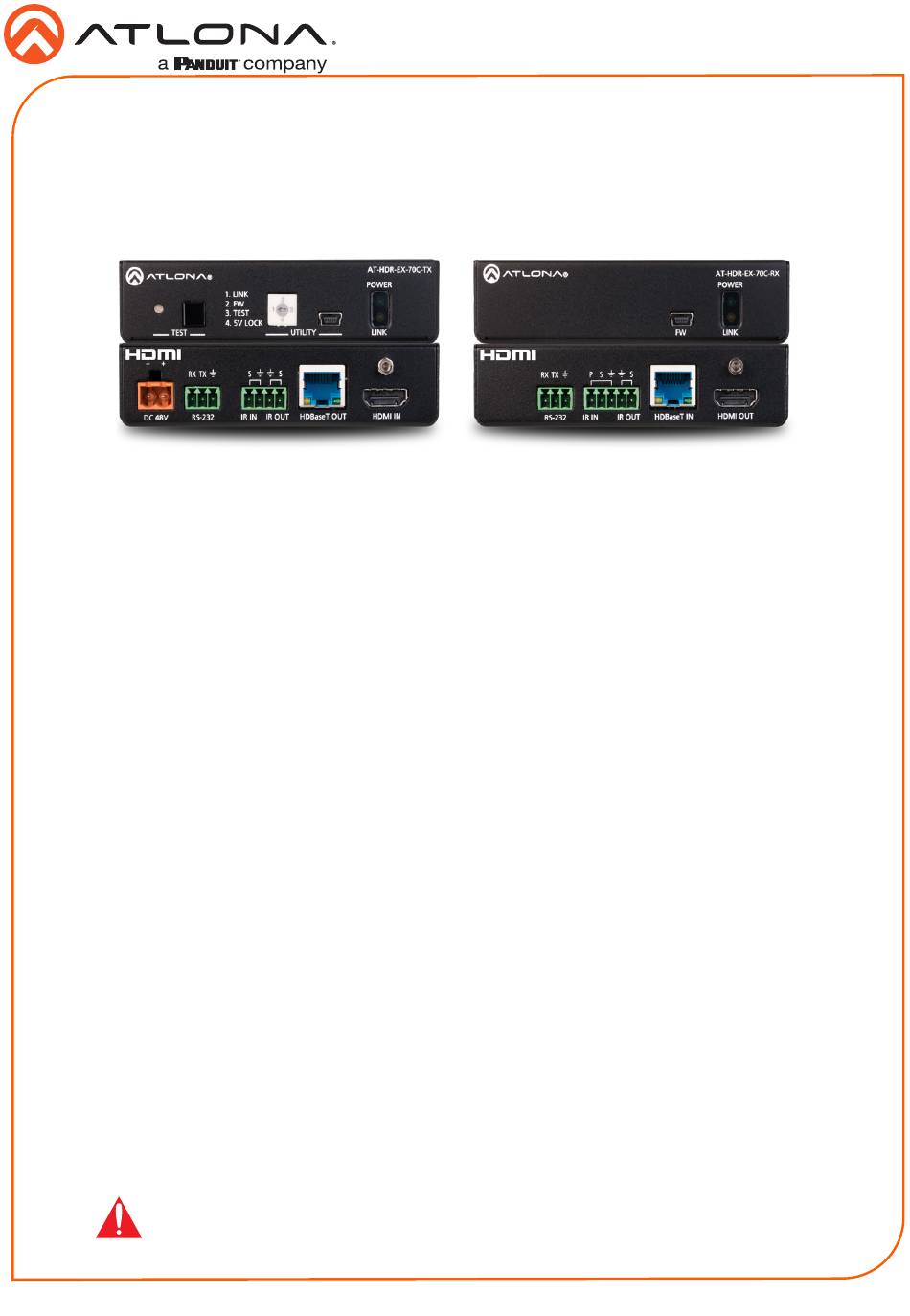

4K HDR HDMI Over HDBaseT TX/RX Kit
AT-HDR-EX-70C-KIT
The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range
(HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4
chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides
transmission of HDMI, as well as bidirectional IR and RS-232 control signals up to 230 feet
(70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable.
This extender kit features visually lossless compression with no latency to enable HDR and
4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the
transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-70C-
KIT delivers a cost-effective solution for HDMI and control signal extension, and includes surface
mounting hardware for discrete installation.
Package Contents
1 x AT-HDR-EX-70C-TX
1 x AT-HDR-EX-70C-RX
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IR emitter
IMPORTANT: Visit http://www.atlona.com/product/AT-HDR-EX-70C-KIT for the
latest firmware updates and Installation Guide.
1 x 2-pin captive screw connector
2 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 5-pin captive screw connector
1 x Installation Guide
1
Installation Guide
AT-HDR-EX-70C-KIT
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panduit Atlona AT-HDR-EX-70C-KIT
Summary of Contents for Panduit Atlona AT-HDR-EX-70C-KIT
- Page 1 4K HDR HDMI Over HDBaseT TX/RX Kit AT-HDR-EX-70C-KIT The Atlona AT-HDR-EX-70C-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70C-KIT provides transmission of HDMI, as well as bidirectional IR and RS-232 control signals up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable.
- Page 2 Installation Guide AT-HDR-EX-70C-KIT Panel Descriptions AT-HDR-EX-70C-TX AT-HDR-EX-70C-RX POWER POWER 1. LINK 2. FW 3. TEST 4. 5V LOCK TEST UTILITY LINK LINK RX TX RX TX DC 48V RS-232 IR IN IR OUT HDBaseT OUT HDMI IN RS-232 IR IN IR OUT HDBaseT IN HDMI OUT...
-
Page 3: Mounting Instructions
Installation Guide AT-HDR-EX-70C-KIT RS-232 A 3-pin captive screw connector for RS-232 has been included. Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and (Ground). Two captive screw connectors for IR have been included. A 4-pin connector for the transmitter and a 3-pin connector for the receiver. -
Page 4: Installation
Installation Guide AT-HDR-EX-70C-KIT Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. - R X X - 7 R - E - H D L I N NOTE: Mounting brackets can also be inverted to mount the unit under a table or other flat surface. -
Page 5: Connection Diagram
Installation Guide AT-HDR-EX-70C-KIT Connection Diagram Automation Control System HDR UHD/HD Display CT OR RE SE 48 V AT-JUNO-451 -4 51 AT-HDR-EX-70C-RX A T- -2 32 TI C B as 23 2 R S- C -R X- 70 R -E -H D W ER AT-HDR-EX-70C-TX LI N... - Page 6 Installation Guide AT-HDR-EX-70C-KIT UTILITY AT-HD POWE The utility port and dial are used for updating firmware and 5V 1. LINK lock. Use the Dial to switch between modes. 2. FW 3. TEST 4. 5V LOCK TEST UTILITY LINK Mode 1: Link This is the default position of the dial and puts the unit into normal operation.
-
Page 7: Updating Firmware
Installation Guide AT-HDR-EX-70C-KIT Updating Firmware Download the firmware .zip file from the firmware tab located at http://www.atlona.com/ AT-HDR-EX-70C-KIT. Extract the firmware, from the archive file, to the Windows desktop or other folder. Make sure the included 48 V DC power supply is connected to the transmitter and that an Ethernet cable is connected between the HDBaseT OUT and HDBaseT IN ports on the transmitter and receiver, respectively. - Page 8 Installation Guide AT-HDR-EX-70C-KIT Atlona, Inc. (“Atlona”) Limited Product Warranty Coverage Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service. Under its Limited Product Warranty, Atlona, at its sole discretion, will either: •...
- Page 9 Installation Guide AT-HDR-EX-70C-KIT Remedy Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona. com for Atlona’s contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services.
- Page 10 Installation Guide AT-HDR-EX-70C-KIT Exclusive Remedy To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose.
- Page 11 Installation Guide AT-HDR-EX-70C-KIT Notes...
- Page 12 Installation Guide AT-HDR-EX-70C-KIT English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-hdr-ex-70c-kit/ Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/ ® The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
