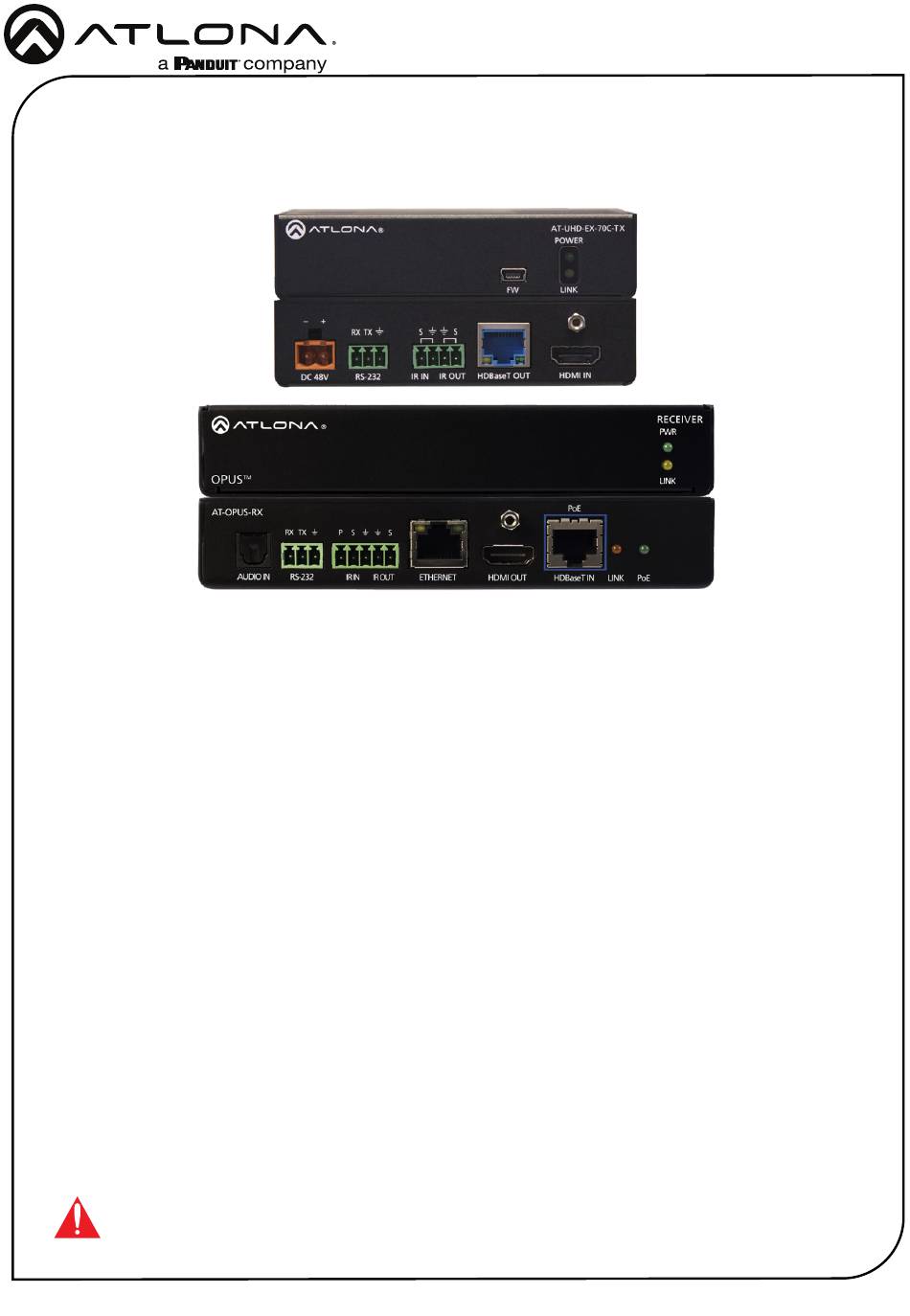

Panduit ATLONA AT-OPUS-70C-KIT Installation Manual

4K/UHD HDMI
AT-OPUS-70C-KIT
The Atlona AT-OPUS-70C-KIT is an HDBaseT
up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over
Ethernet capability. The kit transmits video signals up to 4K/UHD @ 60Hz with embedded
multi-channel audio and remote 48V power for the receiver. HDCP 2.2 compliance ensures
compatibility with the latest copy protection requirements and EDID communication is supported.
Included brackets allow the devices to be surface mounted on furniture or behind a display.
For higher density applications, the transmitter's compact enclosure allows four to be mounted
in a single 1U rack tray, and they support power chaining for powering multiple units from one
power supply. The AT-OPUS-70C-KIT is ideal for use in residential or commercial point to point
applications that require HDBaseT signal transmission over greater distances than HDMI
support.
Package Contents
AT-UHD-EX-70C-TX
1 x AT-UHD-EX-70C-TX
2 x Mounting brackets
4 x Mounting screws
1 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 2-pin captive screw connector
1 x 48 V / 0.83 A DC power supply
IMPORTANT: Visit http://www.atlona.com/product/AT-OPUS-70C-KIT for the latest
firmware updates and Installation Guide.
Over HDBaseT TX with Control and PoE
®
transmitter/receiver kit for HDMI transmission
™

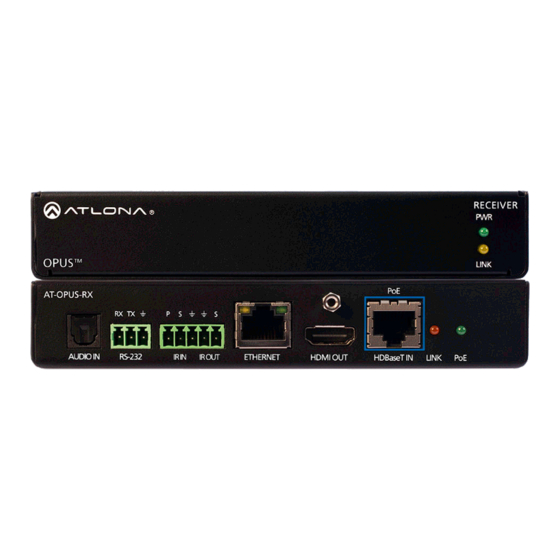

AT-OPUS-RX
1 x AT-OPUS-RX
2 x Mounting brackets
4 x Mounting screws
1 x IR Emitter
1 x 3-pin captive screw connector
1 x 5-pin captive screw connector
1
Installation Guide
AT-OPUS-70C-KIT
