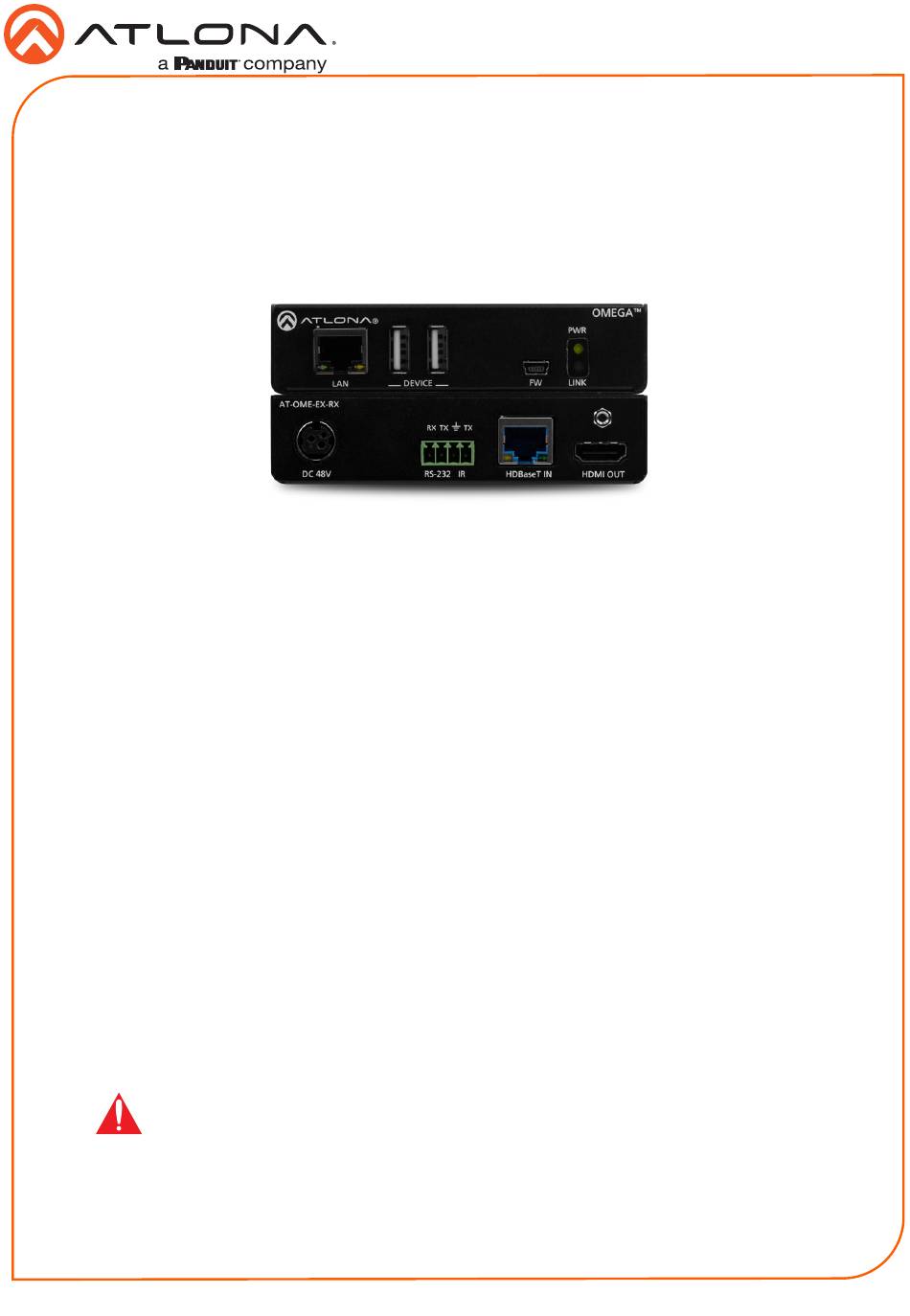

Omega
4K/UHD
™
HDMI Over HDBaseT Receiver with USB, Control, and PoE
AT-OME-EX-RX
The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded
audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the
Omega™ Series of integration products for modern AV communications and collaboration,
the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals. With
a matching HDBaseT transmitter, the integrated USB extension is ideal for software video
conferencing and the use of touch or interactive displays. The OME-EX-RX includes two USB
interfaces for devices such as a camera or display. This receiver is ideal for use with Omega
Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EX-
KIT which includes the OME-EX-TX and OME-EX-RX.*
Package Contents
1 x AT-OME-EX-RX
1 x Captive screw connectors, 4-pin
2 x Mounting plates
2 x Mounting screws
1 x 48 V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-RX for the
latest firmware updates and User Manual.
* The AT-OME-EX-RX is not compatible with the AT-UHD-HDVS-300 system for extending USB.
1
Installation Guide
AT-OME-EX-RX

Advertisement

loading
Need help?

Need help?

Do you have a question about the Atlona Omega AT-OME-EX-RX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panduit Atlona Omega AT-OME-EX-RX

Summary of Contents for Panduit Atlona Omega AT-OME-EX-RX

  • Page 1 Installation Guide AT-OME-EX-RX Omega 4K/UHD ™ HDMI Over HDBaseT Receiver with USB, Control, and PoE AT-OME-EX-RX The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™...
  • Page 2 Installation Guide AT-OME-EX-RX OMEGA DEVICE LINK Front AT-OME-EX-RX DC 48V RS-232 IR HDBaseT IN HDMI OUT Rear Connect a category cable from this port to the display (sink) device. This cable provides IP pass-through transport control to the display (sink) device, from a control system connected to the transmitter.
  • Page 3 Installation Guide AT-OME-EX-RX RS-232 and IR The AT-OME-EX-RX provides pass-through transport of RS-232 protocol and/or IR over HDBaseT, which allows communication between a control system and an RS-232 or IR device. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16”...

  • Page 4: Installation

    Installation Guide AT-OME-EX-RX Installation Connect a UHD/HD display to the HDMI OUT port. Connect up to two USB devices (mouse, keyboard, etc.) to the DEVICE ports. These ports provide 2.5 W per USB device. Connect a category cable, from the HDBaseT IN port on the AT-OME-EX-RX, to the HDBaseT OUT port on the transmitter.

  • Page 5: Led Indicators

    Installation Guide AT-OME-EX-RX LED Indicators The PWR and LINK LED indicator provide basic information on the current status of the AT- OME-EX-RX. Description Solid green AT-OME-EX-RX is powered. AT-OME-EX-RX is not powered. • Verify that the locking connector is securely fastened to the power receptacle.

  • Page 6: Mounting Instructions

    Installation Guide AT-OME-EX-RX Mounting Instructions The AT-OME-EX-RX provides two mounting brackets, which can be used to attach the AT-OME- EX-RX to any flat surface. Use the two enclosure screws, on the sides of the AT-OME-EX-RX to attach the mounting brackets. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure.
  • Page 7 Installation Guide AT-OME-EX-RX Repeat these steps to attach the second mounting bracket to the opposite side of the AT- OME-EX-RX. Mount the AT-OME-EX-RX to a flat surface using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended. L I N V I C...
  • Page 8 Installation Guide AT-OME-EX-RX Analyzer Software The Analyzer software provides HDBaseT testing, debugging, and firmware update utilities. The software can be downloaded from the Resource tab located at https://atlona.com/product/ at-ome-ex-kit/. HDBaseT Testing Launch the Analyzer software. Make sure the system is powered and the transmitter and receiver are connected using the HDBaseT OUT and HDBaseT IN ports.
  • Page 9 Installation Guide AT-OME-EX-RX Debug Launch the Analyzer software. Make sure the system is powered and the transmitter and receiver are connected using the HDBaseT OUT and HDBaseT IN ports. Connect an active source to the transmitter and an active display to the receiver. Set the source to the highest resolution.

  • Page 10: Updating The Firmware

    Installation Guide AT-OME-EX-RX Updating the Firmware Requirements: • AT-OME-EX-RX • Firmware file • Computer running Windows • USB-A to USB mini-B cable NOTE: The update process can take up to five minutes to complete. Disconnect power from the AT-OME-EX-RX. Connect a USB-A to USB mini-B cable between the PC and the FW port on the AT-OME- EX-RX.
  • Page 11 Installation Guide AT-OME-EX-RX Notes...
