Connections; Connection 1 - Alpine i509-WRA-JK Installation Manual

Connections

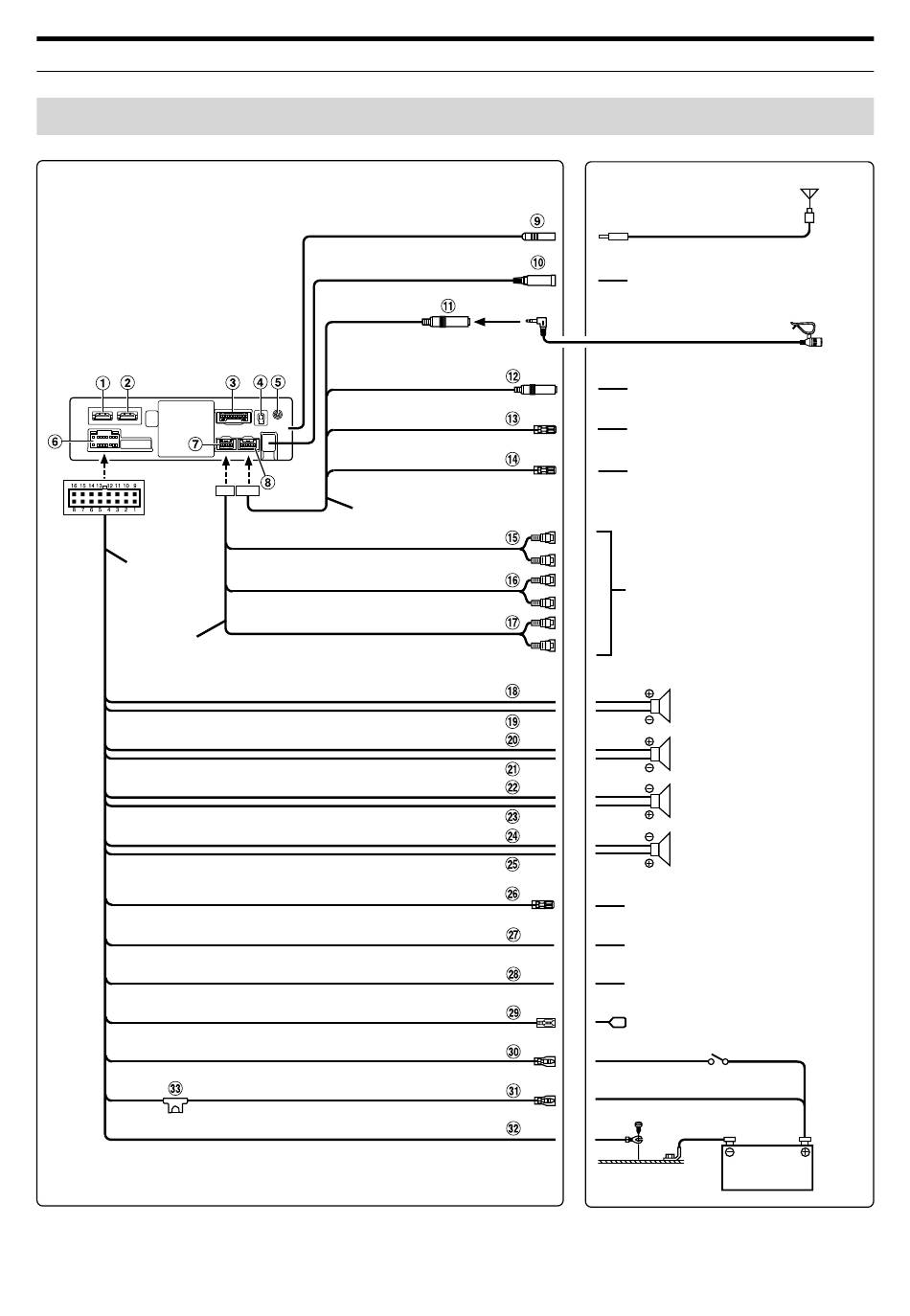

Connection 1

Power cable
PRE OUT cable
82
-EN
MIC IN
STEERING REMOTE
HDMI-REMO-OUT
(Brown)
AUX-REMO-OUT
(Gray)
REMOTE cable
SUBW
FRONT OUT
REAR OUT
(Green)
(Green/Black)
(White)
(White/Black)
(Gray/Black)
(Gray)
(Violet/Black)
(Violet)
REMO
(Blue/White)
REVERSE
(Violet/White)
PARKING BRAKE
(Yellow/Blue)
P. ANT
(Blue)
ACC
(Red)
BATT
(Yellow)
GND
(Black)
Antenna
To SiriusXM Tuner
Microphone (included)
To steering remote control
interface
To HDMI Selector Interface
To AUX device (TV Tuner, etc.)
To input terminal of amplifier
when adding an external
amplifier
Rear Left
Front Left
Speakers
Front Right
Rear Right
To amplifier or equalizer
To plus side of the back lamp signal
lead of the car
To the parking brake signal lead
To power antenna
Ignition key
Battery
