Jeep Wrangler
X109-WRA 9" Restyle
In-Dash System
Installation Manual
˜ Model: Wrangler
˜ Model Year: 2011-UP
* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is
not guaranteed if the manufacturer has made production changes to the listed vehicles above.
Warning: Before you begin wiring, remove the ground wire from the negative
terminal of the battery. Failing to do so can lead to electric shock, injury or damage
to equipment.
Introduction
˜ Design and specifications are subject to change without notice for improvement.
To Ensure Safe Use, Always Follow These Precautions
˜ The installation of this product requires specialized skills and experience. We recommend that you have the
product installed by an Alpine authorized dealer.
˜ Before you use this product, be sure to carefully read this installation manual and the separate user's manual
so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as
a result of failure to follow the instructions in the manuals.
˜ This manual includes a number of symbols that are intended to help you use the product safely, to prevent
harm to you and others, and to protect against damage to property. These symbols and their meanings are
listed below. Make sure you fully understand these symbols before you begin reading the main text.
Explanations of Injury and Damage That May Result from Incorrect Use
Ignoring the content marked by this indication and using the product incorrectly is
Warning
expected to lead to death or serious injury.
Ignoring the content marked by this indication and using the product incorrectly is only
Caution
expected to lead to injury or property damage.
Model
Jeep
Wrangler
WRANGLER
Year
2011 - UP
Jeep Wrangler
˜ 1/15
Advertisement
Table of Contents
Related Manuals for Alpine X109-WRA
Summary of Contents for Alpine X109-WRA
- Page 1 ˜ Before you use this product, be sure to carefully read this installation manual and the separate user's manual so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as a result of failure to follow the instructions in the manuals.
- Page 2 Jeep Wrangler WRANGLER ˜ 2/15 Types of Precautions Indicates actions that are forbidden Indicates actions that are (must not be performed) mandatory (must be performed) Forbidden Mandatory Indicates that disassembly is Marks content that should receive forbidden. your full attention. Forbidden Warning Do not disassemble or modify the product.
- Page 3 Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust. Doing so could lead to fire or damage equipment. Forbidden The installation and wiring of this product requires specialized skills and experience. Have the product installed by an Alpine authorized dealer.
- Page 4 Tools Required Panel Removing Tool 7mm Sockets #2 Phillips Screwdriver 10mm Sockets Extension Ratchet Air Saw Wire Cutters Accessory List Installation Kit Parts (G-KTX-X109D-WRA) X109-WRA Radio Dash Bezel Key Harness Side Mounting Brackets Microphone GPS Antenna Bracket Rear Support Bracket...
-
Page 5: Accessory List

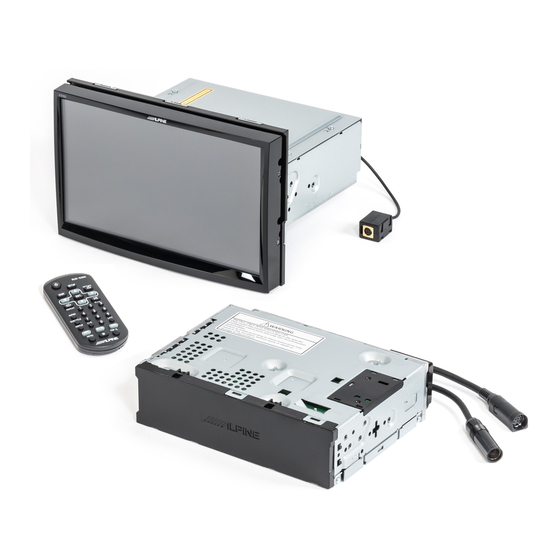

Head Unit Box Parts (X109D) X109D DVD/Display Unit X109D Source Unit USB Extension Cable AUX/Pre Out Harness GPS Antenna Documents OM QR Card Alpine QRG Navigation Registration Card Direct Camera Adapter Display Cable HDMI Cable Source Unit HDMI Bracket DVD/Display HDMI Bracket... - Page 6 Jeep Wrangler WRANGLER ˜ 6/15 Component Locations IMPORTANT: Follow the recommended component location shown below. Failure to do so, will result in poor GPS performance. GPS Antenna Location BT Microphone iDatalink Maestro Module SAT-Radio Tuner (Sold Separately) Jeep SINCE 1941 Jeep GPS Antenna Installation IMPORTANT: Follow the GPS antenna installation procedure shown below.
- Page 7 Jeep Wrangler WRANGLER ˜ 7/15 Factory Unit Disassembly Process Remove the rubber cover from the top center Remove the knee cover panel and extract (2) 7mm storage area and extract (1) 7mm screw. screws located to the right and left sides of the steering wheel column.
- Page 8 Jeep Wrangler WRANGLER ˜ 8/15 Programming the iDatalink Maestro Module INSTALL THE WEBLINK PLUG-IN REGISTER A WEBLINK ACCOUNT Go to: Go to: idatalinkmaestro.com/plugin and follow the installation steps. idatalinkmaestro.com/register and complete the registration process. Review the System Requirements before installing. A confirmation email will be sent to you requiring validation.
-
Page 9: Installation Instructions
The factory dash panel needs to be trimmed to Remove the vents from the radio section on the allow the new X109-WRA bezel to fit into place. OEM dash panel by pressing down on the lock tab Remove the highlighted area by cutting along the and turning right. -
Page 10: Mounting Brackets
Jeep Wrangler WRANGLER ˜ 10/15 Mounting Brackets IMPORTANT: During the research and development of this product it was discovered that mounting tolerance may vary from the vehicle’s trim level to year built. We have added a 1mm tolerance to the mounting brackets to compensate for such variance in mounting tolerance. - Page 11 Jeep Wrangler WRANGLER ˜ 11/15 Installation Instructions Attach the modified panel using the factory screws. Position X109D source unit on top of X109 DVD/ Display unit as shown, and attach the mounting brackets using the provided (8) 8mm screws and rear support rubber cap screw.
-
Page 12: Exploded View Diagram
Jeep Wrangler WRANGLER ˜ 12/15 Exploded-View Diagram Dash Board X109D Source Unit X109-WRA Radio Dash Bezel Side Mounting Brackets Factory Vents and Window Switch Pod (not included) Bezel Wiring Diagram 20 Pin Harness (Connect to X109D) 8 Pin Harness 8 Pin Harness... - Page 13 Jeep Wrangler WRANGLER ˜ 13/15 X109-WRA Wiring Diagram AMPLIFIED VEHICLES To Vehicle Connectors WARNING! Failure to follow this procedure will result in no audio from Navigation and OEM Audio Power/Speaker To OBDII Connector Bluetooth sources. 20-pin Gray 16-pin Green Connector Connector For factory amplified vehicles switch the...
- Page 14 Jeep Wrangler WRANGLER ˜ 14/15 X109-WRA With Optional HDMI Interface Wiring Diagram X109D - Source Unit DISP. OUT CAN I/F HDMI IN HDMI OUT SXM/DAB PRE OUT EXT. KEY W.REMOTE POWER ANTENNA KCX-630HD (Optional) HDMI Selector Interface POWER USB POWER...
-
Page 15: Troubleshooting Guide
˜ 15/15 Set Up Guide Turn the vehicle’s Ignition switch to ACC. Turn ON the X109-WRA by pressing any key. Select the user language and press OK. Press and release the parking brake twice. If a camera is present, turn it ON in the system menu. (MENU/SETUP/SYSTEM/CAMERA/CAMERA SELECT) AUDIO MUTE ON REVERSE- By default, when the vehicle is shifted into reverse the AUDIO will MUTE.
