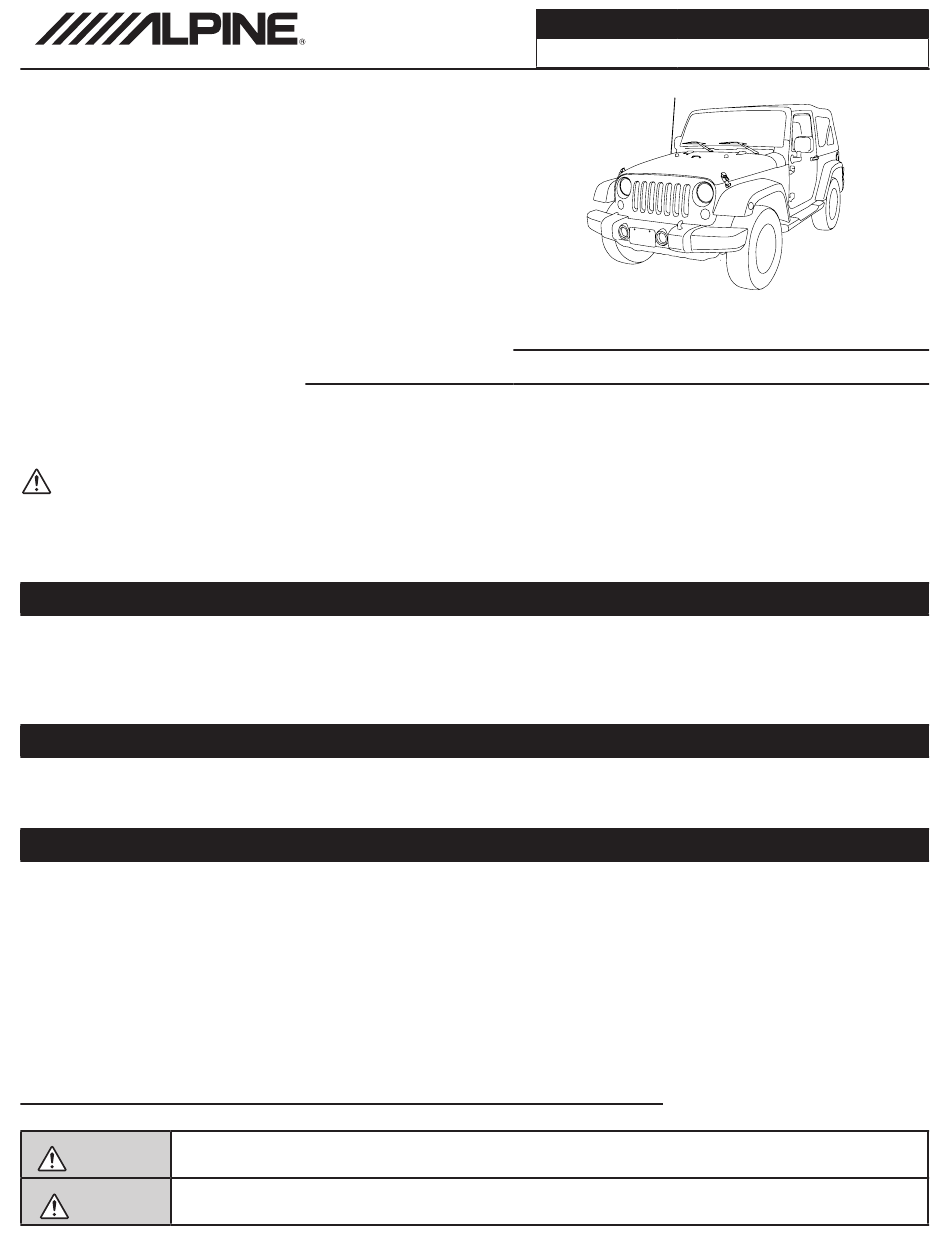

Jeep Wrangler
i207-WRA
Restyle Installation Manual
˜ Model: Wrangler
˜ Model Year: 2007-2017
* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is
not guaranteed if the manufacturer has made production changes to the listed vehicles above.
Warning: Before you begin wiring, remove the ground wire from the negative
terminal of the battery. Failing to do so can lead to electric shock, injury or damage
to equipment.
Introduction
˜ Congratulations on purchasing the i207-WRA. This installation manual is designed to take you through the
step-by-step installation of the i207-WRA into a 2007 and 2017 Jeep Wrangler. Please familiarize yourself with
the owners manual and if you still have additional questions please call 1-800-TECH-101.
Note:
˜ Design and specifications are subject to change without notice for improvement.
To Ensure Safe Use, Always Follow These Precautions
˜ The installation of this product requires specialized skills and experience. We recommend that you have the
product installed by an Alpine authorized dealer.
˜ Before you use this product, be sure to carefully read this installation manual and the separate user's manual
so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as
a result of failure to follow the instructions in the manuals.
˜ This manual includes a number of symbols that are intended to help you use the product safely, to prevent
harm to you and others, and to protect against damage to property. These symbols and their meanings are
listed below. Make sure you fully understand these symbols before you begin reading the main text.
Explanations of Injury and Damage That May Result from Incorrect Use
Ignoring the content marked by this indication and using the product incorrectly is
Warning
expected to lead to death or serious injury.
Ignoring the content marked by this indication and using the product incorrectly is only
Caution
expected to lead to injury or property damage.
i207-WRA
Model
Jeep
Wrangler
Jeep Wrangler
20201016v1
˜ 1/19
Year
2007-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i207-WRA and is the answer not in the manual?

Questions and answers

Related Manuals for Alpine i207-WRA

Summary of Contents for Alpine i207-WRA

  • Page 1 ˜ Before you use this product, be sure to carefully read this installation manual and the separate user's manual so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as a result of failure to follow the instructions in the manuals.
  • Page 2 Jeep Wrangler i207-WRA 20201016v1 ˜ 2/19 Types of Precautions Indicates actions that are forbidden Indicates actions that are (must not be performed) mandatory (must be performed) Forbidden Mandatory Indicates that disassembly is Marks content that should receive forbidden. your full attention.
  • Page 3 Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust. Doing so could lead to fire or damage equipment. Forbidden The installation and wiring of this product requires specialized skills and experience. Have the product installed by an Alpine authorized dealer.

  • Page 4: Tools Required

    Jeep Wrangler i207-WRA 20201016v1 ˜ 4/19 Tools Required Panel Removing Tool 7mm Sockets #2 Phillips Screwdriver Wire Cutters Extension Ratchet T20 Torx Accessory List Installation Kit Parts Rear Support Bracket Side Mounting Brackets Add-on Microphone (only for 2011-2017)

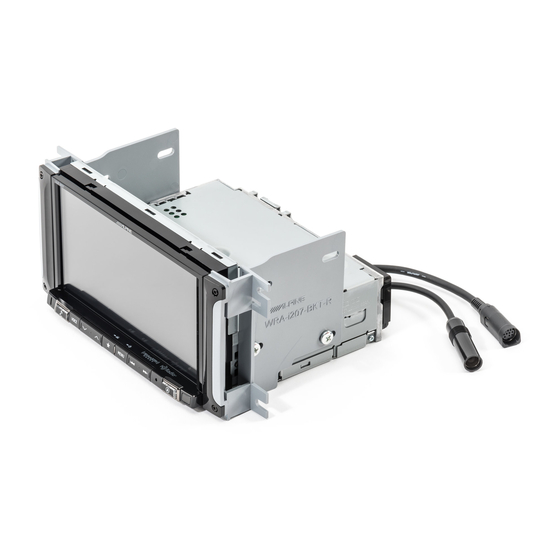

  • Page 5 Jeep Wrangler i207-WRA 20201016v1 ˜ 5/19 Accessory List Head Unit Box Parts (i207-WRA) iLX-207 Head Unit Round Head Screws (4pcs) Flat Head Screws (4pcs Not Used) AUX/Pre Out Harness GPS Antenna & Wire Hooks Documents OM QR Card Alpine Installation...
  • Page 6 Jeep Wrangler i207-WRA 20201016v1 ˜ 6/19 Programming the iDatalink Maestro Module INSTALL THE WEBLINK PLUG-IN REGISTER A WEBLINK ACCOUNT Go to: Go to: idatalinkmaestro.com/plugin and follow the installation steps. The idatalinkmaestro.com/register and complete the registration process. Maestro module must be programmed specifically for each vehicle A confirmation email will be sent to you requiring validation.

  • Page 7: Gps Antenna

    Jeep Wrangler i207-WRA 20201016v1 ˜ 7/19 Component Locations IMPORTANT: Follow the recommended component location shown below. Failure to do so, will result in poor GPS performance. Add-on Microphone iDatalink Maestro Module SiriusXM Tuner (Sold Separately) Jeep SINCE 1941 Jeep GPS Antenna Installation IMPORTANT: Follow the GPS antenna installation procedure shown below.
  • Page 8 Jeep Wrangler i207-WRA 20201016v1 ˜ 8/19 Factory Unit Disassembly Process (2007-2010 Only) Release 2 clips on the top of the bottom panel. This DISCONNECT THE BATTERY BEFORE CONTINUING. FAILURE TO DO SO WILL will expose two 7mm screws. Remove those.
  • Page 9 Jeep Wrangler i207-WRA 20201016v1 ˜ 9/19 Factory Unit Disassembly Process (2011-2017 Only) Remove the knee cover panel and extract (2) 7mm DISCONNECT THE BATTERY BEFORE CONTINUING. FAILURE TO DO SO WILL screws located to the right and left sides of the steering wheel column.

  • Page 10: Installation Instructions

    Route all cables through the lower opening of Mount the i207-WRA head unit using the factory the rear support bracket as shown below. 7mm screws and return factory panels to their...
  • Page 11 Jeep Wrangler i207-WRA 20201016v1 ˜ 11/19 Disconnecting the Uconnect® (only for 2011-2017 vehicles with factory Uconnect®) Remove the factory climate control panel. It is Disconnect the 24pin OEM connector. clipped on and can be removed with a panel removing tool. Extract the (2) 7mm bolts from Uconnect®...
  • Page 12 Jeep Wrangler i207-WRA 20201016v1 ˜ 12/19 i207-WRA Wiring Diagram AMPLIFIED VEHICLES WARNING! To Vehicle Connectors Failure to follow this procedure will Power/Speaker To OBDII Connector result in no audio from Navigation and 16-pin Green Connector Bluetooth sources. Audio Only No Video...
  • Page 13 Apple. Third party adapters may not work i207-WRA HDMI Usage With An Android Phone Do not use the head unit’s USB to power HDMI devices. This port is meant for Apple CarPlay, Android Auto, and USB ash drives.
  • Page 14 Jeep Wrangler i207-WRA 20201016v1 ˜ 14/19 i207-WRA Wiring Diagram To SiriusXM Tuner Vehicle Antenna GPS Antenna (Included) SPEED SENSOR To the vehicle speed pulse line (Green/White) CAMERA To Front, Rear or Side camera IDATALINK I/F To iDataLink module To AUX output device or iDataLink...
  • Page 15 Jeep Wrangler i207-WRA 20201016v1 ˜ 15/19 Wire Harness Pin Outs Remote Harness Radio Main Cam Aux Data White 22AWG Blue 22AWG Red 22AWG Black 22AWG Red 20AWG Blue 22AWG Black 22AWG Blue/White 22AWG White 22AWG Orange/White 22AWG Red/White 22AWG White 22AWG...
  • Page 16 Rear View Camera Rear View Camera 6-pin Black Connector WARNING! The use of this connection is intended for Alpine HCE-TCAM1-WRA rear view camera ONLY. Connection Of An External Amplifier RCA Extension Cable (sold separately) CAN I/F Remote Turn-On Lead (Blue/White)
  • Page 17 Jeep Wrangler i207-WRA 20201016v1 ˜ 17/19 Connection Of KAC-001 (Optional Accessory) KAC-001 Side View POWER RESET HEADUNIT OUTPUT UPDATE Reset USB port Button (Firmware updates only) Output 1 (Purple) BATT* (Yellow) Output 2 (White/Red) ACC (Red) Output 3 (Brown) GND (Black)

  • Page 18: Troubleshooting Guide

    Set Up Guide Turn the vehicle’s Ignition switch to ACC. Turn ON the i207-WRA by pressing any key. Select the user language and press OK. With the vehicle parked, engage the parking brake, release the parking brake and engage the parking brake again.
  • Page 19 Jeep Wrangler i207-WRA 20201016v1 ˜ 19/19 Troubleshooting Guide Continued Symptom Possible Cause Remedy One of the power wires does not Test the power wires with a digital multimeter have proper voltage and trace from there. 4 pin Maestro data cable is Check for proper connection or disconnected or damaged.
