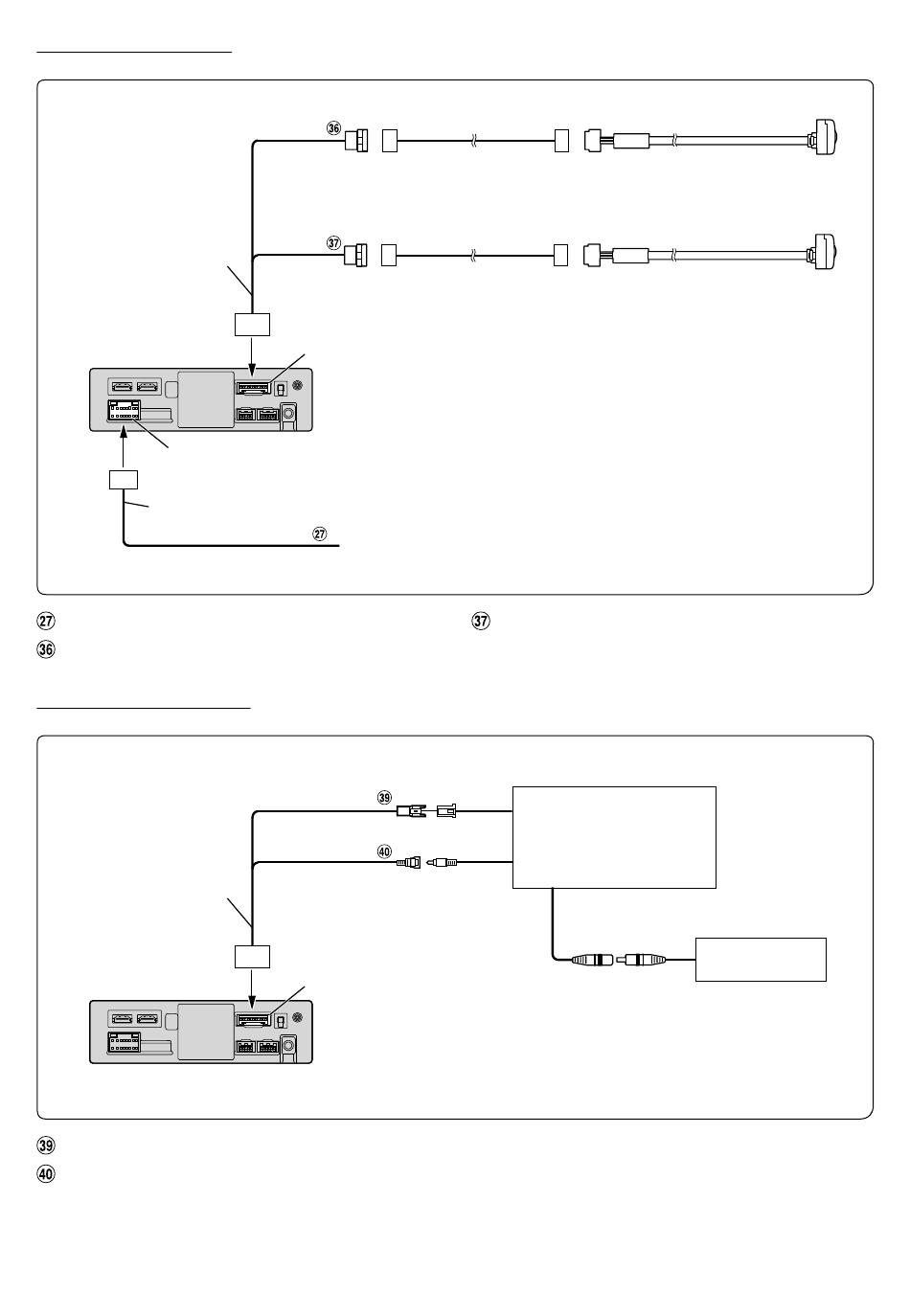

Connection of a Camera
CAMERA cable
Power Supply Connector
Power cable
Reverse Lead (Orange/White)
REAR CAMERA Input Connector
Connection of a Dash Cam
CAMERA cable
LIN Connector
Drive Recorder Input Connector
90
-EN
REAR CAMERA
Camera extension cable
(included with direct rearview camera)
FRONT CAMERA
Camera extension cable
(included with direct frontview camera)
CAMERA Connector
Reverse
Connect to the plus side of the car's reverse lamp.
(Orange/White)
LIN
Drive Recorder IN
(Yellow)
CAMERA Connector
Rear Camera (sold separately)
Front or Side Camera
(sold separately)
FRONT CAMERA Input Connector
Dash Cam
(sold separately)
Rear Camera
(sold separately)
