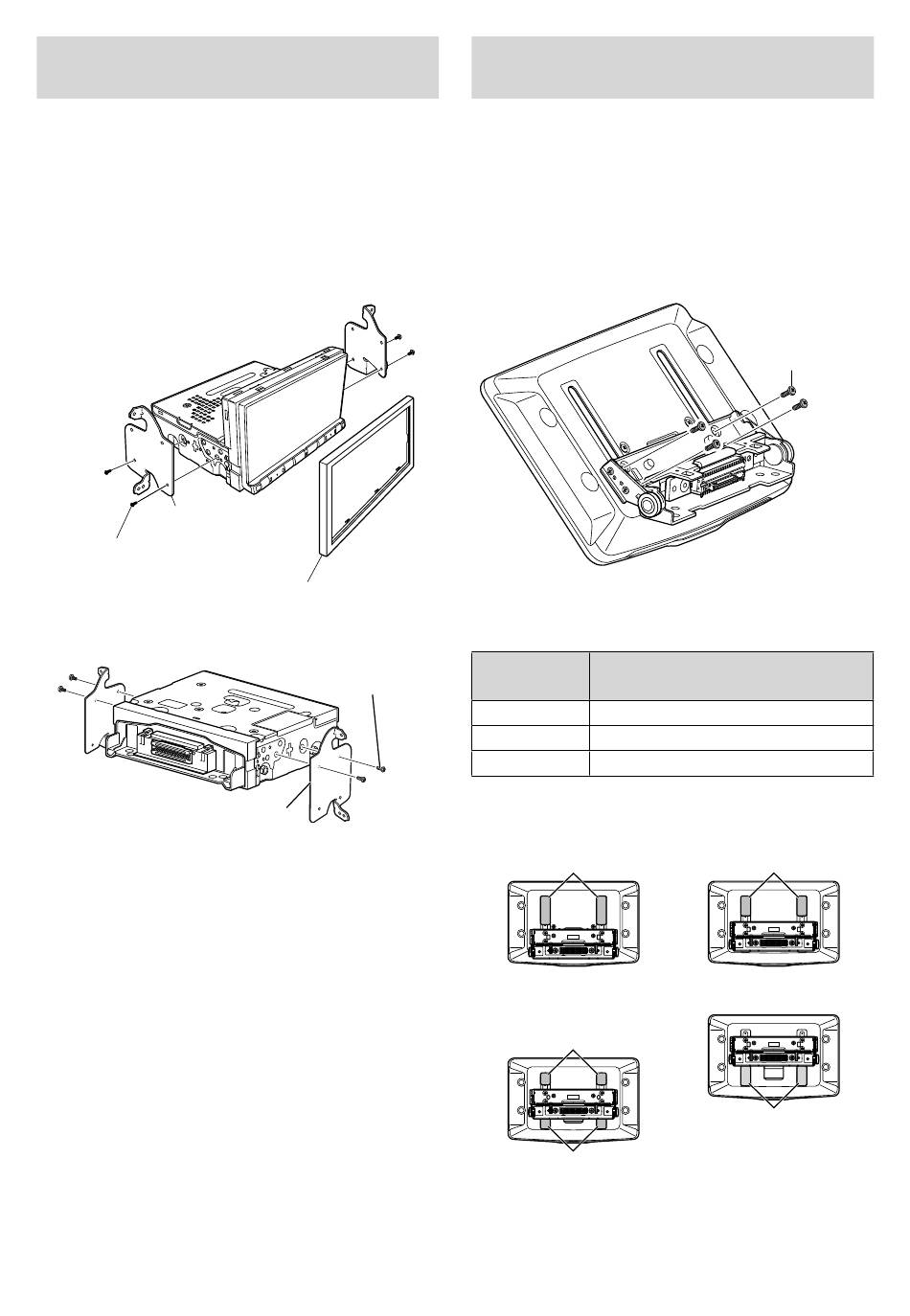

Installation example using the
Original Mounting Bracket
1
Mount the original mounting bracket to the
unit using the supplied screws.
• If you do not have the original mounting bracket,
mount the Double din KIT* (provided with the side
mounting bracket), etc. to the main unit.
* Sold separately.
■
iLX-507
Original Mounting
Bracket
Screws (M5×8)
(included)
Face plate (Included)
■
iLX-F509/iLX-F511
Original Mounting
Bracket
2
Connect all other leads of the unit according
to details described in the "Connections"
(page 82).
3
Mount the unit in a car.
• Fix the cables carefully. Do not damage them by
mounting them into movable parts, such as the seat
rail, or by locating them against sharp or pointed
edges.
4
Reattach the removed vehicle parts (panels,
etc.) or other aftermarket dash kit back onto
the vehicle.
80
-EN
Adjust the up-down position of the
Display unit (iLX-F509/iLX-F511)
Adjust the up-down position of the display according to the
mounting position on the vehicle before mounting the
display unit.
Default setting: 0 mm
1
2
Screws (M5×8)
(included)
2×50 mm:
2×35 mm:
2×20 mm:
0 mm
-30 mm
Remove the 4 screws on the rear of the
display unit, then adjust the up-down
position.
Attach the Sheet Rear in a position that aligns
with the up-down position of the display unit.
Sheet Rear
(Included)
for up-down position 0 mm or -60 mm
for up-down position -15 mm or -45 mm
for up-down position -30 mm
Sheet Rear
(2×50 mm)
Sheet Rear
(2×20 mm)
Sheet Rear
(2×20 mm)
Screws (M2.6× 8)
up-down position
-15 mm
Sheet Rear
(2×35 mm)
-45 mm
Sheet Rear
(2×35 mm)
