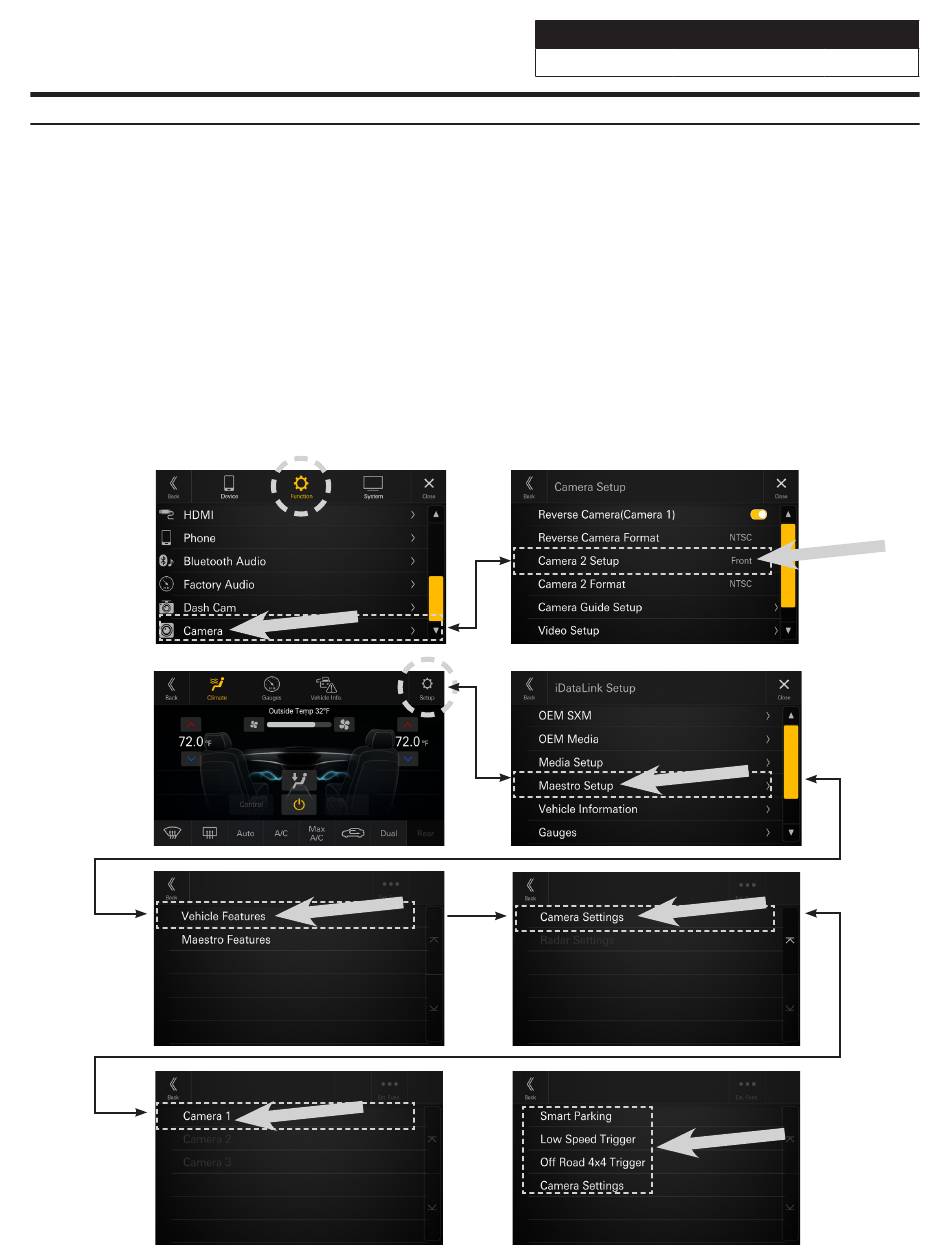

Setting Up Advanced Camera Features
1
Once in the setup menu (see page 21) select FUNCTION and then CAMERA.
2
Select CAMERA 2 SETUP. The camera 2 input needs to be set to FRONT or SIDE. This will let the Maestro
module know the second camera is active and that will enable the CAMERA SETTINGS in the Maestro Setup
Menu.
3
In the Maestro screen select SETUP.
4
Select MAESTRO SETUP. (Note this path in the settings can vary slightly with different Maestro firmwares).
5
Select VEHICLE FEATURES.
6
Select CAMERA SETTINGS.
7
Select Camera Assignment then CAMERA 1. The available options are FRONT CAMERA, RIGHT LANE WATCH
CAMERA, and LEFT LANE WATCH CAMERA.
8
Once CAMERA 1 is set the corresponding camera settings will then be available.
1
3
5
7
i509-WRA-JK
2
4
6
8
Jeep Wrangler
