www.teknikoffice.co.uk
Teknik
Congratulations. You
are now an adult.

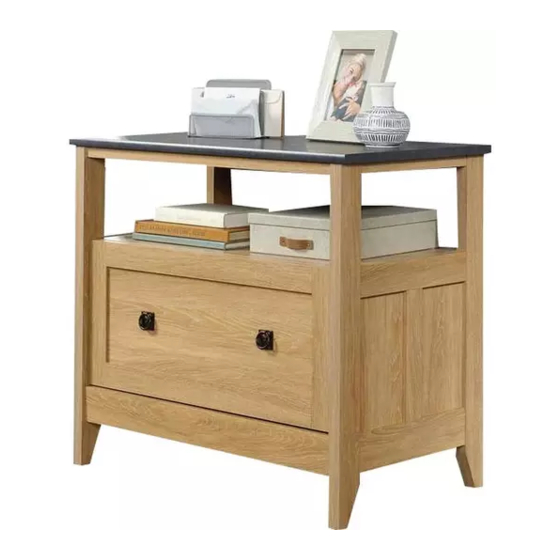

Home Study Lateral Filer
Model 5426133

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5426133 and is the answer not in the manual?

Questions and answers

Related Manuals for Teknik 5426133

Summary of Contents for Teknik 5426133

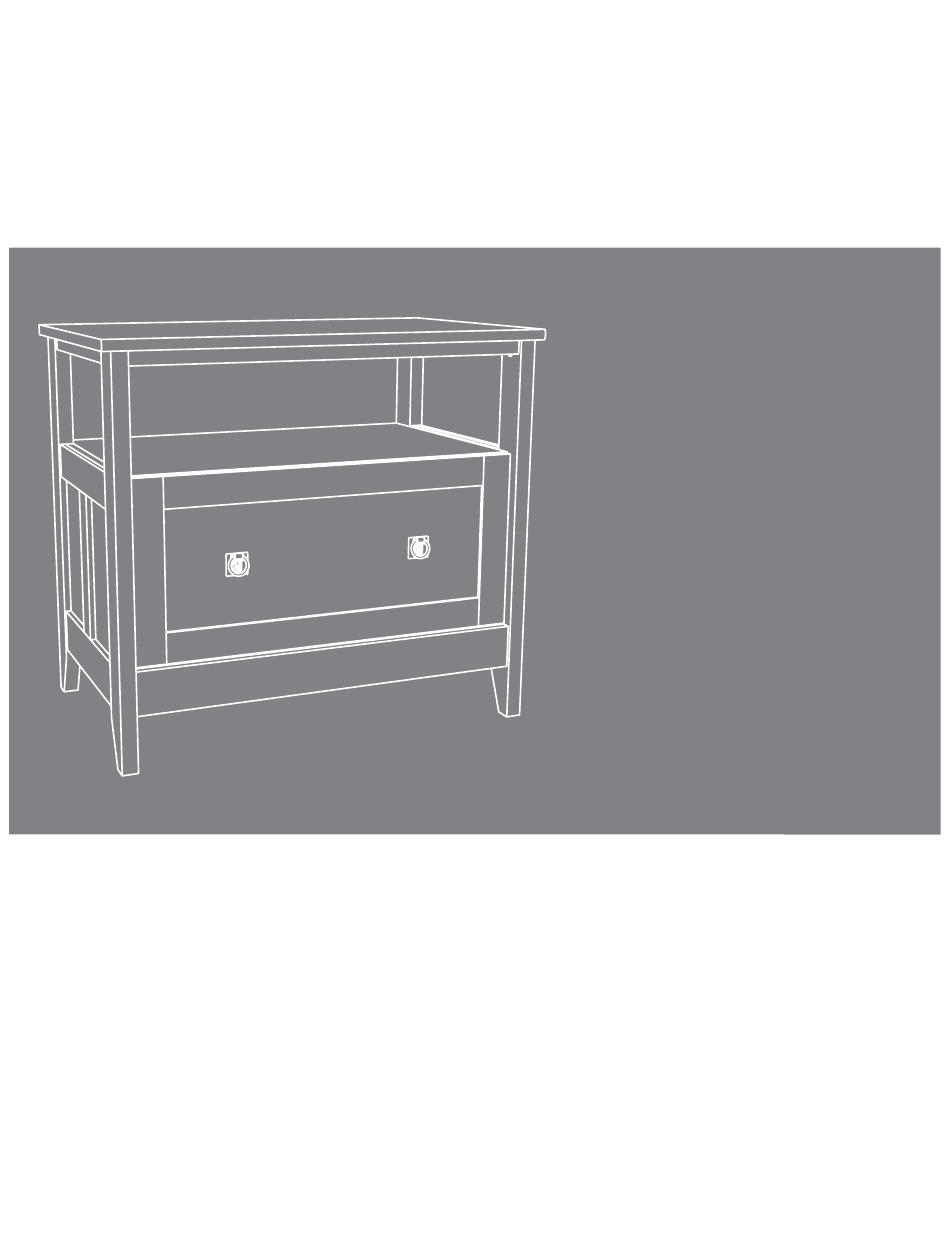

  • Page 1 Teknik Congratulations. You are now an adult. Home Study Lateral Filer Model 5426133...
  • Page 2 Table of Contents Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identification Assembly Steps 6-30 Page 2...

  • Page 3: Part Identification

    Now you know Part Identification our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identification to help identify similar parts. RIGHT END (1) D729 DRAWER BOTTOM (1)

  • Page 4: Hardware Identification

    Hardware Identification (EXTENSION SET SHOWN SEPARATED) EXTENSION RAIL - 2 EXTENSION SLIDE - 2 10A SLIDE CAM - 2 40MA 40MC FILE GLIDE - 2 FILE BAR - 2 FILE ROD - 2 FILE BRACKET - 2 HIDDEN CAM - 24 CAM DOWEL - 15 CAM SCREW - 9 WOOD DOWEL - 6...
  • Page 5 Hardware Identification å Screws are shown actual size. You may receive extra hardware with your unit. BLACK 9/16" LARGE HEAD SCREW - 14 3S GOLD 5/16" FLAT HEAD SCREW - 8 30S BLACK 1-9/16" FLAT HEAD SCREW - 5 BROWN 7/16" LARGE HEAD SCREW - 4 BLACK 9/16"...
  • Page 6 Step 1 å Assemble your unit on a carpeted floor or on the empty carton to avoid scratching your unit or the floor. å Turn six BLACK 9/16" FLAT HEAD SCREWS (32S) into the LEFT END (B) until the shoulders of the SCREWS rest on the surface of the LEFT END.
  • Page 7 Step Step 2 å Slide the LOWER END MOLDING (L) onto the LEFT END (B). Line up the groove in the MOLDING over the heads of the Just think. The sooner SCREWS in the LEFT END. you do this, the sooner you do something else.
  • Page 8 Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM DOWEL Insert the metal end of the CAM DOWEL into the HIDDEN CAM. Cam Dowel Cam Dowel Arrow Hole Hole Push a HIDDEN CAM into Metal end the part. The arrow in the HIDDEN CAM must point toward the hole in the Hidden Cam...
  • Page 9 Step 3 å Turn four CAM SCREWS (8F) into one set of the LEGS (D and E) as shown in diagram 1 å Insert two WOOD DOWELS (15F) into the LEGS (D and E) as shown in diagram 1. å Flip over the LEGS (D and E) as shown.
  • Page 10 Step 4 å Push four HIDDEN CAMS (1F) into the LEFT END (B). Arrow å Fasten the LEGS (D and E) to the LEFT END (B). Tighten four HIDDEN CAMS. å NOTE: Be sure the WOOD DOWELS in the LEGS insert into the RIGHT END.
  • Page 11 Step 5 å Separate the EXTENSION SLIDES (40MC) from the EXTENSION RAILS (40MA) as shown in the upper diagram below. Be prepared, the parts are greasy. å Fasten a EXTENSION RAIL (40MA) to the LEFT END (B). Use two GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #4.
  • Page 12 Step 6 å Push four HIDDEN CAMS (1F) into the SHELF (H). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. å Fasten the SHELF (H) to the LEFT END (B) and LEG (E). Tighten two HIDDEN CAMS. Arrow Metal end i t h...

  • Page 13: Hidden Cam

    Step 7 å Push three HIDDEN CAMS (1F) into the BACK (O). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. å Fasten the BACK (O) to the SHELF (H). Tighten three HIDDEN CAMS. Arrow Metal end (3 used) S u r...
  • Page 14 Step 8 å Push four HIDDEN CAMS (1F) into the BOTTOM (J). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. å Slide a BOTTOM MOLDING* (N) onto the notched edge of the BOTTOM (J). å...
  • Page 15 Step 9 å Fasten the BOTTOM (J) to the LEFT END (B). Tighten two HIDDEN CAMS. å NOTE: Be sure the WOOD DOWEL in the LEFT END insert into the BOTTOM. å Fasten the BOTTOM (J) to the BACK (O). Use three BLACK 1-15/16"...
  • Page 16 Step 10 å Turn six BLACK 9/16" FLAT HEAD SCREWS (32S) into the RIGHT END (A) until the shoulders of the SCREWS rest on the surface of the RIGHT END. å NOTE: Do not overtighten the SCREWS. å Slide the UPPER END MOLDING (K) onto the RIGHT END (A). Line up the grooves in the MOLDINGS over the heads of the SCREWS in the RIGHT END .
  • Page 17 Step 11 å Slide the LOWER END MOLDING (L) onto the RIGHT END (A). Line up the groove in the MOLDING over the heads of the SCREWS in the RIGHT END. å NOTE: The MOLDING should be even on both edges of the END.
  • Page 18 Step 12 å Turn four CAM SCREWS (8F) into the remaining set of the LEGS (D and E) as shown in diagram 1 å Insert two WOOD DOWELS (15F) into the LEGS (D and E) as shown in diagram 1. å...
  • Page 19 Step 13 å Push four HIDDEN CAMS (1F) into the RIGHT END (A). Arrow å Fasten the LEGS (D and E) to the RIGHT END (A). Tighten four HIDDEN CAMS. å NOTE: Be sure the WOOD DOWELS in the LEGS insert into the RIGHT END.
  • Page 20 Step 14 å Fasten a EXTENSION RAIL (40MA) to the RIGHT END (A). Use two GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #4. å NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram.
  • Page 21 Step 15 å Fasten the RIGHT END (A) and LEG (D) to the SHELF (H) and BOTTOM (J). Tighten four HIDDEN CAMS. Side Step: Make nachos. (Optional, but å NOTE: Be sure the WOOD DOWEL in the RIGHT END recommended.) insert into the BOTTOM.
  • Page 22 Step 16 å Carefully turn your unit onto its back edges. å Fasten the BALLASTS (P) to the BOTTOM (J). Use four BLACK 2-3/4" FLAT HEAD SCREWS (100S). Finished edge 100S BLACK 2-3/4" FLAT HEAD SCREW (4 used in this step) Page 22...
  • Page 23 Step 17 å Fasten seven ANGLE BRACKETS (5G) to the TOP (C). Use seven BLACK 9/16" LARGE HEAD SCREWS (1S) å Fasten the TOP (C) to the LEGS (D and E). Tighten four HIDDEN CAMS. å Fasten the MOLDINGS (F and G) to the TOP (F).
  • Page 24 Step 18 The tabs should insert freely With the palm of your hand, into the slots. Gently tilt the tap the DRAWER BOTTOM DRAWER SIDES side to side down into the groove. until the tabs slip into the slots. U n fi n i s h s u r f a c...
  • Page 25 Step 19 å Insert a SLIDE CAM (10A) into the DRAWER SIDES (D87 and D88). å Fasten the EXTENSION SLIDES (40MC) to the DRAWER SIDES (D87 and D88). Use four GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #4. å...
  • Page 26 Step 20 å Fasten the PULLS (22K) to the DRAWER FRONT (Q). Use two WASHERS (10I) and two SILVER 1/4" MACHINE SCREWS (61S). SILVER 1/4" MACHINE SCREW (2 used in this step) Page 26...
  • Page 27 Step 21 å Fasten the FILE BRACKETS (12B) to the DRAWER FRONT (Q) and DRAWER BACK (D61). Use four BROWN 7/16" LARGE HEAD SCREWS (6S). BROWN 7/16" LARGE HEAD SCREW (4 used in this step) Page 27...
  • Page 28 Step 22 å Press one of the FILE GLIDES (6B) over the RIGHT DRAWER SIDE (D87) on the drawer. The FILE GLIDES are necessary to hang files. å Slide the FILE RODS (9B) through the FILE BARS (1B), FILE BRACKET (12B) and into the holes shown in the FILE GLIDE (6B) on the RIGHT DRAWER SIDE (D87).
  • Page 29 Step 23 å Carefully stand your unit upright. Pro Tip: Lift with your å To insert a drawer into your unit, line up the EXTENSION SLIDES legs. And, you know, on the drawer with the EXTENSION RAILS on the unit and push the your arms.
  • Page 30 Step 24 å To make adjustments to the drawer, loosen SCREW #4 in the SLIDES a 1/4 turn, then turn the cam clockwise or counter- clockwise. Notice how the drawer raises or lowers as you turn the cam. By adjusting the drawer this way, it will help the DRAWER FRONT line up better when closed.
  • Page 31 CAUTION Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded drawers. •...
