Back Of The Switch; Console Port; Power Connector - HP ProCurve 2824 Install Manual

Introducing the Switch

Back of the Switch

Back of the Switch

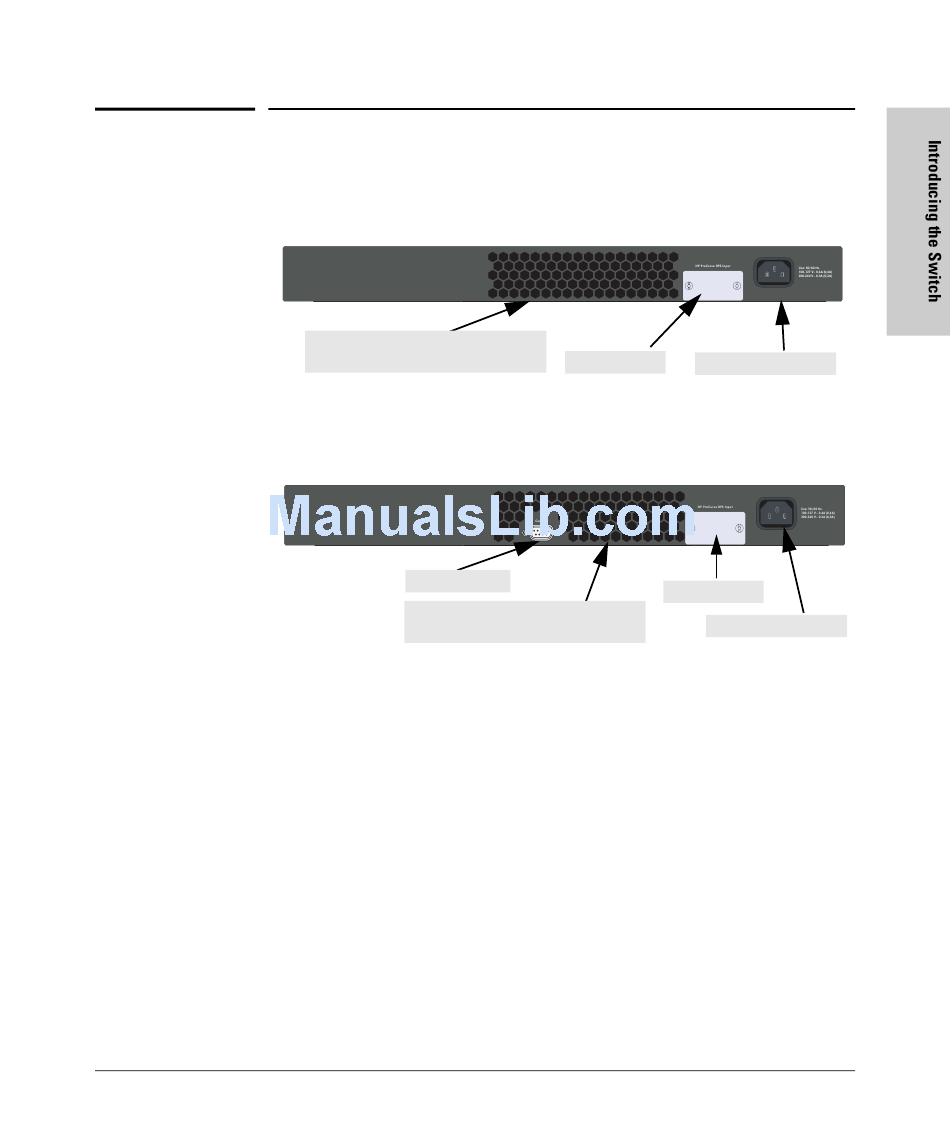

HP ProCurve Switch 2824 (HPJ4903A)
Cooling vents - make sure this is not
obstructed for proper switch operation
RPS Input
AC power connector
HP ProCurve Switch 2848 (HPJ4904A)

Console Port

RPS Input
Cooling vents - make sure this is not
AC power connector
obstructed for proper switch operation
Console Port
This port is used to connect a console to the Switch 2800 Series devices by
using the serial cable supplied with the switch. The console port is located on
the front of the Switch 2824 and on the back of the Switch 2848. This
connection is described under "Connect a Console to the Switch" in chapter
2, "Installing the Switch." The console can be a PC or workstation running a
VT-100 terminal emulator, or a VT-100 terminal.

Power Connector

The Switch 2800 Series devices do not have a power switch; they are powered
on when connected to an active AC power source. These switches automati-
cally adjust to any voltage between 100--240 volts and either 50 or 60 Hz.
No voltage range settings are required.
1-9
