Summary of Contents for Spartus ProARC 500CEL
- Page 1 SPARTUS® ProARC 500CEL User’s manual...
- Page 2 Therefore, our offer covers such a wide assortment of products. Thank you very much for your trust in our company. We would like to invite you to familiarize yourself with the remaining products and offer at www.spartus. info or directly at a local distributor of SPARTUS® products.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING ....2 1.1 General safety rules ................................... 2 1.2 Electric shock can kill ................................2 1.3 Welding arc radiation can be dangerous ......................... 3 1.4 Vapours and gases can be dangerous ..........................3 1.5 Noise can be harmful ................................ -
Page 4: Safe Use - Hazards Associated With Arc Welding And Plasma Cutting
USER’S MANUAL 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING Arc welding and plasma cutting are processes feeder fitted with spool and harness). Care that can pose hazards for the operator and per- shall be taken during manual handling. sons in his vicinity. -
Page 5: Welding Arc Radiation Can Be Dangerous
USER’S MANUAL • Power supply must never be connected Such radiation can be direct or reflected from before the accessories of SK sockets/con- surfaces such as bright metals and light colo- nectors are properly installed in the device. ured objects. •... -
Page 6: Noise Can Be Harmful
USER’S MANUAL Arc welding and allied processes produce wel- in case of an emergency, are in the imme- ding fume which may pollute the atmosphere diate vicinity. surrounding the work. Welding fume is a vary- • In closed rooms or in certain circumstances ing mixture of airborne gases and fine particles during outdoor operations, it may be re- which, if inhaled or swallowed, constitute a... -
Page 7: Fire Or Explosion Hazard
USER’S MANUAL source, observed for an adequate period after its c) effective maintenance of sound protection termination. devices, • „Hot spots” and immediate surroundings d) indication as „ear protection areas” where should be observed until their temperature applicable, has dropped to normal. e) restriction of entry to these „ear protection 1.6.2 Explosion hazard areas”... -
Page 8: Other Hazards
USER’S MANUAL 1.7.4 Moving elements can be dangerous cylinder valve socket when the valve is being opened. • Special valve shield should always be in- stalled during cylinder transportation or when the cylinder is not used. OTHER HAZARDS Arc welding and allied processes carrying other All protective elements and device housing hazards not listed before. -
Page 9: Symbols Used In Instructions
USER’S MANUAL WARNING The maximum voltage of 15kV. Accidental pressing of the microswitch results in unintentional arc ignition. Never bring a bare hand close to the electrode, when the device is connected to a power source. 1.9 SYMBOLS USED IN INSTRUCTIONS We use this symbol to pay your attention about important information. -
Page 10: Assesment Of Area
Methods of reducing electromagnetic interference are listed in detail in the standard EN 60974-9 – „Arc welding equipment – Part 9: Installation and use”. 4. CONFORMITY WITH STANDARDS SPARTUS® ProARC 500CEL is in conformity with the relevant Union harmonization legislation: LVD 2014/35/UE Low Voltage Directive... -
Page 11: General Description

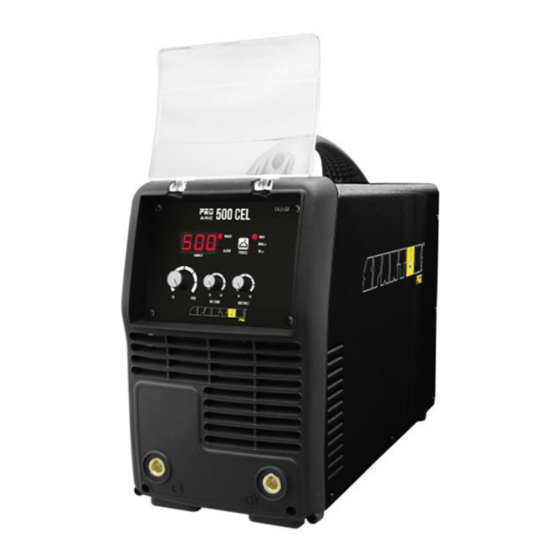

SPARTUS® ProARC 500CEL Strong, modern, inverter stick welder, constructed on the basis of IGBTs. It allows MMA welding with coated electrodes and TIG Lift DC welding with arc ignition by rubbing. ProARC 500CEL is powered from three phase 400V source power. -
Page 12: Technical Parameters Of Device
Dimensions [mm] 620 × 240 × 450 7. INSTALLATION AND USE WARNING! SPARTUS® ProARC series is intended for professional and industrial applications. Installation and use of the device may only be carried out appropriately trained professionals. It is forbidden to carry out work related to metalworking (for example grinding, drilling, etc.) near the welding device, especially near the vents. -
Page 13: Proper Cooling
USER’S MANUAL Qualified person (def.) A person who has gained the relevant technical education, training took place and / or gained experience to perceive the risk and avoid hazards during use of the product (IEC 60204-1). 7.1 PROPER COOLING Unit should stand stable on dry and level surface. Avoid too much slope and slippery surfaces. Regularly check that the vents (inlet, outlet) are not covered. -
Page 14: Scheme Of Connection Of Power Plug Connector 400V
USER’S MANUAL 7.4 SCHEME OF CONNECTION OF POWER PLUG CONNECTOR 400V L1, L2, L3 Phase conductors Protective conductor Neutral conductor WARNING! It is forbidden bridging PE and N cables. it may cause serious risk of electric shock! In some cases, colours of power cords may vary from those shown on diagram. For example when the device has a four-wired three phase power cord. -
Page 15: Installation - Tig Welding
USER’S MANUAL Power cable Work clamp Welded element Return cable Work cable Electrode holder 7.7 INSTALLATION – TIG WELDING Before connecting hardware to the device, make sure that the device is disconnected from power source and switch is in the OFF position. 7.7.1 Connecting the gas cylinder 1. -
Page 16: Device Control Panel - Using
USER’S MANUAL 7.8 DEVICE CONTROL PANEL – USING Welding method selection button: Digital meter MMA / MMA (VRD) / TIG (Lift) Welding current adjustment knob Indicator – MMA welding Hot Start adjustment knob Indicator – MMA welding (VRD) Arc Force adjustment knob Indicator –... -
Page 17: Environmental Protection
10. TROUBLESHOOTING Not all problems with functioning of the device, are the evidence of failure. You can independently carry out an analysis in search of probable failure. In case of doubt, please contact to SPARTUS® dealer or authorized service center. - Page 18 Notes...
- Page 19 A masterly combination of high quality production, excellent parameters and ergonomics – these are fea- tures of the SPARTUS® Master series of devices, which were created with demanding welding jobs in mind. Precision, functionality, excellent parameters and resistance to high workloads –...
- Page 20 Videopresentation of products Subscribe to the channel SPARTUS.INFO...
