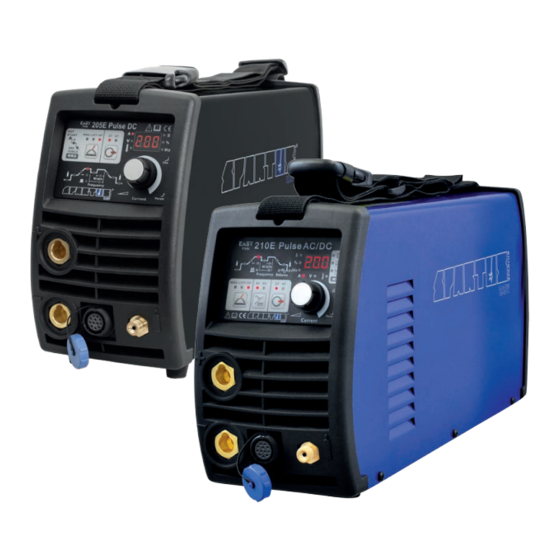

- Page 1 Semiautomatic welder SPARTUS® EasyTIG 205E Pulse DC 210E Pulse AC/DC User’s manual...
- Page 2 Therefore, our offer covers such a wide assortment of products. Thank you very much for your trust in our company. We would like to invite you to familiarize yourself with the remaining products and offer at www.spartus. info or directly at a local distributor of SPARTUS® products..
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING ....2 1.1 General safety rules ................................... 2 1.2 Electric shock can kill ................................2 1.3 Welding arc radiation can be dangerous ......................... 3 1.4 Vapours and gases can be dangerous ..........................3 1.5 Noise can be harmful ................................ -
Page 4: Safe Use - Hazards Associated With Arc Welding And Plasma Cutting
USER’S MANUAL 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING Arc welding and plasma cutting are processes feeder fitted with spool and harness). Care that can pose hazards for the operator and per- shall be taken during manual handling. sons in his vicinity. -
Page 5: Welding Arc Radiation Can Be Dangerous
USER’S MANUAL • Power supply must never be connected Such radiation can be direct or reflected from before the accessories of SK sockets/con- surfaces such as bright metals and light colo- nectors are properly installed in the device. ured objects. •... -
Page 6: Noise Can Be Harmful
USER’S MANUAL Arc welding and allied processes produce wel- in case of an emergency, are in the imme- ding fume which may pollute the atmosphere diate vicinity. surrounding the work. Welding fume is a vary- • In closed rooms or in certain circumstances ing mixture of airborne gases and fine particles during outdoor operations, it may be re- which, if inhaled or swallowed, constitute a... -
Page 7: Fire Or Explosion Hazard
USER’S MANUAL source, • The surroundings of the work should be observed for an adequate period after its c) effective maintenance of sound protection termination. devices, • „Hot spots” and immediate surroundings d) indication as „ear protection areas” where should be observed until their temperature applicable, has dropped to normal. -
Page 8: Other Hazards
USER’S MANUAL • Keep your face and head away from the cy- Never aim the burner tip of the welding torch linder valve socket when the valve is being at your face, eyes or other people. opened. 1.7.4 Moving elements can be dangerous •... -
Page 9: Symbols Used In Instructions
USER’S MANUAL WARNING The maximum voltage of 15kV. Accidental pressing of the microswitch results in unintentional arc ignition. Never bring a bare hand close to the electrode, when the device is connected to a power source. 1.9 SYMBOLS USED IN INSTRUCTIONS We use this symbol to pay your attention about important information. -
Page 10: Assesment Of Area
Methods of reducing electromagnetic interference are listed in detail in the standard EN 60974-9 – „Arc welding equipment – Part 9: Installation and use”. 4. CONFORMITY WITH STANDARDS Devices SPARTUS® EasyTIG 205E Pulse DC and EasyTIG 210E Pulse AC/DC are in conformity with the relevant Union harmonization legislation: LVD 2014/35/UE... -
Page 11: General Description
These are devices designed and manufactured in order to fieldwork. Small, light and versatile. Ideal for welding steel and stainless steels. Built-in pulse welding mode allows you to weld very thin elements. SPARTUS® EasyTIG 205E Pulse DC and EasyTIG 210E Pulse AC/DC will work on light productions. -
Page 12: Technical Parameters Of Device
USER’S MANUAL Relative humidity of the air up to 50% at +40°C up to 90% at +20°C Ambient air free from abnormal amounts of dust, acids, corrosive substances etc. other than those generated by the welding process Base of the welding power source inclined up to 10°... -
Page 13: Installation And Use
* LIFT – the arc ignition by rubbing the electrode on the workpiece. HF – contactless arc ignition. 7. INSTALLATION AND USE WARNING! SPARTUS® EasyTIG machines are intended for professional and industrial applications. Installation and use of the device may only be carried out appropriately trained professionals. It is forbidden to grinding and/or carrying out other locksmith works or mechanical working of metal in the vicinity of the ventilation opening of unit. -
Page 14: Description Of Construction
USER’S MANUAL 7.3 DESCRIPTION OF CONSTRUCTION Transport handle Shield gas connector – for TIG torch Control panel Unit cover SK socket „+” Toggle switch ON/OFF SK socket „-” Power cable Socket: TIG torch control plug Shield gas input joint 7.4 CONNECTING TO POWER SUPPLY Requirements for power network parameters (voltage, permissible range of mains voltage fluctuations etc.) are given in the table with technical parameters of device and on the rating plate of welding machine. -
Page 15: Installation - Tig Welding
USER’S MANUAL 7.5 INSTALLATION – TIG WELDING Before connecting hardware and shielding gas to the device, make sure that the device is discon- nected from power source and switch is in the OFF position. 7.5.1 Connecting the gas cylinder 1. The cylinder with appropriate shielding gas (in TIG welding is an inert gas, frequently argon, helium or a mixture of both), should stand upright and be secured against tipping over in accordance with safety requirements. -
Page 16: Installation - Mma Welding
USER’S MANUAL INSTALLATION – MMA WELDING Before connecting hardware and shielding gas to the device, make sure that the device is discon- nected from power source and switch is in the OFF position. The welding polarity depends on the type of electrodes used. Before connecting the cables refer to the requirements specified by the manufacturer of electrodes. - Page 17 USER’S MANUAL Dual-function adjustment knob: selection Indicators inform the units that are shown and adjustment of parameter on the display: A – welding current amps Digital meter V – voltage Volt S – the time in seconds, A diagram of TIG parameters % –...
- Page 18 AC BALANCE – SCALE 10 – 99% of EN ADJUSTABLE PARAMETER: EN When TIG AC welding comes to the cyclic chan- ge of welding polarization. SPARTUS® EasyTIG 205E DC and EasyTIG 210E AC/DC allows to ad- just the percentage of Electrode Negative (EN) used during the AC welding mode.
- Page 19 USER’S MANUAL 7.7.5 Course of TIG welding process – 2T During TIG function 2T, you can not set the current parameters of the initial and final current. Press the gun switch and hold it. Electromagnetic gas valve is turned on. The shielding gas stars to flow.
- Page 20 USER’S MANUAL 7.7.6 Course of TIG welding process (4T) During TIG 4T, it is possible to preset the current value of the initial and final current. With this feature, you can prevent flooding at the beginning of the weld and fill the crater formed at the end of the weld.
-
Page 21: Maintenance
USER’S MANUAL 7.7.7 MMA welding – adjustment Hot Start Welding current [A] Arc Force 8. MAINTENANCE WARNING! Before performing any maintenance or repairing of device, disconnect welding machine from the power source and wait at least 5 minutes. The voltage accumulated in capacitors should be discharged at this time to a safe level. -
Page 22: Troubleshooting
10. TROUBLESHOOTING Not all problems with functioning of the device, are the evidence of failure. You can independently carry out an analysis in search of probable failure. In case of doubt, please contact to SPARTUS® dealer or authorized service center. - Page 23 USER’S MANUAL Improper welding parameters Poor quality of weld Too little flow of the shielding gas or its quality is inadequate. Excessively worn of tungsten electrode MMA WELDING PROBLEMS Incorrect connection of return cable or there is no connection of return cable. Arc ignition problem.
- Page 24 Notes...
- Page 25 Notes...
- Page 26 Notes...
- Page 27 A masterly combination of high quality production, excellent parameters and ergonomics – these are fea- tures of the SPARTUS® Master series of devices, which were created with demanding welding jobs in mind. Precision, functionality, excellent parameters and resistance to high workloads –...
- Page 28 Videopresentation of products Subscribe to the channel SPARTUS.INFO...
