  • Page 1: Table Of Contents

    HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING 2. ELECTROMAGNETIC FIELD (EMF) 3. ELECTROMAGNETIC COMPATIBILITY (EMC) 4. CONFORMITY WITH STANDARDS 5. GENERAL DESCRIPTION 6. TECHNICAL SPECIFICATIONS 7. INSTALLATION AND USE 8. MAINTENANCE 9. ENVIRONMENTAL PROTECTION 10. TROUBLESHOOTING 11. NOTES www.spartus.info...

  • Page 2: Safe Use - Hazards Associated With Arc Welding And Plasma Cutting

    SPARTUS Easy TIG * USER’S MANUAL 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING Arc welding and plasma cutting are processes feeder fitted with spool and harness). Care that can pose hazards for the operator and shall be taken during manual handling..
  • Page 3 SPARTUS Easy TIG * USER’S MANUAL components of the device. • infrared (heat) radiation (can damage skin • Power supply must never be connected and eyes). before the accessories of DINSE sockets/ Such radiation can be direct or reflected connectors are properly installed in the from surfaces such as bright metals and light device.
  • Page 4 SPARTUS Easy TIG * USER’S MANUAL 1.4. VAPOURS AND GASES CAN BE vapours during welding operations. Ensure DANGEROUS proper ventilation and/or mechanical welding exhaust draught to keep vapours and gases away from the breathing zone. • When welding is carried out in a confined...
  • Page 5 SPARTUS Easy TIG * USER’S MANUAL In case of doubt, checks by an expert should welder’s boots, protective hood/cap, etc. be made to establish noise levels in any • When no welding operations are carried particular environment, and, if these are...
  • Page 6 SPARTUS Easy TIG * USER’S MANUAL • Ensure gas cylinders are at a safe distance 1.7.3. WELDING WIRE CAN CAUSE INJURIES from places where electric welding or cutting operations are to be performed, away from other sources of heat, sparks or flames.

  • Page 7: Electromagnetic Field (Emf)

    SPARTUS Easy TIG * USER’S MANUAL 1.8. OTHER INFORMATIONS When performing welding work, you must apply equally to the health and safety requirements contained in the current normative acts, applicable in your country. WARNING: The maximum voltage of 15kV. Accidental pressing of the microswitch results in unintentional arc ignition.

  • Page 8: Electromagnetic Compatibility (Emc)

    SPARTUS Easy TIG * USER’S MANUAL 3. ELECTROMAGNETIC COMPATIBILITY (EMC) WARNING: This Class A equipment is not intended for use in residential locations where the electrical power is provided by the public low-voltage supply system. There can be potential difficulties in ensuring electromagnetic compatibility in those locations due to conducted as well radiated radio-frequency disturbances.

  • Page 9: Conformity With Standards

    SPARTUS Easy TIG * USER’S MANUAL 4. CONFORMITY WITH STANDARDS The SPARTUS Easy TIG 205E Pulse DC is in conformity with the relevant Union harmonization legislation: LVD 2014/35/UE Low Voltage Directive EMC 2014/30/UE Electromagnetic Compatibility Directive harmonized standards: EN 60974-1 Arc Welding Equipment –...

  • Page 10: Technical Specifications

    SPARTUS Easy TIG * USER’S MANUAL 6. TECHNICAL SPECIFICATIONS 6.1. OPERATION, STORAGE AND TRANSPORT Conditions during operation, storage and transport Range of ambient air temperature during operation -10°C to +40°C up to 50% at 40°C Relative humidity of the air up to 90% at 20°C...
  • Page 11 SPARTUS Easy TIG * USER’S MANUAL 6.2. TECHNICAL PARAMETERS OF DEVICE TIG 205E Pulse DC Input ~1 x 230V ±10% 50 / 60 Hz Welding Current TIG [A] 5 − 200 Duty cycle [%] TIG PARAMETERS Start Amps, End Amps ✓...

  • Page 12: Installation And Use

    SPARTUS Easy TIG * USER’S MANUAL 7. INSTALLATION AND USE WARNING: SPARTUS Easy TIG05E Pulse DC is intended for professional and industrial applications. Installation and use of the device may only be carried out appropriately trained professionals. Qualified person (def.)

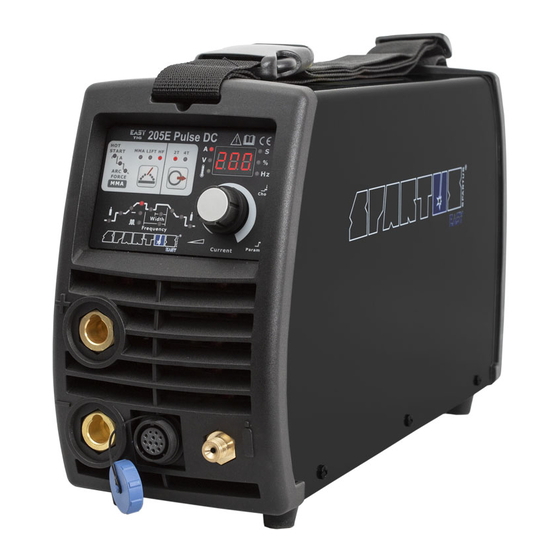

  • Page 13 SPARTUS Easy TIG * USER’S MANUAL 7.3. DESCRIPTION OF CONSTRUCTION DESCRIPTION DESCRIPTION Transport handle Shield gas connector – for TIG torch Control panel Unit cover DINSE socket „+” Toggle switch ON/OFF DINSE socket „-” Shield gas input joint Socket: TIG torch control plug 7.4.
  • Page 14 SPARTUS Easy TIG * USER’S MANUAL • Check: mechanical condition of the power cord and plug. The connection status of the power cord with plug and unit (loose not allowed). If the power cord or plug is dama- ged or loose connection is between them, it is forbidden to connect the welder until fault has been rectified.
  • Page 15 SPARTUS Easy TIG * USER’S MANUAL 7.6. INSTALLATION – MMA WELDING Before installing equipment to the welder, make sure that the device is disconnected from the power source and power switch (8) is in the OFF position. Welding polarity depends on type of used electrodes. Before connecting the cables refer to the requirements specified by the manufacturer of electrodes.
  • Page 16 SPARTUS Easy TIG * USER’S MANUAL 7.7 CONTROL PANEL - USING 7.7.1. CONTROL PANEL - DESCRIPTION 1. Digital meter 2. Dual-function adjustment knob: selection and adjustment of parameter. 3. A diagram of TIG parameters 4. MMA welding parameters 5. Welding method: MMA –...
  • Page 17 SPARTUS Easy TIG * USER’S MANUAL 7.7.2. TIG PULSE WELDING – ADJUSTMENT A. Pre-gas. Gas pre-flow time. (2T/4T) B. Starting current (4T). C. Up slope time. (2T/4T) D. Welding current. (2T/4T) E. Down slope time. (2T/4T) F. Ending current (4T) G.
  • Page 18 SPARTUS Easy TIG * USER’S MANUAL 7.7.4. COURSE OF TIG WELDING PROCESS - 2T During TIG function 2T, you can not set the current parameters of the initial and final current. Press the gun switch and hold it. Electromagnetic gas valve is turned on.
  • Page 19 SPARTUS Easy TIG * USER’S MANUAL 7.7.5. COURSE OF TIG WELDING PROCESS - 4T During TIG 4T, it is possible to preset the current value of the initial and final current. With this feature, you can prevent flooding at the beginning of the weld and fill the crater formed at the end of the weld.

  • Page 20: Maintenance

    SPARTUS Easy TIG * USER’S MANUAL 7.7.6. MMA WELDING – ADJUSTMENT M1 HOT START M2 Welding current [A] M3 Arc Force 7.8 Name plate Name plate and the serial number is located underneath the device. 8. MAINTENANCE WARNING: Before performing any maintenance or repairing of device, disconnect welder from the power source and wait at least 5 minutes.

  • Page 21: Environmental Protection

    10. TROUBLESHOOTING Not all problems with functioning of the device, are the evidence of failure. You can independently carry out an analysis in search of probable failure. In case of doubt, please contact to SPARTUS ® dealer or authorized service center.
  • Page 22 SPARTUS Easy TIG * USER’S MANUAL Trouble Probable reason Solution PROBLEMS WITH THE DEVICE • Incorrectly connected • Connect the device to a power. Switching on network that meets the voltage control system. requirements given in manual or in nameplate of the device.
  • Page 23 SPARTUS Easy TIG * USER’S MANUAL Trouble Probable reason Solution The problem with TIG arc • HF board is broken. • Contact service. ignition (strikes only by • Device is damaged • Contact service friction). There is no spark when HF works.

  • Page 24: Notes

    SPARTUS Easy TIG * USER’S MANUAL Trouble Probable reason Solution • Incorrect welding • Connect the return cable polarity. and electrode holder. According to welding polarity recommended by the manufacturer of the electrodes. Unstable arc, excessive spatter welding, poor weld •...
