- Page 1 Inverter welding machine SPARTUS® EasyTIG 203P DC 208P AC/DC 205P DC 210P AC/DC User’s manual...
- Page 2 Therefore, our offer covers such a wide assortment of products. Thank you very much for your trust in our company. We would like to invite you to familiarize yourself with the remaining products and offer at www.spartus. info or directly at a local distributor of SPARTUS® products.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING ....2 1.1 General safety rules ................................... 2 1.2 Electric shock can kill ................................2 1.3 Welding arc radiation can be dangerous ......................... 3 1.4 Vapours and gases can be dangerous ..........................3 1.5 Noise can be harmful ................................ -
Page 4: Safe Use - Hazards Associated With Arc Welding And Plasma Cutting
USER’S MANUAL 1. SAFE USE – HAZARDS ASSOCIATED WITH ARC WELDING AND PLASMA CUTTING Arc welding and plasma cutting are processes feeder fitted with spool and harness). Care that can pose hazards for the operator and per- shall be taken during manual handling. sons in his vicinity. -
Page 5: Welding Arc Radiation Can Be Dangerous
USER’S MANUAL • Power supply must never be connected Such radiation can be direct or reflected from before the accessories of SK sockets/con- surfaces such as bright metals and light colo- nectors are properly installed in the device. ured objects. •... -
Page 6: Noise Can Be Harmful
USER’S MANUAL Arc welding and allied processes produce wel- in case of an emergency, are in the imme- ding fume which may pollute the atmosphere diate vicinity. surrounding the work. Welding fume is a vary- • In closed rooms or in certain circumstances ing mixture of airborne gases and fine particles during outdoor operations, it may be re- which, if inhaled or swallowed, constitute a... -
Page 7: Fire Or Explosion Hazard
USER’S MANUAL source, • The surroundings of the work should be observed for an adequate period after its c) effective maintenance of sound protection termination. devices, • „Hot spots” and immediate surroundings d) indication as „ear protection areas” where should be observed until their temperature applicable, has dropped to normal. -
Page 8: Other Hazards
USER’S MANUAL • Keep your face and head away from the cy- Never aim the burner tip of the welding torch linder valve socket when the valve is being at your face, eyes or other people. opened. 1.7.4 Moving elements can be dangerous •... -
Page 9: Symbols Used In Instructions
USER’S MANUAL WARNING The maximum voltage of 15kV. Accidental pressing of the microswitch results in unintentional arc ignition. Never bring a bare hand close to the electrode, when the device is connected to a power source. 1.9 SYMBOLS USED IN INSTRUCTIONS We use this symbol to pay your attention about important information. -
Page 10: Assesment Of Area
Methods of reducing electromagnetic interference are listed in detail in the standard EN 60974-9 – „Arc welding equipment – Part 9: Installation and use”. 4. CONFORMITY WITH STANDARDS Devices SPARTUS® EasyTIG 203P DC, 205P DC, 208P AC/DC i 210P AC/DC are in conformity with the relevant Union harmonization legislation: LVD 2014/35/UE... -
Page 11: General Description

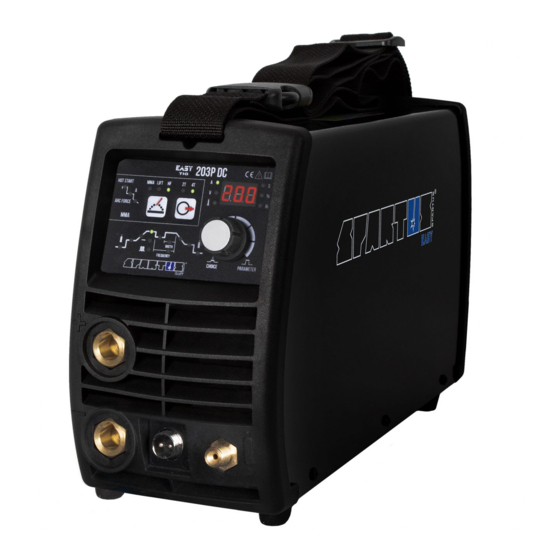

USER’S MANUAL 5. GENERAL DESCRIPTION SPARTUS® EasyTIG 203P DC, 205P DC, 208P AC/DC and 210P AC/DC Modern digitally controlled inverter welding machines, costructed on the basis of IGBTs and PWM technology. Allows welding TIG and MMA. They are powered with single-phase 230V source power. -
Page 12: Technical Specifications
USER’S MANUAL 6. TECHNICAL SPECIFICATIONS 6.1 OPERATION, STORAGE AND TRANSPORT Conditions during operation, storage and transport Range of ambient air temperature -10°C to +40°C during operation Relative humidity of the air up to 50% at +40°C up to 90% at +20°C Ambient air free from abnormal amounts of dust, acids, corrosive substances etc. -
Page 13: Installation And Use
* LIFT – the arc ignition by rubbing the electrode on the workpiece. HF – contactless arc ignition. 7. INSTALLATION AND USE WARNING! SPARTUS® EasyTIG machines are intended for professional and industrial applications. Installation and use of the device may only be carried out appropriately trained professionals. It is forbidden to grinding and/or carrying out other locksmith works or mechanical working of metal in the vicinity of the ventilation opening of unit. -
Page 14: Proper Cooling
USER’S MANUAL 7.1 PROPER COOLING The unit should be placed stable on a dry and flat surface. Avoid too much slope and slippery surfaces. Check regularly that the vents (inlet, outlet) are not covered. The minimum distance between the welder vents and walls should be 50cm. 7.2 MOVEMENT AND HANDLING When moving the welding machine please take extra care. -
Page 15: Connecting To Power Supply
USER’S MANUAL 7.4 CONNECTING TO POWER SUPPLY Requirements for power network parameters (voltage, permissible range of mains voltage fluctuations etc.) are given in the table with technical parameters of device and on the rating plate of welding machine. Before connecting the unit to the power source: •... -
Page 16: Installation - Mma Welding
USER’S MANUAL Pressure regulator Gas cylinder Gas line Power AC 1~230V TIG torch Gas connector Work cable Control cable Control cable INSTALLATION – MMA WELDING Before connecting hardware and shielding gas to the device, make sure that the device is discon- nected from power source and switch is in the OFF position. -
Page 17: Device Control Panel - Using
USER’S MANUAL 7.7 DEVICE CONTROL PANEL – USING 7.7.1 Function panel description BLUE KNOB BLACK BLUE KNOB BLACK Dual-function adjustment knob: selection Welding method: MMA – manual metal arc welding and adjustment of parameter LIFT – TIG welding with arc ignition Digital meter by friction HF –... - Page 18 USER’S MANUAL BLUE KNOB BLACK BLUE KNOB BLACK Indicators inform the units that are shown Abnormal indicator on the display: AC balance (208 and 210) A – welding current amps V – voltage Volt Selection of welding (208 and 210): S –...
- Page 19 ADJUSTABLE PARAMETER: EN When TIG AC welding comes to the cyclic change of welding polarization. SPARTUS® EasyTIG 203P DC, 205P DC, 208P AC/DC and EasyTIG 210P AC/DC allow to adjust the percentage of Electrode Negative (EN) used during the AC welding mode. Repre-...
- Page 20 USER’S MANUAL It controls the balance between cleaning and penetration to achieve the best balance or desi- red effect while welding in the AC mode. More EN means better penetration, more EP means better cleaning. Too much of EN may result not enough cleaning action, too much of EP may result increased electrode consumption.
- Page 21 USER’S MANUAL 7.7.6 Course of TIG welding process (4T) During TIG 4T, it is possible to preset the current value of the initial and final current. With this feature, you can prevent flooding at the beginning of the weld and fill the crater formed at the end of the weld.
-
Page 22: Maintenance
USER’S MANUAL 7.7.7 MMA welding – adjustment Hot Start Welding current [A] Arc Force 7.7.8 Remote control 208P 210P Control 203P DC 205P AC/DC AC/DC AC/DC UP&DOWN in torch potentiometer in torch wire foot pedal ... -
Page 23: Environmental Protection
10. TROUBLESHOOTING Not all problems with functioning of the device, are the evidence of failure. You can independently carry out an analysis in search of probable failure. In case of doubt, please contact to SPARTUS® dealer or authorized service center. - Page 24 Damaged microswitch. The problem with TIG arc ignition (HF and no Control plug is not connected. HF). There is no spark when HF works. Problems with control plug. Closed valve in the gas cylinder, a closed valve in the gas pressure regulator. Clogged gas hoses leading the No gas flow gas to the device.
- Page 25 Notes...
- Page 26 Notes...
