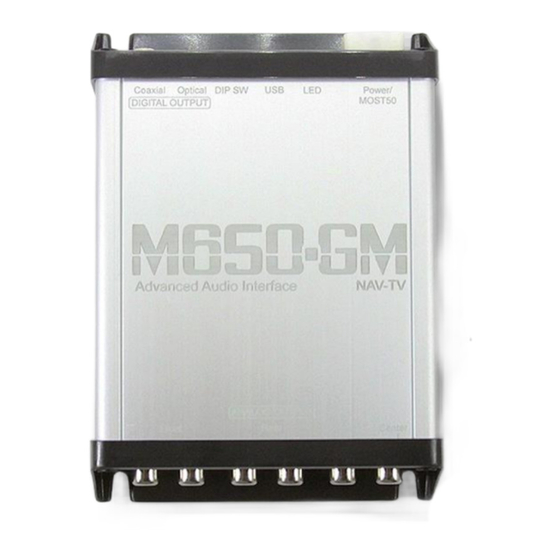

GM IO4/IO5/IO6 MOST50 to RCA, SPDIF & TosLink sound processor
NTV-KIT838

Advertisement

loading
Need help?

Need help?

Do you have a question about the NTV-KIT838 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nav TV NTV-KIT838

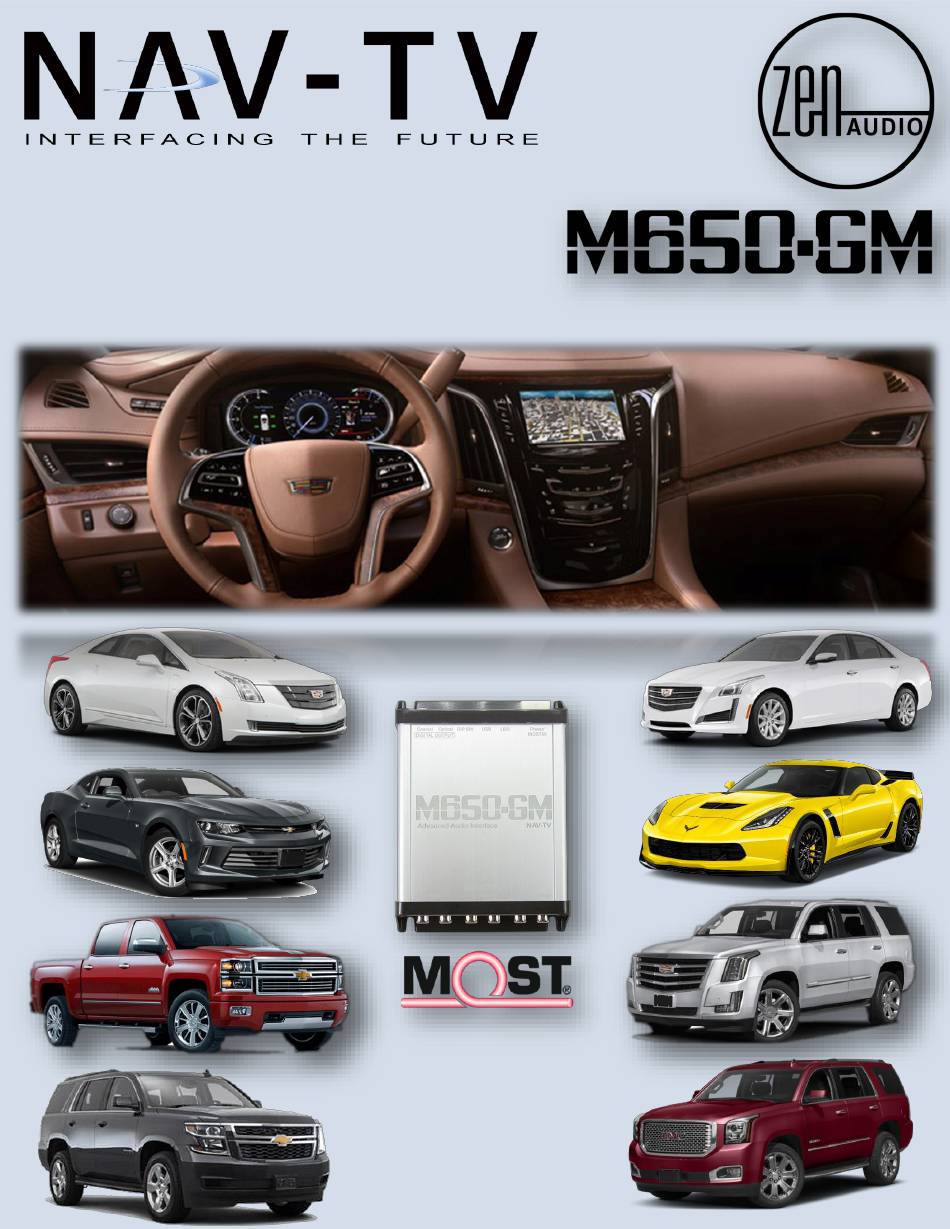

  • Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 GM IO4/IO5/IO6 MOST50 to RCA, SPDIF & TosLink sound processor NTV-KIT838...
  • Page 2 IMPORTANT NOTE: Many GM vehicles have poor chassis grounding. BEFORE connecting this 03/04/20 interface, check the GROUND to the amplifier using a digital multimeter. If resistance (compared to NTV-DOC303 vehicle battery negative) is greater than 1 OHM, run amp ground directly to battery or find a better ground source.
  • Page 3 IMPORTANT NOTE: Many GM vehicles have poor chassis grounding. BEFORE connecting this 03/04/20 interface, check the GROUND to the amplifier using a digital multimeter. If resistance (compared to NTV-DOC303 vehicle battery negative) is greater than 1 OHM, run amp ground directly to battery or find a better ground source.
  • Page 4 03/04/20 NTV-DOC303 M650-GM Installation 1. Use the chart on page 3 to locate the OEM radio tuner. Remove all panels/dash pieces to access the plugs on the OEM radio tuner. 2. Using the provided T-Harness, connect between the proper connectors (gray 20-pin & gray 8-pin) at the OEM radio tuner and OEM harness’...
  • Page 5 03/04/20 NTV-DOC303 M650-GM System Layout Options TYPE 1: Signal directly to amp, no additional external processor NOTE: the OEM amplifier must stay connected in the vehicle to retain complete OE functionality TYPE 2: Signal to additional external processor, then to amplifier NOTE: the OEM amplifier must stay connected in the...
  • Page 6: Tuning Tips

    03/04/20 NTV-DOC303 M650-GM Technical Specifications Hardware & Software Current HW version: Version 2.0 Current SW version: M650-1-2-32-6-20-18.enc Compatible SW (update) OS: Windows 7 (64 bit), 8, 10 INPUT Digital Input (MOST 50) MOST 50 Plug & Play OUTPUT Digital Outputs: TOS link (1) and S/PDIF Coaxial (1) Digital Outputs supported: 24bit/48kHz...
  • Page 7 03/04/20 NTV-DOC303 M650-GM Pin Out Pin # Description Color MOST RX (-) White/Purple MOST RX (+) Purple --Empty-- GM-LAN Green MOST Wake Up Pink Ground (-) Black MOST TX (+) Orange MOST TX (-) White/Orange --Empty-- --Not Used-- White/Blue Remote OUT Blue 12v Batt (+) Yellow...
