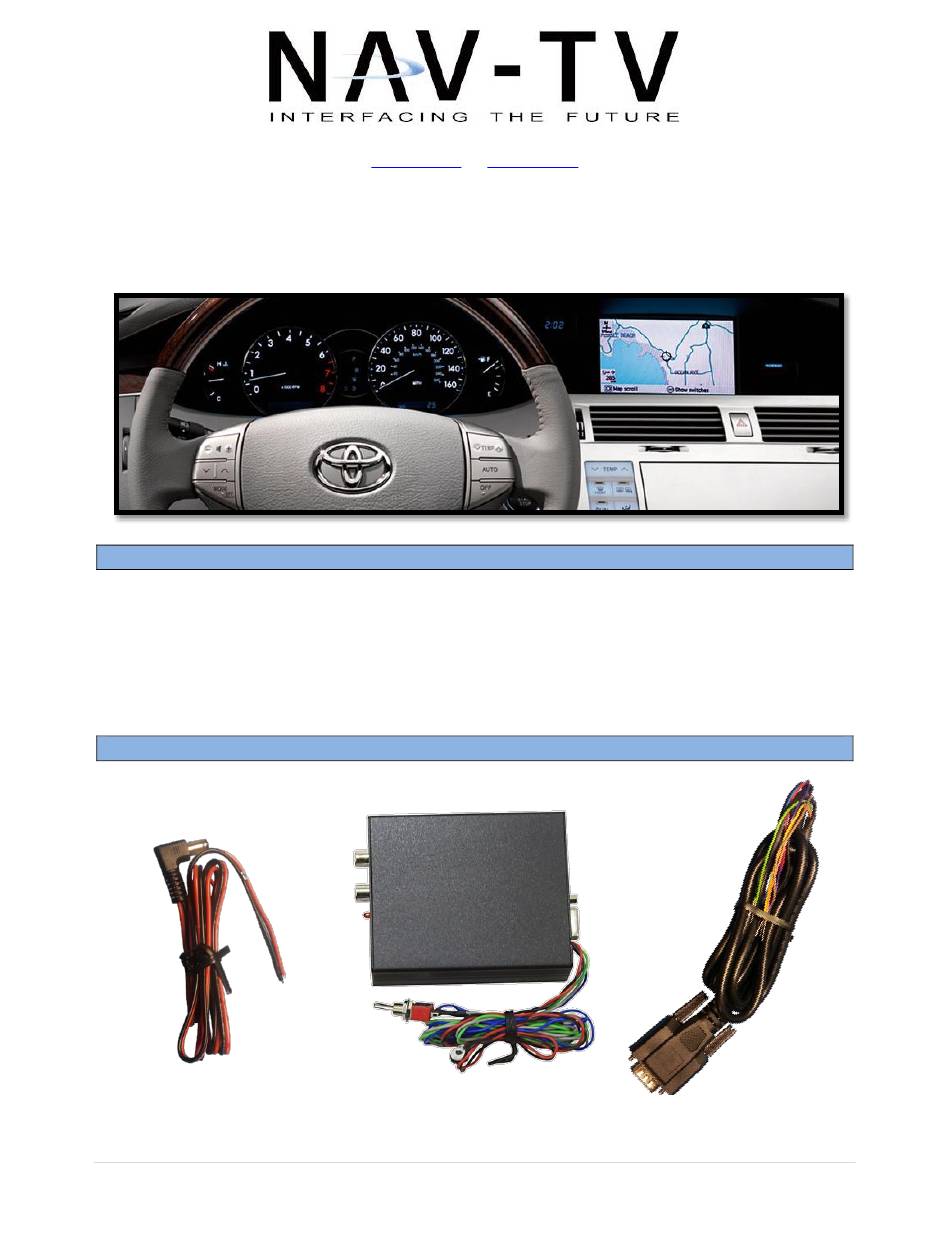

RGB-LEX+
NTV-KIT062
Overview
The RGB-LEX+ allows the user to add an aftermarket backup camera to the factory navigation
screen in select Toyota/Lexus vehicles equipped with navigation only. A secondary video input
is included on the RGB module and can be viewed at any time via the provided toggle switch
(optional). NOTE: the factory media system must be in navigation mode for any camera
image/video to display.
Kit Contents

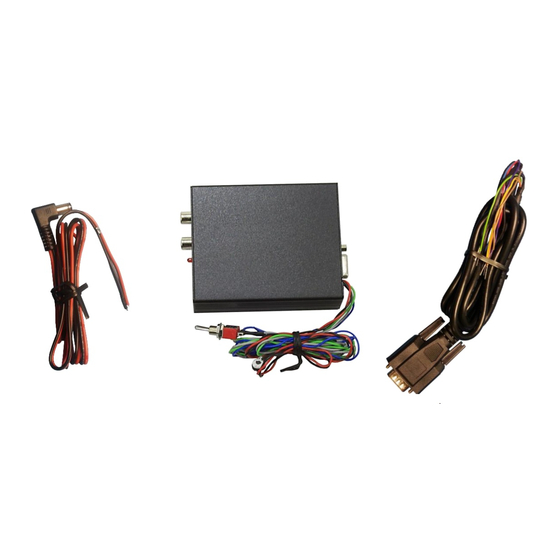

RGB Power Harness
RGB-LEX+ Converter
RGB Video Harness
NTV-CAB034
NTV-INT005
NTV-HAR209
1 |
P a g e
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nav TV RGB-LEX+ NTV-KIT062
Summary of Contents for Nav TV RGB-LEX+ NTV-KIT062
- Page 1 01/14/16 NTV-DOC034 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com RGB-LEX+ NTV-KIT062 Overview The RGB-LEX+ allows the user to add an aftermarket backup camera to the factory navigation screen in select Toyota/Lexus vehicles equipped with navigation only. A secondary video input is included on the RGB module and can be viewed at any time via the provided toggle switch (optional).
- Page 2 01/14/16 NTV-DOC034 Interface Connectors Power port AUX Video RGBS vs sync-over-green switch RGB connector (leave on RGBS) Camera IN Installation 1. Locate the factory navigation drive. These can usually be found in the trunk, glove compartment or under the passenger seat. Disconnect all connected harnesses before cutting any wires.
- Page 3 01/14/16 NTV-DOC034 4. From the provided RGB Power Harness, connect the following: a. the black wire to ground (-) b. the red wire to an 12v accessory (+) source (may be found on another plug on NAV unit) c. the blue wire to a Reverse lamp 12v (+) (from module, runs with the toggle switch) Basic connection diagram P a g e...
- Page 4 01/14/16 NTV-DOC034 RGB-LEX+ Operation When the Blue wire on the interface see’s 12v, the navigation screen will switch to Video 2 source. This wire should be connected to a reverse lamp 12v (+). Toggling the provided switch will switch the factory navigation screen to Video 1 source. Note: if not adding a second video source, leave the switch in whichever position where the factory NAV displays properly on the media screen.
