Nav TV BMW56 Manual

Video integration and Source switching for all iDrive equipped BMW 3, 5 and 6 series vehicles.

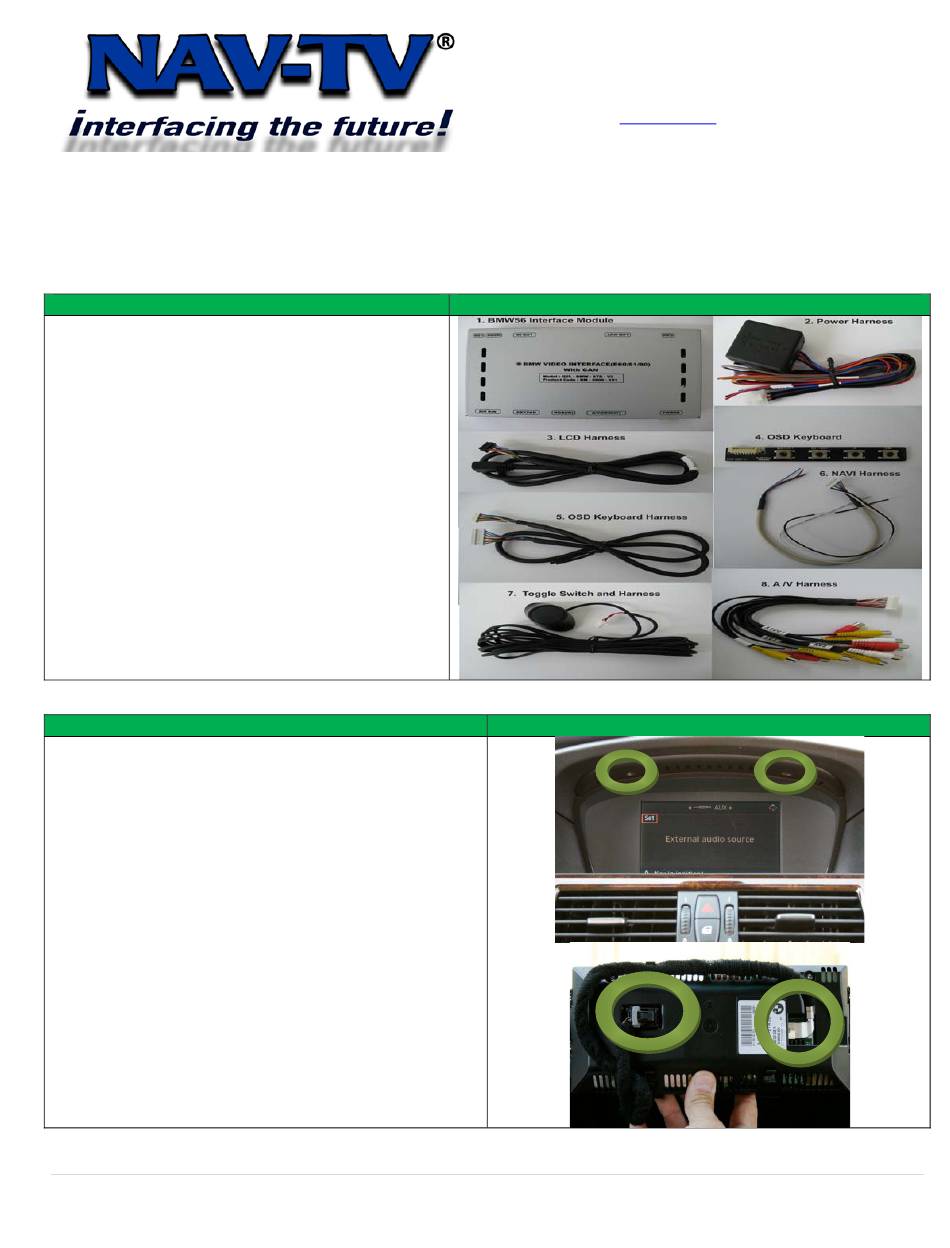

What's in the box
1. BMW56 Interface module
2. Power harness
3. LCD harness
4. OSD keyboard
5. OSD keyboard harness
6. NAVI harness
7. Toggle switch and harness (optional for
alternate Sour ce select).
8. A/V harness

Screen Removal

1. Remove 2 Torx T10 screw at the to
screen unit as shown circled in the
accompanying photo.
2. Once the screws are re
gap between the top of the screen unit and the
dashboard. Push a small screwdriver gently
into this gap and the screen should come out
its mounting with virtually no force.
3. Place a soft covering over the face of
and turn it over.
4. Remove the 2 har nesses from the back of the
screen as shown circled in the accompanying
photo. The harness with the plastic connector
is the Power and CAN harness and the one with
the metal connector is the LVDS (video) harness.
1 | P a g e
p of the
moved, there will be a
of
the screen
100 NW 11
Tel. 561-955-9770
www.nav-tv.com
BMW56
Package Contents
BMW56 9-25-2008
Rev 1.1 Mark Ryan
TH
Street, Boca Raton, FL 33432
Fax. 561-955-9760
info@nav-tv.com
Display Screen
