The GM-GVIF interfaces a backup camera input (and 1 additional video input) to the factory
media screen in select GM vehicles equipped with Intellilink (GVIF) media systems. With
additional parts, HDMI input is available with this unit. Audio integration uses the OEM AUX
input if adding an A/V source.
HD-LINK Optional KIT800
A/V Input Harness
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
GM-GVIF
NTV-KIT796

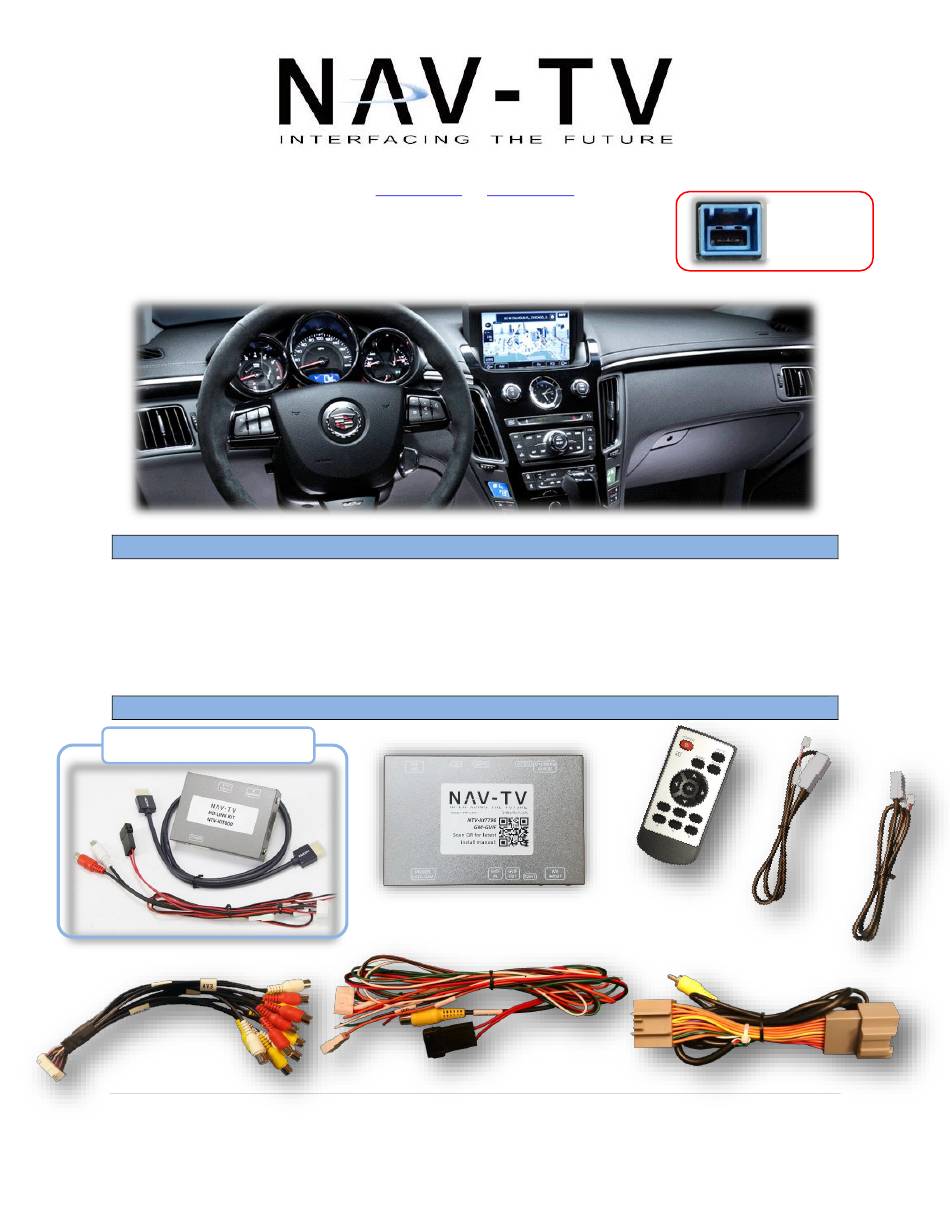

Overview
Kit Content

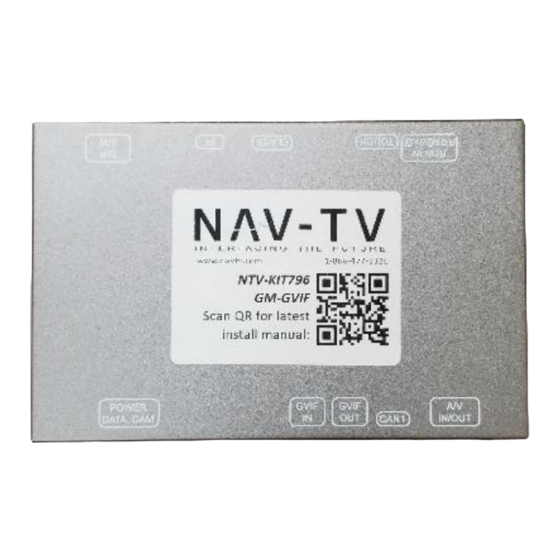

GM-GVIF Interface
Power/CAN Harness
BHM
11/19/19
NTV-DOC283
Screen
Connector
Remote
GVIF-IN Video cable
GVIF-OUT Video cable
CAN T-Harness
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Nav TV GM-GVIF
Summary of Contents for Nav TV GM-GVIF
- Page 1 NTV-KIT796 Overview The GM-GVIF interfaces a backup camera input (and 1 additional video input) to the factory media screen in select GM vehicles equipped with Intellilink (GVIF) media systems. With additional parts, HDMI input is available with this unit. Audio integration uses the OEM AUX input if adding an A/V source.
- Page 2 11/19/19 NTV-DOC283 Interface Connectors GVIF Video IN GVIF Video OUT Power/CAN AV IN/OUT OUOUT OUOUT CAN T-Harness connection Digital RGB (HDMI/NAV) Requires adapter RGB Input NOT USED IR Eye Dip Switches Dip Switch Settings* Configure prior to installation Dip SW: FC Timer NAV OFF FC Timer OFF...
- Page 3 6. Connect the other ends of the provided GVIF video cables back to the GM-GVIF interface a their appropriate connectors (these are labeled) 7. Connect the provided Power/CAN Harness to the main power plug on the GM-GVIF interface. 8. Optional: If adding a front camera or additional AUX video during this install, power it with an ACC source and connect the video signal to the RCA among the provided AV Input Harness labeled ‘AV2’...
- Page 4 11/19/19 NTV-DOC283 GM-GVIF Connection Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 5 11/19/19 NTV-DOC283 GM-GVIF Operation • After all connections are made and dip switches set properly, start the vehicle. Placing the vehicle in reverse will show the connected rear camera with dynamic guidelines displayed onto the media screen. • If adding an AUX video source (or front cam), this must be activated by setting DIP SWITCH #2 to ON.
- Page 6 11/19/19 NTV-DOC283 Adding HD-LINK Adapter (HDMI Input) Follow the instructions below when adding the HDMI adapter (HD-LINK) to enable HDMI input to the OEM screen: 1. Put dip switch #1 in the DOWN position. 2. Activate the ‘NAV INPUT’ by holding the ‘HOME’...
