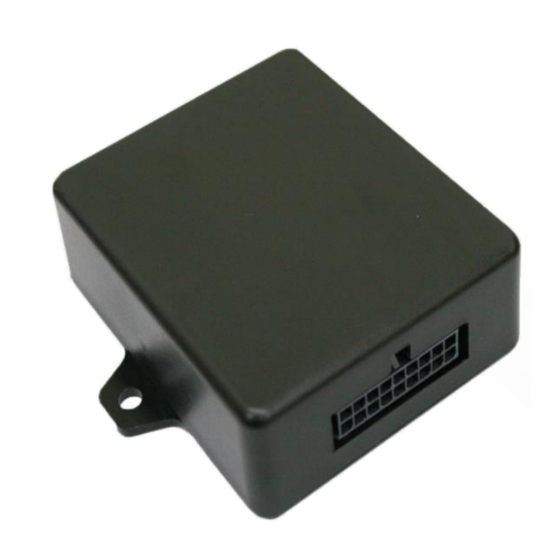

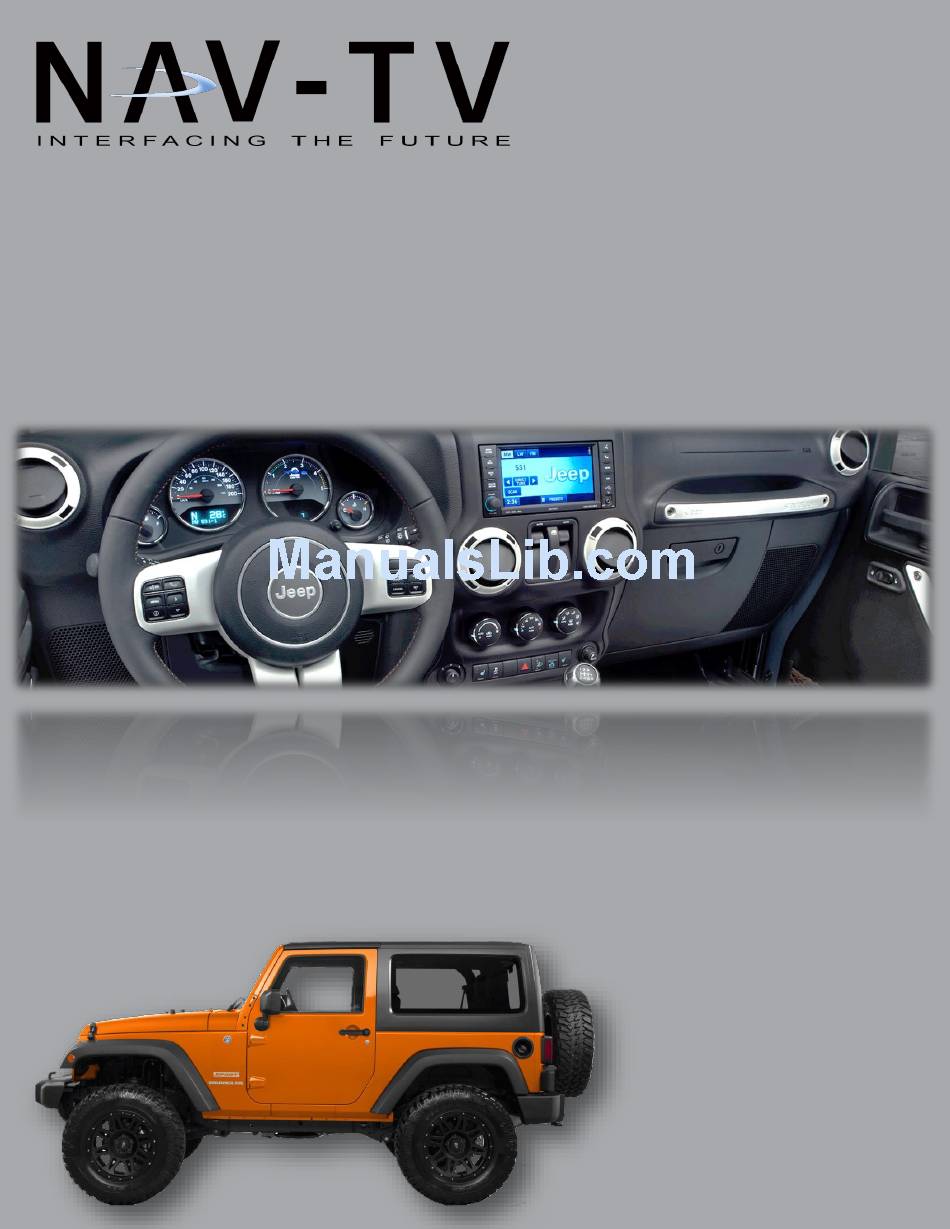

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 ALLGIG-XG Video in Motion, CIM, Rev-Cam, Front-Cam, AV input, DVD video output For: Chrysler, Dodge, and Jeep with MYGIG radio NTV-KIT260 ALLGIG-XG-HS NTV-KIT272 ALLGIG-XG-FT JR, BM, DS 01/22/16 NTV-DOC078...
- Page 2 JR, BM 01/22/16 NTV-DOC078 Overview Enables Video in Motion (VIM) for both internal DVD and VES Allows Navigation Entry in Motion Enables the “View Video” button on radios that have this button locked out With additional parts from NAV-TV, it will also: ...
- Page 3 JR, BM 01/22/16 NTV-DOC078 ALLGIG Operation Video in Motion/Navigation entry in motion: Video from internal DVD or any external video source, including factory VES, can be viewed while vehicle is in drive and moving. All functions of the navigation will be unlocked while in motion as well.
- Page 4 JR, BM 01/22/16 NTV-DOC078 To view the video from this source, press the “VIEW VIDEO” button. Multiple AV sources: If more than 1 AV source is installed, only “VES AUX 1” and “VES AUX 2” should be programmed; turn off “VES DVD”. To properly select the AUX inputs, the AVSW will be required.
- Page 5 JR, BM 01/22/16 NTV-DOC078 12v output when camera is forced: (Default ON) Will supply +12v on “OUTPUT 2” whenever camera is forced; this is used to power the front camera. Front view camera: (Default OFF) This feature will allow the unit to switch between a front view camera and rear view camera when forced camera is requested.
- Page 6 JR, BM 01/22/16 NTV-DOC078 Camera input (requires optional AV harness) IF INSTALLING ONLY A SINGLE REAR CAMERA, PLUG THE CAMERA DIRECTLY INTO THE AV HARNESS. DO NOT PLUG INTO THE ALLGIG MODULE! The vehicle may already have a harness plugged into the AV plug. Connect the AV harness between the radio and factory harness.
- Page 7 JR, BM 01/22/16 NTV-DOC078 Multiple AV Sources: (Only supported on High Speed radios) When installing multiple AV sources the optional AVSW is required to switch between the sources. For the radio to properly switch between sources, the XG module needs to be programmed with VES emulation, AUX 1 &...
- Page 8 JR, BM 01/22/16 NTV-DOC078 ALLGIG XG Pinout Pin # Description Color 12v (+) Constant Power Yellow Input 1 (Disables VIM on RHB when 12v applied)* Relay 1 (common) Video OUT to Radio Yellow RCA Common Shield -Shield- CAN HI (Radio side) Pink/Black CAN HI (Car side) Blue/Black...
