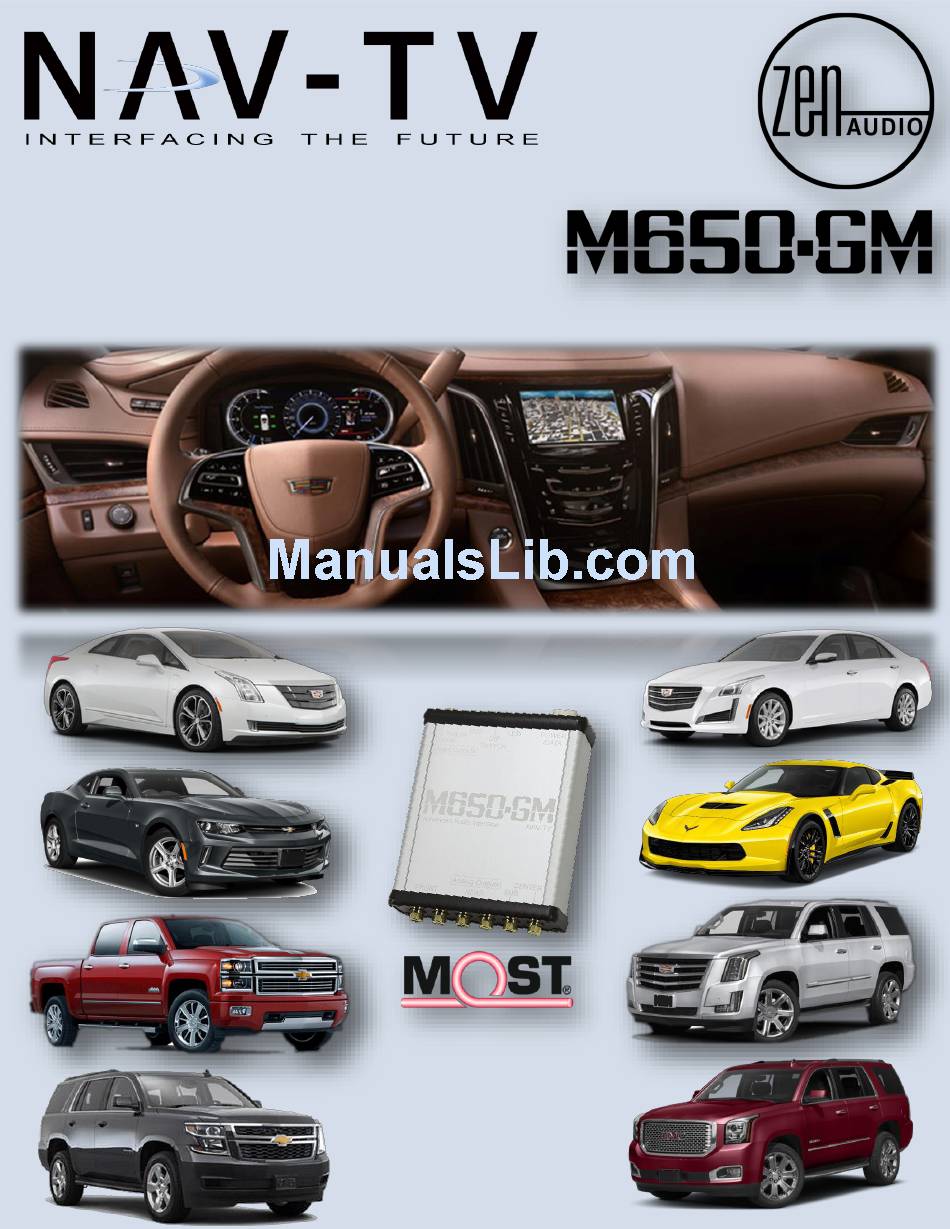

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 GM IO4/IO5/IO6 MOST50 to RCA, SPDIF & TosLink sound processor NTV-KIT838...

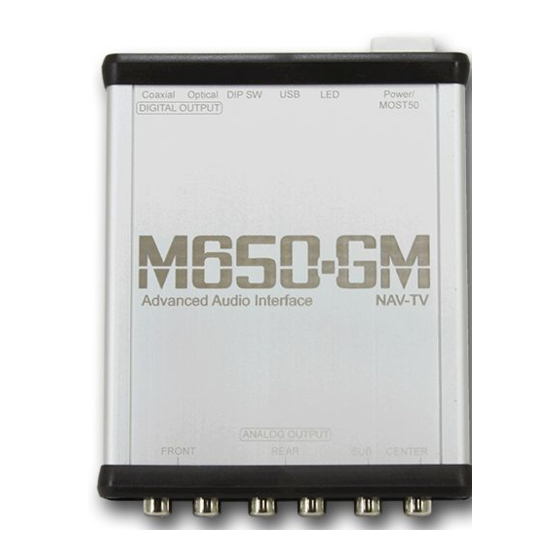

- Page 2 Warranty will be VOID for the M650 if damage is caused due to faulty ground(s). Overview NAV-TV’s M650-GM processor seamlessly converts GM’s MOST-50 audio bus to low level (6 channel) RCA, S/PDIF or TosLink outputs. Adding an aftermarket amplifier to the OE IO5/IO6 system has never been so easy or seamless.
- Page 3 Warranty will be VOID for the M650 if damage is caused due to faulty ground(s). M650-GM Installation Proper connection for the M650-GM requires gaining access to the OEM radio tuner module. Known locations are listed on the chart below:...
- Page 4 2. Using the provided T-Harness, connect between the proper connectors (gray 20-pin & gray 8-pin) at the OEM radio tuner and OEM harness’ from the vehicle. 3. Before connecting power to the M650-GM, adjust dip-switch settings for the desired options: Position DIP 1...
- Page 5 06/12/18 NTV-DOC303 M650-GM System Layout Options TYPE 1: Signal directly to amp, no additional external processor NOTE: the OEM amplifier must stay connected in the vehicle to retain complete OE functionality TYPE 2: Signal to additional external processor, then to amplifier...
- Page 6 06/12/18 NTV-DOC303 M650-GM Technical Specifications Hardware & Software Current HW version: Version 2.0 Current SW version: M650-1-2-32-6-20-18.enc Compatible SW (update) OS: Windows 7 (64 bit), 8, 10 INPUT Digital Input (MOST 50) MOST 50 Plug & Play OUTPUT Digital Outputs:...
- Page 7 06/12/18 NTV-DOC303 M650-GM Pin Out Pin # Description Color MOST RX (-) White/Purple MOST RX (+) Purple --Empty-- GM-LAN Green MOST Wake Up Pink Ground (-) Black MOST TX (+) Orange MOST TX (-) White/Orange --Empty-- --Not Used-- White/Blue Remote OUT...
