3950 NW 120
The MB Sprinter-CAM allows the user to add an aftermarket rear camera to the factory screen
on the Mercedes Sprinter. If desired, forced camera is an option through a mounted toggle
switch (not included).
ATTENTION: This module locks to the VIN and can only be used on ONE vehicle
at a time.
Plug & Play T Harness
NTV-HAR081
USB Cable (updates)
NTV-CAB009
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com

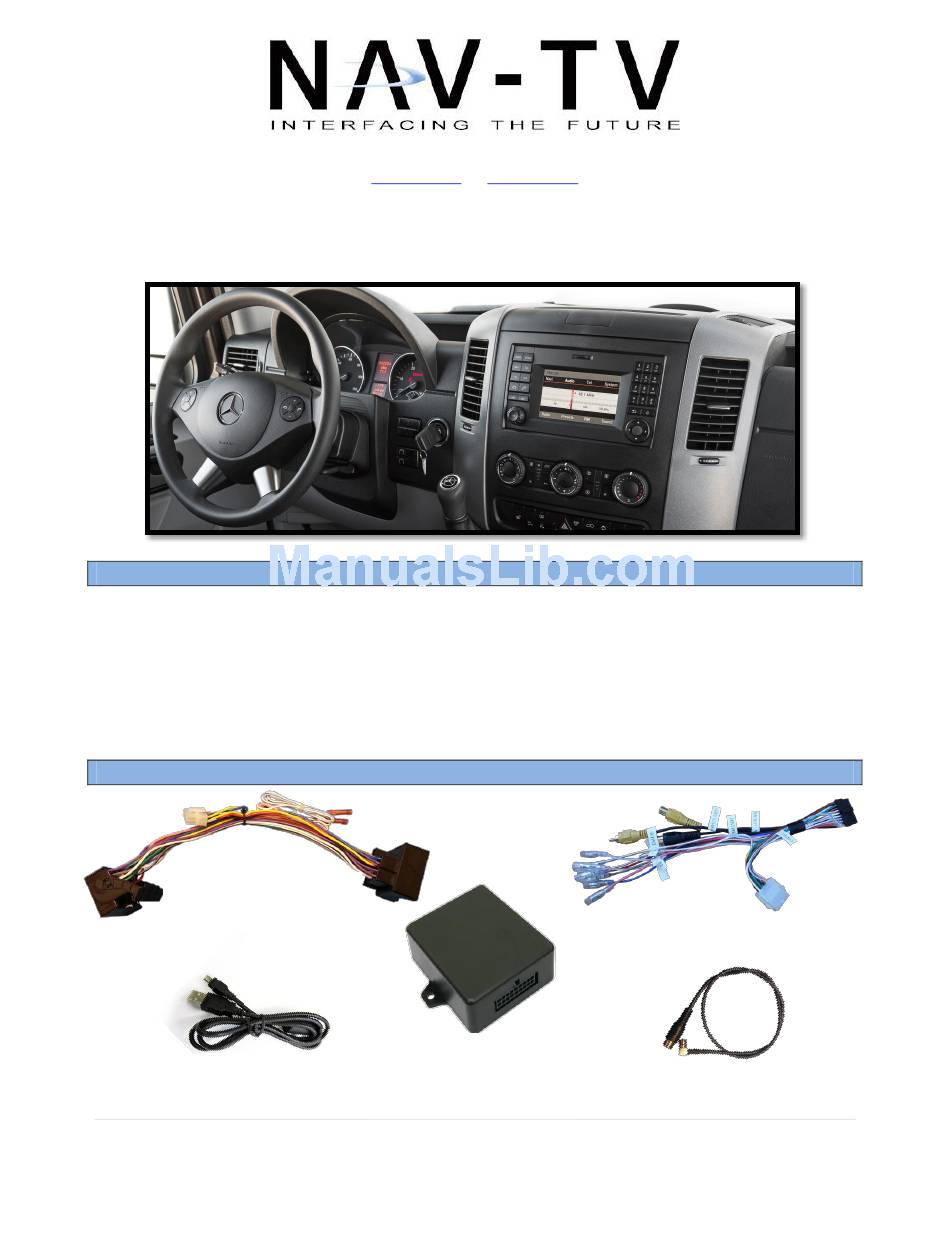

MB Sprinter-CAM
NTV-KIT477
Overview
Kit Contents

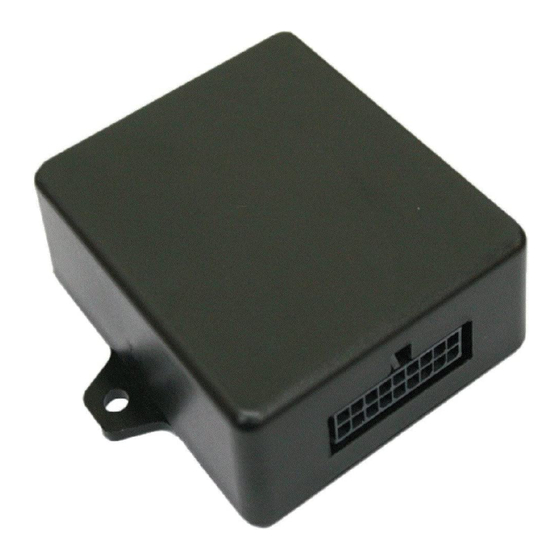

MB Sprinter-CAM
Module
NTV-ASY171
BHM
01/14/14
NTV-DOC154
CAN-XG Adapter
NTV-HAR058
SMB to RCA Adapter
NTV-CAB007
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Nav TV MB Sprinter-CAM NTV-KIT477
Summary of Contents for Nav TV MB Sprinter-CAM NTV-KIT477
- Page 1 01/14/14 NTV-DOC154 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com MB Sprinter-CAM NTV-KIT477 Overview The MB Sprinter-CAM allows the user to add an aftermarket rear camera to the factory screen on the Mercedes Sprinter. If desired, forced camera is an option through a mounted toggle switch (not included).
- Page 2 01/14/14 NTV-DOC154 Module Pin Outs PIN # Description Color 12v Constant (+) Yellow Input 1 (de-program wire) Input 2 (program wire) Blue Input 3 (Force CAM) Pink CAN HI (Radio Side) White/Green CAN HI (Car Side) Brown/Black Ground (-) Black CAN LO (Radio Side) Green CAN LO (Car Side)
- Page 3 01/14/14 NTV-DOC154 6. Connect the provided SMB to RCA Adapter to the green port on the back of the Sprinter’s factory radio (if there is already a plug at the green port, disconnect it and use the provided SMB cable instead). 7.
- Page 4 01/14/14 NTV-DOC154 LED Response Description NO LED Programming… 1 flash NO VIN (VIN isn’t identified OR the module has a VIN stored already) 2 flashes Vehicle is already provisioned (Programming has been completed already) 3 flashes Programming rejected (CAN needs to go down for 2 mins) 4 flashes Programming complete (The radio has accepted the program) IMPORTANT NOTES:...
