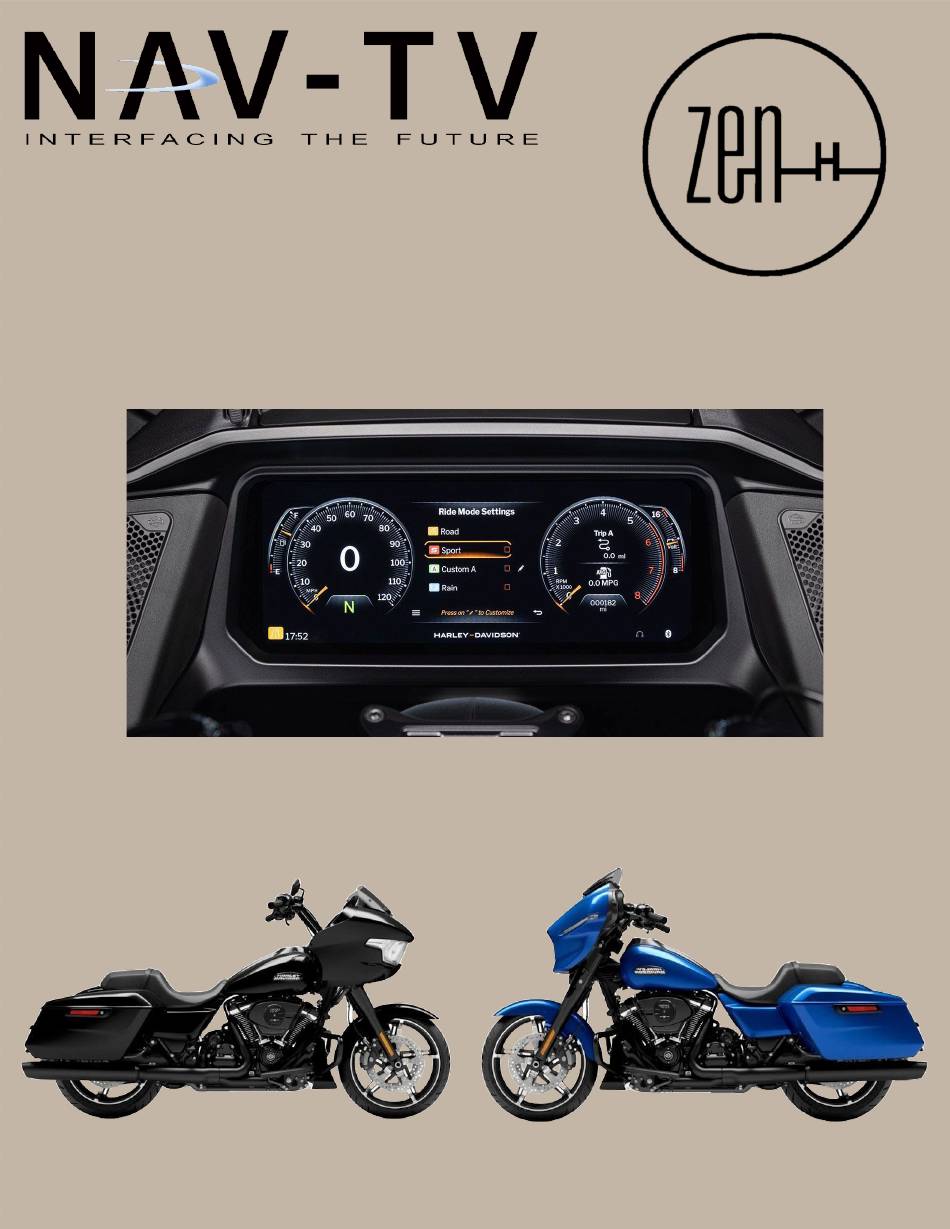

- Page 1 Harley Davidson A2B to 8-channel Analog pre-amp & Digital sound processor NTV-KIT1021...
- Page 2 rB3 22/04/25 WARNING: Do not connect any RCA cables to the ZEN-H interface or additional processors prior to properly grounding aftermarket amplifier(s)! Overview The NAV-TV ZEN-H processor seamlessly converts late model Harley-Davidson Road Glide and Street Glide, factory A2B systems to 8-channel analog RCA outputs. Adding aftermarket amplifiers to the Skyline Headunit has never been so simple.
- Page 3 rB3 22/04/25 ZEN-H Installation 1. Remove fairing and remove factory amplifier. 2. Connect the plug-N-play harness to the factory loom and then connect it to the ZEN-H. 3. Connect the RCAs from the ZEN to the external amplifier. 4. Connect the remote turn on wire from the ZEN to the external amplifier. 5.
- Page 4 rB3 22/04/25 ZEN-H System Layout P a g e...
- Page 5 rB3 22/04/25 After installing the ZEN-H you will gain extra audio controls not available previously. See below for what gets added. Added controls & options • Fader and the 7 band EQ are available but need to be enabled. They must be enabled by mapping rear speakers first.
- Page 6 rB3 22/04/25 ZEN-H Technical Specifications Hardware & Software Current HW version: --1r1-- Current SW version: ZEN-H-1.2.8.ntv Compatible SW (update) OS: Windows, macOS INPUT Digital Input OUTPUT Digital Outputs: None Digital Outputs supported: 24bit/48kHz Frequency Response (digital): 18Hz – 24kHz Analog Outputs: 8 channels (RCA) Output Voltage Peak: 13.8v...
- Page 7 rB3 22/04/25 • For installations with this ZEN processor, make certain that any added amplifier’s ground resistance (reference vehicle battery ground) does not exceed 1 ohm. • If you’ve installed a third-party DSP (receiving signal from the ZEN, before the amplifier) and you’re having issues with audio bleeding from one channel to another, echoing Bluetooth phone calls or any other signal processing issues, rule out the ZEN first by temporarily bypassing the third-party DSP and running signal directly from the ZEN to the amplifier(s) and verify the problem still exists before calling technical support.
