Summary of Contents for Nav TV ZEN-V

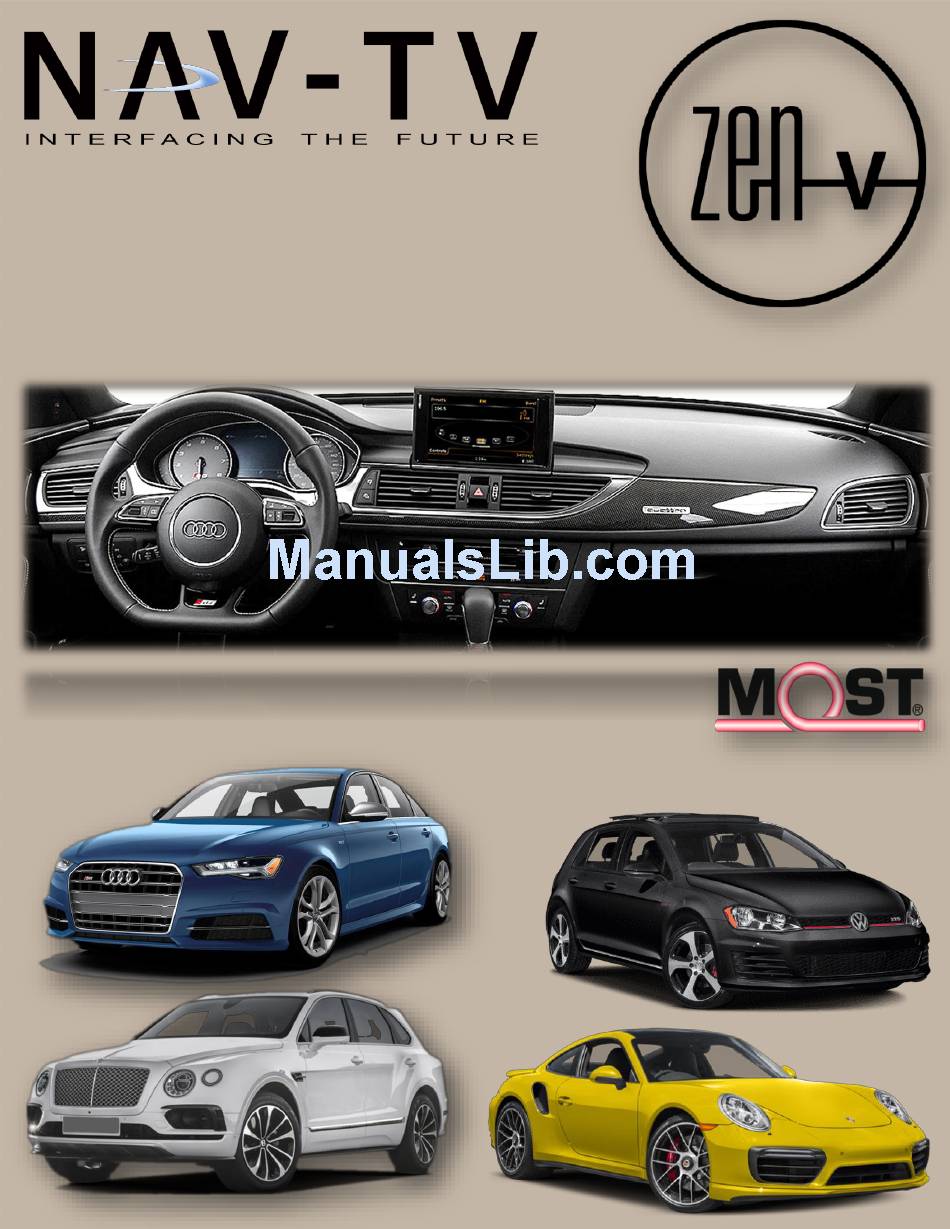

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 AUDI / VW / Porsche / Bentley M.O.S.T. 150 to 12-channel Analog & Digital sound processor NTV-KIT860...
- Page 2 Overview The NAV-TV ZEN-V processor seamlessly converts late model AUDI, VW, Porsche & Bentley factory MOST-150 audio bus to 12-channel analog RCA and TOSLink output. Adding aftermarket amplifiers to the OE MIB, MIB2 or PCM4 / 4.1 system has never been so simple and seamless.
- Page 3 NTV-DOC314 ZEN-V Installation 1. If this vehicle has a factory amplifier, it must be removed and the ZEN-V can be installed into its place. If this vehicle is not amplified from factory, install the ZEN-V behind the radio. 2. Connect the following wires from the...
- Page 4 • From the factory, some vehicles’ audio will attenuate when in reverse. Simply set the ‘reverse volume’ to desired level while in reverse to adjust this. The ZEN-V will retain this method. The same is true for NAV guidance audio and BT voice calls.
- Page 5 Solid Red MOST Active Violet MOST traffic commands Blinking Red Peaking (maximum digital signal level achieved) Blinking Blue PC Link with app (future use) ZEN-V System Layout (analog) For ZEN-V installations, the factory amplifier MUST be removed. P a g e...
- Page 6 04/23/18 NTV-DOC314 ZEN-V System Layout (digital TOSLink) For ZEN-V installations, the factory amplifier MUST be removed. P a g e...
- Page 7 04/23/18 NTV-DOC314 ZEN DownMix Scenario Examples Source Signal DownMix TOSLink Analog Analog Analog REAR Center Output FRONT OUT SIDE OUT (7,8) OUT (9,10) Channel OUT 2 Channel (Music) Stereo Stereo Front Stereo Rear Stereo Rear Muted Mono (L+R) 2 Channel (Music) Stereo Stereo Front Stereo Rear...
- Page 8 See below for each vehicle radio type for what gets added. Added controls & options (AUDI A3: MIB) • For AUDI A3, Surround is added, and is used for direct Subwoofer control from the ZEN-V (RCA #12) Added controls & options (AUDI: MIB-HS) •...
- Page 9 04/23/18 NTV-DOC314 ZEN-V Technical Specifications Hardware & Software Current HW version: --1r0-- Current SW version: ZEN-V-1.6.1-5-2-18 Compatible SW (update) OS: Windows 7 (64 bit), 8, 10 INPUT Digital Input MOST 150 Fiber Optic OUTPUT Digital Outputs: TOSLink Digital Outputs supported:...
- Page 10 04/23/18 NTV-DOC314 10 | P a g e...
