AUDI DYNAMIC-A3
NTV-KIT702

Overview

The AUDI DYNAMIC-A3 Kit interfaces a backup camera input (with active parking lines) and 1
additional video input (front cam, etc) to the factory media screen in the 2014+ Audi A3 or VW
Golf 7. Installation is performed behind the MMI (inside glove box).

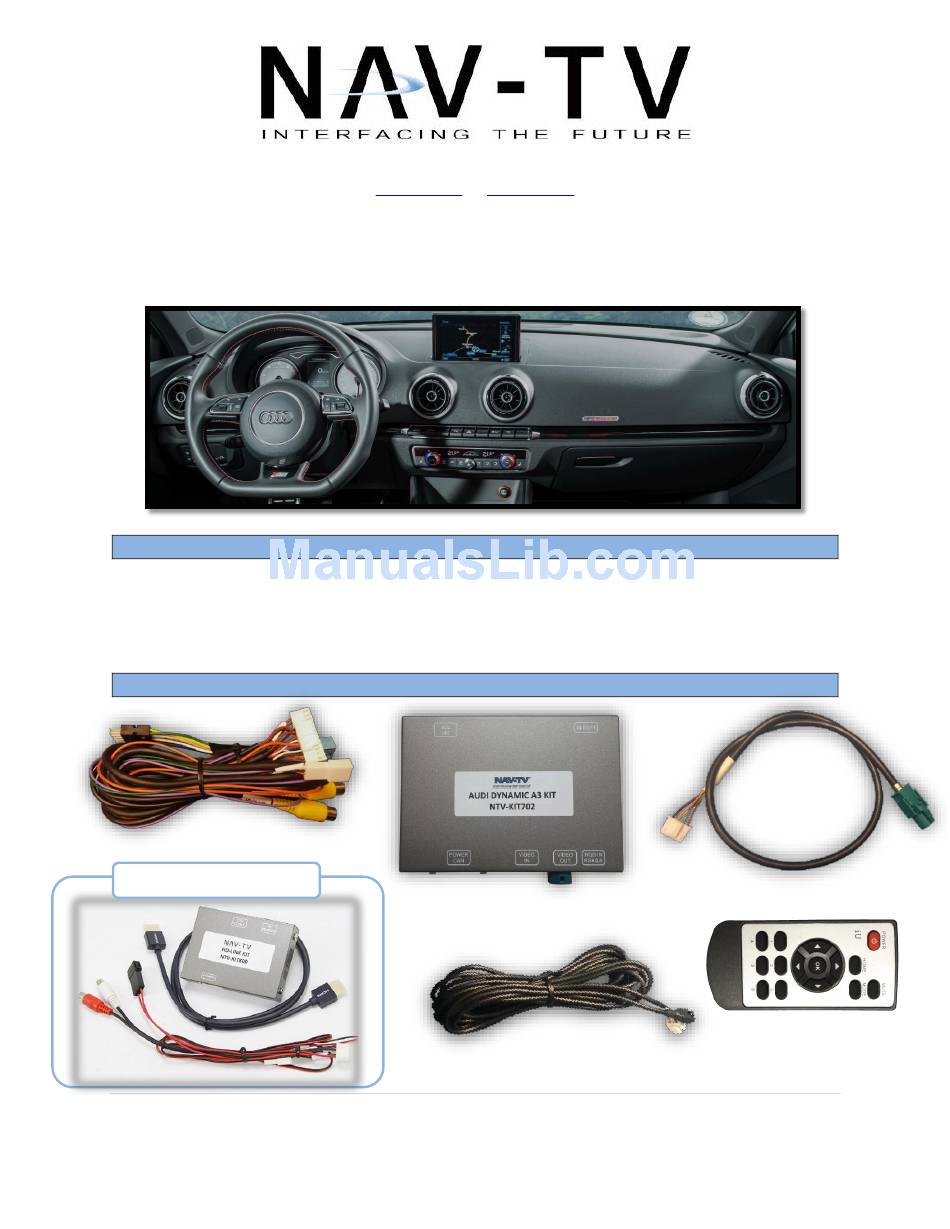

Kit Contents

A-Type
LVDS
Video
Cable
Power/CAN Harness
HD-LINK Optional KIT800
DYNAMIC-A3 Interface
OSD Menu Remote
Infrared Receiver
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
1 |
P a g e
