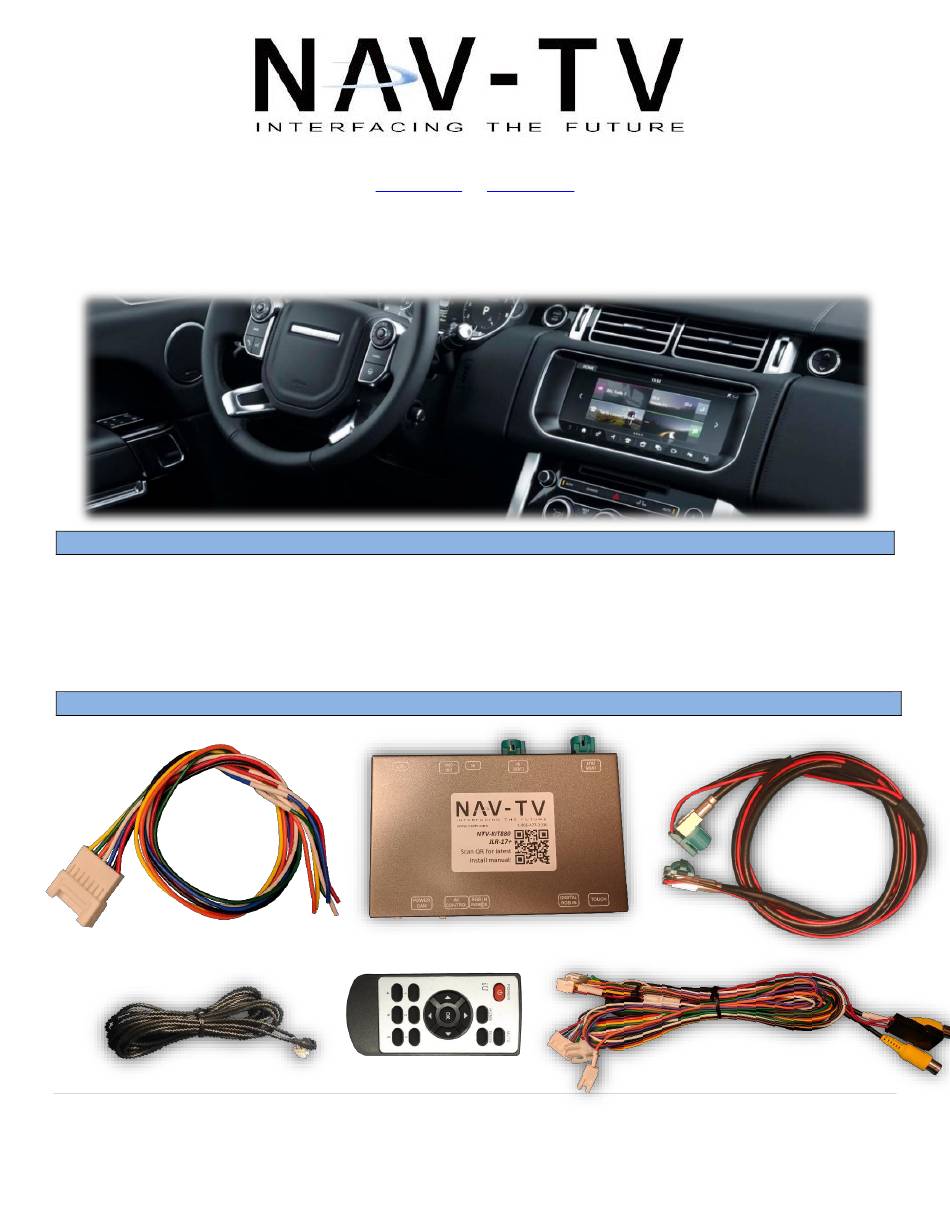

Overview
The JLR-17+ Kit interfaces a backup camera input (with active parking lines) and 1 additional video input (front
cam, etc) to the factory media screen in 2017+ Range Rover and Jaguar vehicles equipped with InControl 8" or
10" media screens. Installation for Range Rover is performed under the passenger seat, Jaguar vehicles; in the
driver's side trunk.
Kit Content
Vehicle
LVDS
Connection
Video
Harness
Cable
JLR-17+ Interface
Power/CAN Harness
Infrared Receiver
OSD Menu Remote
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product.
If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger
entertainment only.
