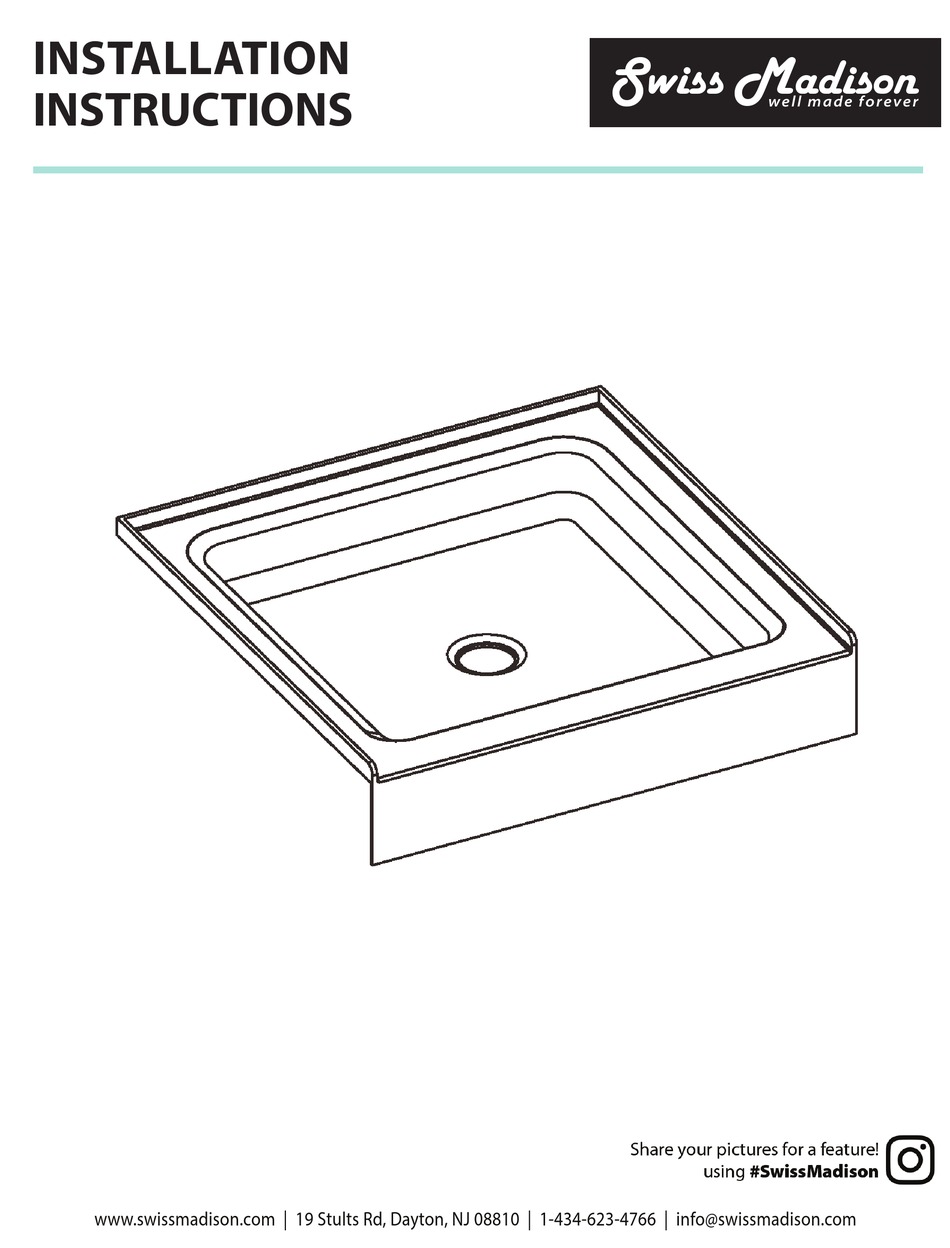

- Page 1 INSTALLATION wiss adison INSTRUCTIONS www.swissmadison.com | 19 Stults Rd, Dayton, NJ 08810 | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase Thank you for purchasing a Swiss Madison Shower Base. We appreciate your business and know you will enjoy your shower base for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.

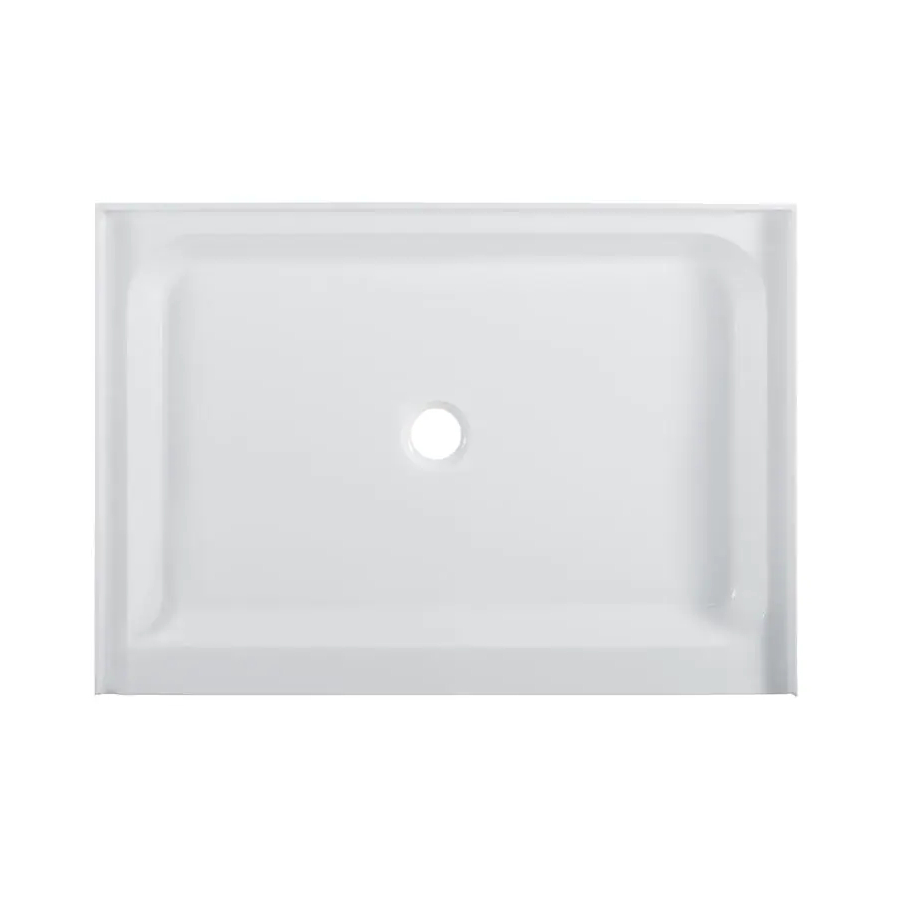

- Page 3 SHOWER BASE MODELS NAME SM SB510 Concorde® 48” 36” White Center Drain Shower Base SM SB511 St. Tropez® 36” 36” White Center Drain Shower Base SM-SB512 Voltaire® 60” 36” White Right-Hand Drain Shower Base SM-SB513 Voltaire® 60” 36” White Left-Hand Drain Shower Base SM-SB514 Voltaire®...
-
Page 4: Installation Instructions
SHOWER BASE INSTALLATION INSTRUCTIONS NAME L x W x H DRAIN SM SB510 Concorde® 48” 36” 5.5” Center SM SB511 St. Tropez® 36” 36” 5.5” Center SM-SB512 Voltaire® 60” 36” 5.5” Right-Hand SM-SB513 Voltaire® 60” 36” 5.5” Left-Hand SM-SB514 Voltaire® 60”... - Page 5 SHOWER BASE INSTALLATION INSTRUCTIONS CAUTION: DO NOT use drywall screws to secure anges to wall studs. Product damage will occur and will void the warranty. Entire bottom support must be in contact with a at level surface. Read the complete instruction manual before beginning installation. Con rm that your model will t in intended location and plumbing xtures are located where legally required before beginning installation.
- Page 6 SHOWER BASE INSTALLATION INSTRUCTIONS Leveling the oor Verify that the shower base is level using the “level” tool on all four sides. • If the shower base is level proceed to step 2. • If shower base level use shims or mortar compound to adjust accordingly. Verify with “level tool.
- Page 7 SHOWER BASE INSTALLATION INSTRUCTIONS Installing Shower Base Re-insert shower base into shower cavity making sure that shower base drain and oor rough-in are aligned. Before laying down shower base, ll shower cavity with expanding foam in snake formation. Leave 6-8 inches from end of shower area empty of expanding foam. Re-insert shower pan into shower cavity leaving 1/8”...
- Page 8 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
-
Page 9: Prior To Installation
Prior to Installation: Inspect sink to ensure no damages have occurred while in shipping Observe all plumbing and building codes in accordance with your state and local requirements Additional oor and wall preparations may be necessary to avoid damage to the product General Recommendations: Read installation and maintenance instructions thoroughly before installing the sink.
