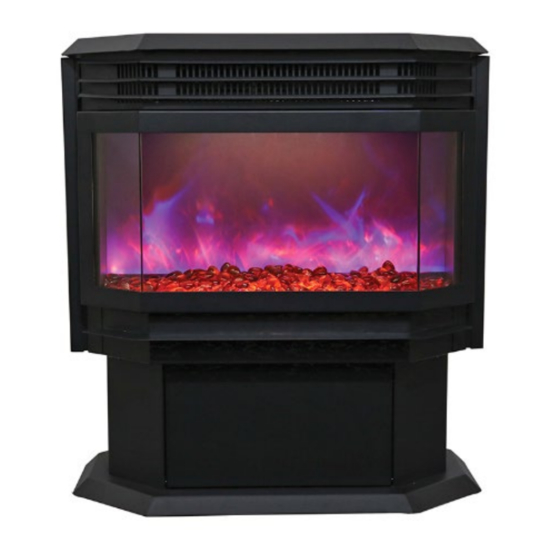

INSTALLATION AND OPERATION INSTRUCTIONS FOR ZERO CLEARANCE
AND FREE STANDING UNITS
FS-26-922
SAFETY INFORMATION
WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amantii FS-26-922
Summary of Contents for Amantii FS-26-922
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR ZERO CLEARANCE AND FREE STANDING UNITS FS-26-922 SAFETY INFORMATION WARNING If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS............................3 PLUG INSTALLATION INSTRUCTIONS......................... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS Please read the following instructions carefully before using the appliance. Caution - Fire, electric shock, physical injury and material damage hazards: To use the appliance, always follow the instructions for assembly, use and maintenance as well as usage cautions: 1. - Page 4 the room on their own, unless constant supervision is provided. 22. If the glass is damaged, do not use the heater in order to avoid a hazard. 23. Children of less than 3 years should be kept away from unless continuously supervised. 24.
- Page 5 Cautions ·Always install the heater in accordance with this guide. If in doubt obtain expert advice. ·Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. ·Always disconnect the heater from the electrical supply before Do’s moving it, or carrying out cleaning, maintenance.
-
Page 6: Plug Installation Instructions
PLUG INSTALLATION Your power cord will come separate from the unit, please locate it when unpacking your fireplace. The plug contained inside the box is predetermined at the factory and according to orders placed by authorized dealers. Available are UK, European & Swiss plugs. Should you require any of these options please contact your dealer for purchase. -
Page 7: Unpacking And Testing Appliance
UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 240 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components operate correctly. - Page 8 FS-26-922 Description Free Standing Appliance Voltage 240V AC 50-60Hz Watts 1900W Max NO HEATER 18.5W MOTOR HEATER Appliance Width 25 5/8" or 65.2 cm Appliance Height 28" or 71.2 cm Appliance Depth 17 1/2" or 44.5 cm Gross Weight 71.6 lbs or 32.5 kgs...
-
Page 9: Media Options
MEDIA OPTIONS Your fireplace shipped with the following media: 3 bags of sable glass and an 11 piece log set. Customers decorate their fireplace according to their wishes with supplied media. This fireplace includes the following decorative media: The glass panel is hooked by 2 hooks on each side. -
Page 10: Operation
OPERATION The fireplace can be operated either by the switches located on the left front of the fireplace unit or by supplied remote control. MANUAL OPERATION Push to reveal the manual control panel. (As shows in bellow picture) Push here to open the manual control panel 1、... -
Page 11: Remote Control Operation
REMOTE CONTROL OPERATION Press the remote control’s key“ ”, its screen turns on, the flame ignites and the flame icon appears on 、 the LCD screen of the remote control. Week, time (24h system), and temperature setting are displayed normally. Press it again, the screen of the remote control will turn off; Key“... - Page 12 7、 Press the heating key“ .” Press for the first time ,the heating elements work at 1900W, the LCD screen displays , the indicator on the machine lights red. Press a second time , the heating elements work at 950W, the LCD screen displays , the indicator on the machine lights blue.
- Page 13 for Tuesday. Press for the 7th time and it displays . Press for the 8th time and it exits and recovers to the current week day; 11、Press“ .” Press for the first time and the timing function turns on, the LCD screen displays the machine’s indicator lights green.
-
Page 14: Care And Maintenance
CARE AND MAINTENANCE 1. Switch off and unplug from the power supply before cleaning. 2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the products. CAUTION: Allow the product to completely cool before handling or cleaning it. 3. -
Page 15: Replacement Parts
REPLACEMENT PARTS This list contains replacement parts PART NUMBER DESCRIPTION QTY. 10701213 FRONT CLEAR GLASS (MIDDLE) 10701214 FRONT CLEAR GLASS (SIDES) 10702166 BOTTOM GLASS BACK BLACK PLASTIC GLASS 3126010 10104002 SWITCH 3126512 FLICKER ASSEMBLY 10101221C FLAME MOTOR 601137B LED STRIP FOR TRAY 601136B LED STRIP FOR FLAME 3001506B... -
Page 16: Exploded View
EXPLODED VIEW... -
Page 17: Wiring Diagram
Wiring Diagram... -
Page 18: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary. Back black cloth is falling off Change a flicker and back black cloth. and rolled up in the flicker Ember Ember LED’s are burnt out Inspect the ember bed LED’s and... -
Page 19: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:...
