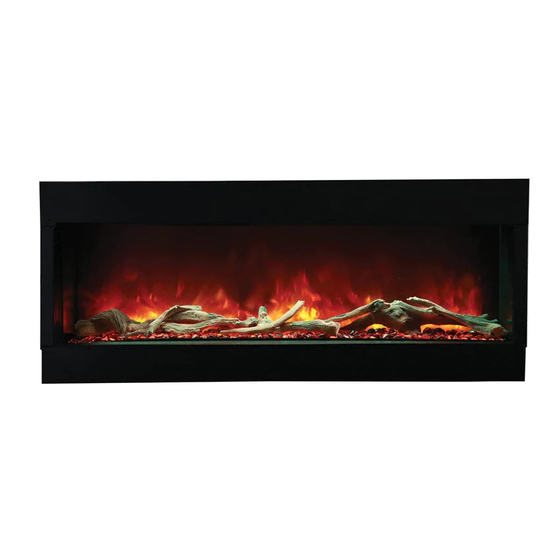

INSTALLATION AND OPERATION INSTRUCTIONS FOR
50-TRU-VIEW-XL
60-TRU-VIEW-XL
72-TRU-VIEW-XL
SAFETY INFORMATION
WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Related Manuals for Amantii 50-TRU-VIEW-XL
Summary of Contents for Amantii 50-TRU-VIEW-XL
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR 50-TRU-VIEW-XL 60-TRU-VIEW-XL 72-TRU-VIEW-XL SAFETY INFORMATION WARNING If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Table Of Contents
Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS............................3 UNPACKING AND TESTING APPLIANCE .......................3... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS 1. Read all instructions before installing or using this heater. 2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front of the heater; keep them away from sides and rear as well. 3. -
Page 4: Unpacking And Testing Appliance
UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120 Volt grounded outlet. GROUNDING APPLIANCE This appliance is for use on 120 Volts. -
Page 5: 50-Tru-View-Xl
50-TRU-VIEW-XL This appliance has been tested in accordance with the UL Standard 2021 Description Built-in Appliance for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need... -
Page 6: 60-Tru-View-Xl
60-TRU-VIEW-XL This appliance has been tested in accordance with the UL Standard 2021 Model Number Build-in Appliance for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need NO HEATER assistance during installation, please MOTOR HEATER... -
Page 7: 72 -Tru-View-Xl
72 –TRU-VIEW-XL This appliance has been tested in Description Built-in Appliance accordance with the UL Standard 2021 for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need NO HEATER assistance during installation, please MOTOR HEATER... -
Page 8: Installation
The rough wall opening size of the fireplace: W(＂) D(＂) H(＂) 2. Take off the fending bars and panels if you 50-TRU-VIEW-XL 53 3/4 14 3/4" 27 1/8 want to view the fire from three angles. 60-TRU-VIEW-XL 63 3/4 14 3/4"... - Page 9 framing plate framing plate 5. Make an opening for the fireplace according to requested measurement. 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install polywood. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
- Page 10 8. Decorate the polywood with glazed tile, fending bar and panel. wallpaper, etc. 3. After the fending panel is removed, screw back the bar. Installation for Front and Right Side Viewing 1. To install the fireplace where the left side is close to a wall, and you want to view the fire from front and right side, take off the fending panel on the right.
- Page 11 5. Make an opening for the fireplace according 7. After checking that the fireplace operates to requested measurement. properly, cover the glass panels with protective plastic bag and install polywood. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
- Page 12 Installation for Front and Left Side Viewing 1. Install the fireplace where the right side is close to a wall, and you want to view the fire from front and left side, take off the fending panel on the left. 4.
- Page 13 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install polywood. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs. To fix the bottom of the fireplace and the wall studs with the 8.
-
Page 14: Safety Drill Screw Area
SAFETY DRILL SCREW AREA There is a safety drill screw area as show below. Please make sure that the fix screws are in this area. T h e m a n u a l c o n tro l p a d p o s itio n Sa fe ty d rill s cre w a re a (Da rk a re a ) For Bathroom Use... -
Page 15: Hard- Wire Installation
HARD- WIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring. -
Page 16: Media Options
Media Options The 50-TRU-VIEW-XL and 60-TRU-VIEW-XL are shipped with 2 sets of FI-109-DIAMOND, 72-TRU-VIEW- -XL is shipped with 3 sets of FI-109-DIAMOND. FI-109-DIAMOND 3 glass nuggets, 1 bag of clear, 1 bag of small clear, 1 bag of clear diamond and 1 bag of blue diamond. -
Page 17: Media Operation
Media Operation 1. Unscrew 2 screws and take off two brackets which are fending the front glass panel. Screws and brackets 4. Installing the fire glass media. Pour the fire glass media into the tray as shown below. Feel free to use any combination of fire glass 2. -
Page 18: Operation
OPERATION The fireplace can be operated either by the switches located on the left bottom of the fireplace unit or by supplied remote control. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION 1. The main power ON/OFF switch in position O, the fireplace is OFF. 2. -
Page 19: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the heater is plugged in and main power switch located on the bottom left hand side is at position I. When operating the remote make sure you point the remote to the centre of the fireplace and make sure each time you press the button. -
Page 20: Installing Wall Thermostat
INSTALLING WALL THERMOSTAT WALL THERMOSTAT WIRING DIAGRAMS Wire the wall thermostat prior to installing the fireplace. WALL THERMOSTAT WIRING(24 VAC) Install Wall Thermostat per instructions provided with kit and per the following information: 1. Turn off circuit breaker. 2. Remove cover plate located on the left side of appliance. Pull the wire out and cut the inside thermostat. -
Page 21: Replacement Parts
REPLACEMENT PARTS This list contains replacement parts PART NUMBER DESCRIPTION 50-TRU-VIEW-XL 60-TRU-VIEW-XL 72-TRU-VIEW-XL 10701216 10701217 10701218 FRONT CLEAR GLASS 10201505 ADJUSTABLE SCREW 3123010 FRONT CLEAR GLASS BRACKET 10702168 10702169 10702170 BOTTOM TRAY GLASS 10701219 10701220 10701221 BACK GLASS WITH BLACK... -
Page 22: Exploded View
EXPLODED VIEW... -
Page 23: Wiring Diagram
Wiring Diagram... -
Page 24: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary. Ember Ember LED’s are burnt out Inspect the ember bed LED’s and glowing or dimming replace them if necessary. Appliance turns off and Appliance has overheated and Turn off the main switch, allow... -
Page 25: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:...
