INSTALLATION AND OPERATION INSTRUCTIONS FOR
TRV-45 BESPOKE
TRV-55 BESPOKE
TRV-65 BESPOKE
TRV-75 BESPOKE
TRV-85 BESPOKE
if the information in these instructions are not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss
of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING: This product can expose you to chemicals including
lead in the wiring, which is [are] known to the State of California
to cause birth defects of other reproductive harm. For more
information visit: www.p65warnings.ca.gov

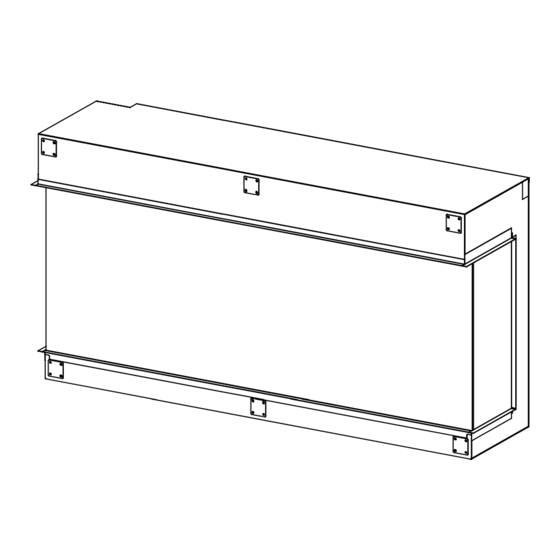

ELECTRIC FIREPLACE
www.amantii.com
BS2100045-1
BS2100055-1
BS2100065-1
BS2100075-1
BS2100085-1
SAFETY INFORMATION
WARNING
01
REVISED - 202309
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amantii BS2100045-1
Summary of Contents for Amantii BS2100045-1
- Page 1 ELECTRIC FIREPLACE www.amantii.com INSTALLATION AND OPERATION INSTRUCTIONS FOR TRV-45 BESPOKE BS2100045-1 TRV-55 BESPOKE BS2100055-1 TRV-65 BESPOKE BS2100065-1 TRV-75 BESPOKE BS2100075-1 TRV-85 BESPOKE BS2100085-1 SAFETY INFORMATION WARNING if the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii Electric Fireplace. IMPORTANT INSTRUCTIONS CAUTIONS... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS 1. Read all instructions before installing or using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater. -
Page 4: Cautions
CAUTIONS Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or carrying out cleaning, maintenance. -
Page 5: Fcc Cautions
FCC CAUTIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifcations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 6: Unpacking And Testing Appliance
UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components are operating correctly. - Page 7 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
-
Page 8: Product Specification
NOTE: This appliance must be electrically wired and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70 National Electrical Code in the United States. BS2100045-1 BS2100055-1 BS2100065-1... -
Page 9: Outdoor Installation
OUTDOOR INSTALLATIONS The TRV Series electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance. -
Page 10: Hardwire Installation
HARDWIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. If it is necessary to hardwire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring. - Page 11 The following steps are applicable to model TRV-55 TRV-65 TRV-75， ， ， TRV-85. These appliances have two types of hardwired. Connect to 120V or 240V. Connect to 120V 1. Test the unit before removing the cord. Remove the cover plate from the back top right corner of the appliance by removing the four screws, as shown below.
- Page 12 Connect to 240V 1. Test the unit before removing the cord. Remove the cover plate from the back top right corner of the appliance by removing the four screws, as shown below. Unscrew and remove power cord. Disconnect the N G L 2.
-
Page 13: Installation
INSTALLATION The TRV BESPOKE models are designed to be built-in and allow for the finishing material (drywall, stone, tile, etc) to be built right down to the glass edge. NOTE: Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance. - Page 14 (3). Remove the fending panel on the right 5. Make an opening for the fireplace side if you want to view the flame from according to requested measurement. front and right side. 3. Screw back the fending bar after the panel is removed.
- Page 15 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. Three angles viewing Front and right side viewing Front and left side viewing 14 1/4” [367mm] 4” 8 3/4” [100mm] [222mm] 12 7/8”...
-
Page 16: Side By Side Installation
SIDE BY SIDE INSTALLATION 1. Unscrew 7 screws on the right side that 4. Unscrew 2 screws and remove the brackets fix the fending bar and panel, and then which are fending the right side glass. take off the fending bar and panel. 5. - Page 17 7. Place fireplace 1 and fireplace 2 on the same level, and place the right side of fireplace 1 close to the left side of fireplace 2. 8. Unscrew the 8 screws at the joint, then remove the 2 framing plates from the fireplace 1 and fix them as the picture shows.
-
Page 18: Media Installation
3. Installing the fire glass media. Pour the MEDIA INSTALLATION fire glass media into the tray as shown below. Feel free to use any combination of fire 1. Unscrew 3 screws（The quantity varies glass media that you find most appealing. depending on the size of the unit）... -
Page 19: Manual Operation
MANUAL OPERATION The fireplace operates either by the touch panel located on the left front top side of the fireplace or by supplied remote control. Ensure that the ON / OFF Power Switch on the fireplace is in the ON position. Touch the control panel once to “wakes up”... -
Page 20: Remote Control Operation
REMOTE CONTROL OPERATION For the remote to function make sure the fireplace is plugged in and the ON / OFF Power Switch on the fireplace is in the ON position and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. - Page 21 Each time Speed Button is pressed, the speed of the flame will change. Three options are available: Medium- High- Low. The Moodlight Button turns the moodlight on and off. When in on position, the display screen of the remote control shows AD 1, when the number “1” flash, you can set the color of moodlight with keys.
- Page 22 7 day timer function NOTE: Ensure that the current time setting accurate, otherwise the effective time of the 7 day timer function will be different from what you set. Press the key once, 7 days from Monday to Sunday will display on the LCD screen of the remote control, press key within 5 seconds to enter 7 day timer function .
-
Page 23: Trouble Shooting
TROUBLE SHOOTING Fault code Fault Cause Solution The heater overheating Call after-sales service. NTC is defective. Call after-sales service. If the vents are dirty or clogged. Unplug the power, The heater not working. clean the dust and debris of the vent area. Wait for 5 minutes, plug in and turn on the heater. -
Page 24: Exploded View
EXPLODED VIEW... -
Page 25: Wiring Diagram
WIRING DIAGRAM FOR TRV-45... - Page 26 WIRING DIAGRAM FOR TRV-55, TRV-65, TRV-75, TRV-85...
-
Page 27: Electric Fireplace Warranty
Should a product or part covered by this limited warranty be proven to be defective, in material or workmanship, and during the two (2) year limited warranty period, Amantii will replace such defective product or part without charge. If Amantii is unable to replace such product, or if replacement is not commercially practicable or cannot be timely done, in its sole discretion Amantii may, in lieu of replacement, choose to refund the purchase price for such product or part. - Page 28 The provisions of the United Nations Convention on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of products covered by this limited warranty. GENERAL Amantii reserves the right to make changes at any time without notice, in design, material, specifi cations, prices and the right to discontinue styles and products. GLASS...
