INSTALLATION /OWNER'S MANUAL
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
SYM-SLIM-
-50
(SM-X190050-1/EU2)
SYM-SLIM-60
(SM-X190060-1/EU2)
1
S
A A
Version:202201
Advertisement
Table of Contents
Related Manuals for Amantii SYM-SLIM-50
Summary of Contents for Amantii SYM-SLIM-50

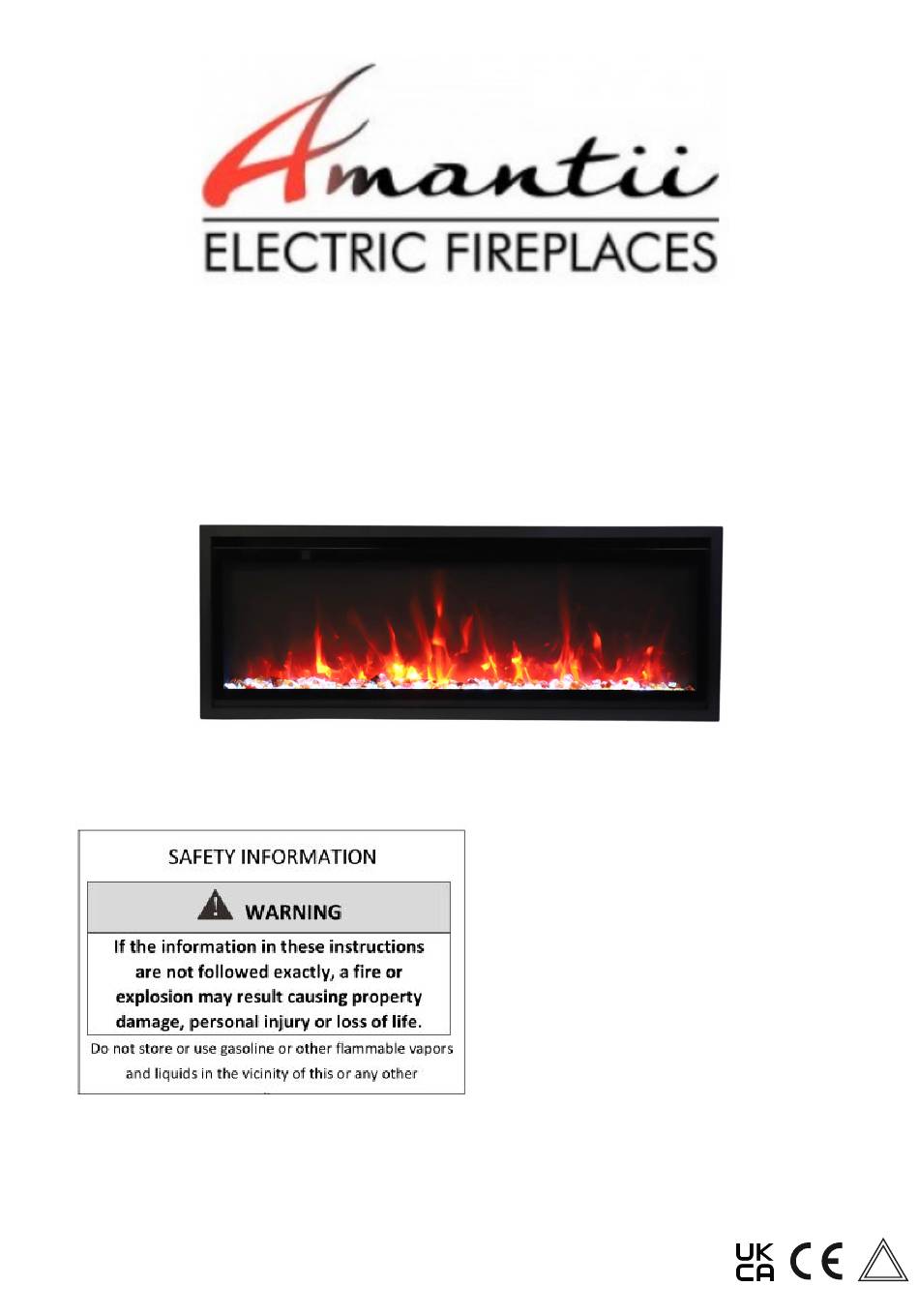

- Page 1 INSTALLATION /OWNER’S MANUAL SYM-SLIM- (SM-X190050-1/EU2) SYM-SLIM-60 (SM-X190060-1/EU2) INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii Electric Fireplace. IMPORTANT INSTRUCTIONS ............................ -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use. -
Page 4: Plug Installation
PLUG INSTALLATION Your power cord will come separate from the unit, please locate it when unpacking your fireplace. The plug contained inside the box is predetermined at the factory and according to orders placed by authorized dealers. Available are UK, European, Swiss & Australian plugs. Should you require any of these options please contact your dealer for purchase. -
Page 5: Unpacking And Testing The Appliance
UNPACKING AND TESTING THE APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 240 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components operate correctly. -
Page 6: Sym-Slim-50(Sm-X190050-1/Eu2)
SYM-SLIM-50 (SM-X190050-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 50 1/4” or 127.56 cm Appliance Height 15 3/8 ” or 39.1 cm Appliance Depth 4 1/8” or 10.4 cm Gross Weight 71.21 lbs or 32 kgs... -
Page 7: Sym-Slim-60(Sm-X190060-1/Eu2)
SYM-SLIM-60 (SM-X190060-1/EU2) Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 60 1/4” or 152.96 cm Appliance Height 15 3/8 ” or 39.1 cm Appliance Depth 4 1/8” or 10.4 cm Gross Weight 83.99 lbs or 38.1 kgs Plug Location Left side... -
Page 8: Wall Mount Installation
WALL MOUNT WALL MOUNT INSTALLATION NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. 1. Select a location that is not prone to moisture and is located at least 0.91 m or 3 feet away from combustible materials such as curtains or drapes, furniture, bedding, paper, etc. -
Page 9: Built In Installation
240 Volt grounded outlet. The rough wall opening size of the fireplace: The rough wall opening size of the fireplace: W(“) D(“) H(“) SYM-SLIM-50 50 1/2 4 3/8 15 5/8 (SM-X190050-1/EU2) SYM-SLIM-60 60 1/2... - Page 10 2. Unscrew the 2 screws located on each side and take off the inner Unscrew the 2 screws located on each side and take off the inner side steel panels. side steel panels. screws inner side steel panels screws 3. Put the fireplace into the wall op Put the fireplace into the wall opening and fix it to be the wall.
- Page 11 4. Screw back the inner side steel panel. Screw back the inner side steel panel. Screw back the inner side panel that you removed at STEP 2. 5. Put back the front glass panel after you finish the media back the front glass panel after you finish the media decoration.
-
Page 12: Media Options
MEDIA OPTIONS The only media that comes with this appliance he only media that comes with this appliance is ‘Clear glass’. Consumers may purchase ’. Consumers may purchase optional decorative media if they choose. See dealer for more details. optional decorative media if they choose. See dealer for more details. Clear glass DECORATIVE MEDIA INSTALLATION DECORATIVE MEDIA INSTALLATION... -
Page 13: Operation
OPERATION The Fireplace operates by using either the touch panel located on the upper left hand corner or by remote control. Plug the fireplace into a 15 Amp wall socket. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION Press to turn on and off the fireplace. -
Page 14: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the fireplace is plugged in and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes some time for the receiver to respond to the transmitter. - Page 15 AUTO means fireplace can automatically adjust to the temperature you set. When in AUTO, you can set the desired temperature with keys. You can switch temperature between Celsius and Fahrenheit with keys.When it is on Auto mode, fireplace operate at 1900W. Press this button to adjust the speed of the flame.
-
Page 16: Wifi Operation
WIFI OPERATION INSTALL TuyaSmart life There are 2 ways to install TuyaSmart; 1. Search for “TuyaSmart life” in the APP store on your phone, download and install. 2. Scan the QR code below with your mobile phone. WIFI SETTING AND FIREPLACE OPERATION 1. - Page 17 FIG.4 3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds when the fireplace in standby mode. There will be 2 beeps come out from the fireplace and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then please confirm to go next.
- Page 18 6. Now you are in the interface like FIG.7. You can operate the fireplace via Wi-fi. FIG.7 NOTE: Turn off the flashing blue Wifi indicator light Touch the (power button) once, the blue light will stop flashing.
-
Page 19: Care And Maintenance
CARE AND MAINTENANCE 1. Switch off and unplug from the power supply before cleaning. 2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the products. CAUTION: Allow the product to completely cool before handling or cleaning it. 3. -
Page 20: Replacement Parts
REPLACEMENT PARTS PART NUMBER DESCRIPTION SYM-SLIM-50 SYM-SLIM-60 (SM-X190050-1/EU2) (SM-X190060-1/EU2) TRIM 3237503 3239503 FRONT GLASS ASSEMBLY 3237507 3239507 TRAY GLASS 107022372 107022392 BACK GLASS 107022371 107022391 Qty Required LED STRIP LIGHT FOR FLAME Based on Size 601144 - Qty 4 601144 - Qty 5... -
Page 21: Exploded View
EXPLODED VIEW... -
Page 22: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary Back black cloth is falling off Change a new flicker and back and roll the flicker black cloth Ember bed is not Ember LED’s are burnt out Inspect the ember bed LED’s and... -
Page 23: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Technician Service Performed Special Concerns Name Name NOTES:...
