INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLATION AND OPERATION INSTRUCTIONS FOR
SYM-50-XTRASLIM
SYM-60-XTRASLIM
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYM-50-XTRASLIM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amantii SYM-50-XTRASLIM

Summary of Contents for Amantii SYM-50-XTRASLIM

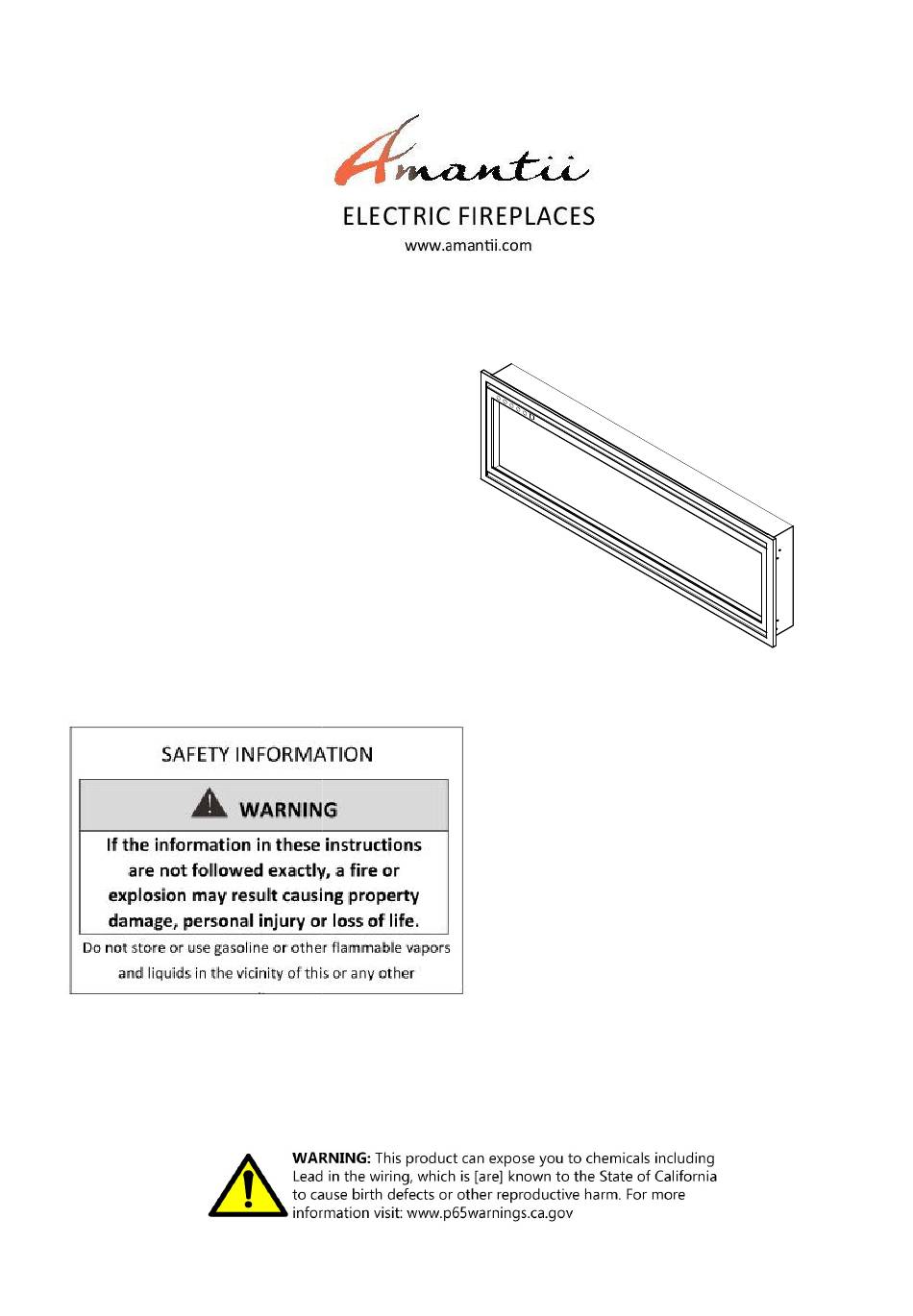

  • Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR INSTALLATION AND OPERATION INSTRUCTIONS FOR INSTALLATION AND OPERATION INSTRUCTIONS FOR SYM-50-XTRASLIM SYM-60-XTRASLIM INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS ............................

  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS 1. Read all instructions before installing or using this heater. 2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater. 3. Always unplug heater when not in use. 4.
  • Page 4 knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Page 5 Cautions Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or Do’s carrying out cleaning, maintenance.

  • Page 6: Unpacking And Testing Appliance

    UNPACKING AND TESTING APPLIANCE UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. ully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging Prior to installing the appliance, test to make sure the appliance operates properly by plugging Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 120 Volt grounded outlet.

  • Page 7: Sym-50-Xtraslim

    SYM-50-XTRASLIM Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance...

  • Page 8: Sym-60-Xtraslim

    SYM-60-XTRASLIM Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER during installation, please contact your local MOTOR HEATER...

  • Page 9: Installation-Wall Mount

    INSTALLATION-WALL MOUNT WALL MOUNT NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. 1. Select a location that is not prone to moisture and is located at least 0.91 m or 3 feet away from combustible materials such as curtains or drapes, furniture, bedding, paper, etc.

  • Page 10: Installation- Built-In

    120 Volt grounded outlet. The rough wall opening size of the fireplace: The rough wall opening size of the fireplace: W(“) D(“) H(“) SYM-50-XTRASLIM 50 1/2 4 3/8 15 5/8 SYM-60-XTRASLIM 60 1/2 4 3/8...
  • Page 11 2. Unscrew the 2 screws located on each side and take off the inner side steel panels. panel. screws inner side steel panels screws off the inner side steel panels. 3. Put the fireplace into the wall opening and fix it to be the wall. Screw the appliance onto the wall.
  • Page 12 4. Screw back the inner side steel panel. Screw back the inner side panel that you removed at STEP 2. 5. Put back the front glass panel after you finish the media decoration.

  • Page 13: Hard- Wire Installation

    HARD- WIRE INSTALLATION WIRE INSTALLATION Turn off the appliance completely and let cool before servic Turn off the appliance completely and let cool before servicing. Only a qualified ing. Only a qualified service person should service and repair this electric appliance. person should service and repair this electric appliance.

  • Page 14: Decorative Media Installation

    MEDIA OPTIONS The only media that comes with this appliance is ‘Suntea’. Consumers may purchase optional decorative media if they choose. See dealer for more details. Suntea DECORATIVE MEDIA INSTALLATION DECORATIVE MEDIA INSTALLATION Unscrew 1 screw on each left and right side to take off the front glass panel. Screw Screw INSTALLING THE DECORATIVE MEDIA...

  • Page 15: Operation

    OPERATION The fireplace can be operated either by the touch panel located on the left front top side of The fireplace can be operated either by the touch panel located on the left front top side of The fireplace can be operated either by the touch panel located on the left front top side of the fireplace, or by supplied remote control.

  • Page 16: Remote Control Operation

    REMOTE CONTROL OPERATION DISPLAY ON/OFF YELLOW ORANGE TRAY ON/OFF ADJUST FLASH HEATER ON/OFF HIGH TEMP. For remote to function make sure the heater is plugged in and main power switch located on the bottom left hand side is at position I. When operating the remote make sure you point the remote to the centre of the fireplace and make sure each time you press the button the buzzer inside the unit will beep once.
  • Page 17 7. Press “ADJUST”, rotates through , rotates through the 13 colors of tray lighting. 8. Press “FLASH”, the tray light cycles through all 13 colors. the tray light cycles through all 13 colors. 9. Press “HEATER ON/OFF ON/OFF” once to turn on the heater, in H2 setting, 1500W, indicating heater, in H2 setting, 1500W, indicating “H2”...

  • Page 18: Installing Wall Thermostat

    INSTALLING WALL THERMOSTAT INSTALLING WALL THERMOSTAT WALL THERMOSTAT WIRING DIAGRAMS WALL THERMOSTAT WIRING DIAGRAMS NOTE: The wall thermostat will be functioning when the heater is on the TEMP. setting. NOTE: The wall thermostat will be functioning when the heater is on the TEMP. setting. NOTE: The wall thermostat will be functioning when the heater is on the TEMP.

  • Page 19: Replacement Parts

    REPLACEMENT PARTS PART NUMBER DESCRIPTION SYM-50-XTRASLIM SYM-60-XTRASLIM 3237503 3239503 TRIM FRONT GLASS 3237507 3239507 ASSEMBLY 107022372 107022392 TRAY GLASS 107022371 107022391 BACK GLASS 601144 FLAME LED STRIP 10101225 FLAME MOTOR 3237505 3239505 FLICKER ASSEMBLY 601105F CIRCUIT BOARD RIGHT OUT SIDE...

  • Page 20: Exploded View

    EXPLODED VIEW...

  • Page 21: Truble Shooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary Back black cloth is falling off Change a new flicker and back and roll the flicker black cloth Ember bed is not Ember LED’s are burnt out Inspect the ember bed LED’s and...

  • Page 22: Service History

    SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Technician Service Performed Special Concerns Name Name NOTES:...

  • Page 23: Warranty

    (2) year limited warranty period, Amantii will replace such defective product or part without charge. If Amantii is unable to replace such product, or if replacement is not commercially practicable or cannot be timely done, in its sole discretion Amantii may, in...
  • Page 24 Amantii does not cover labor or service charges to replace said parts. Limitations In no event will Amantii, including without limitation any of its directors, officers, shareholders, employees,...
