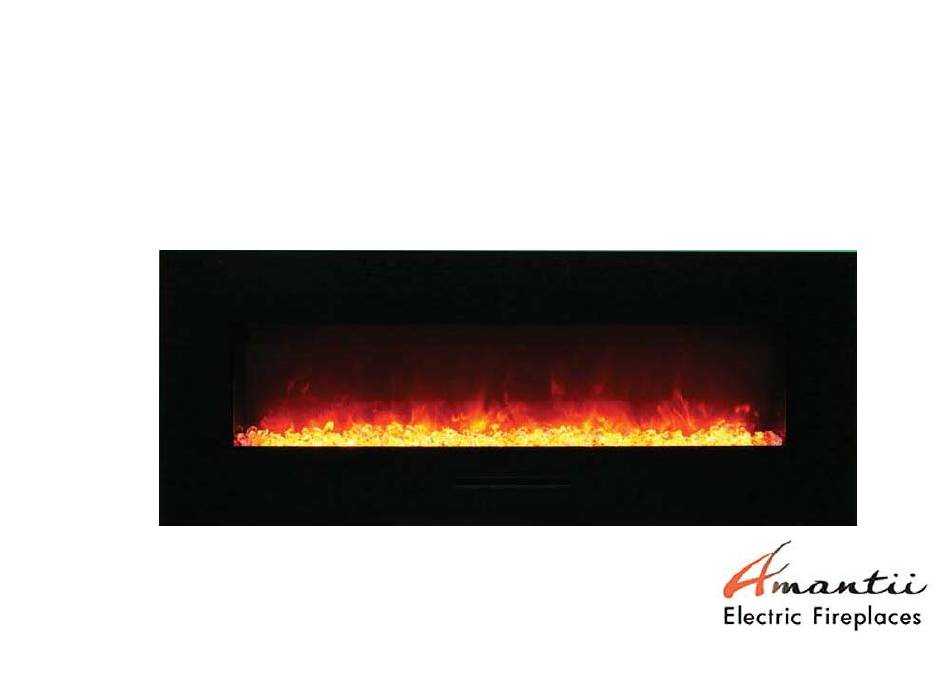

- Page 1 Fix your Fireplace...
- Page 2 Contents Contents • How to replace LED light How to replace LED light • How to replace flicker motor • How to replace the heating element th h • How to replace the PCB board...
- Page 3 Replace LED light Item No.:FS-26-922 Step 1 Hold tightly and push upwards, then you can remove the front glass panel...
- Page 4 Step 2 Left Right Unscrew two screws on the top of each side (red dots) to remove inner each side (red dots) to remove inner side panels and ember bed glass panel...
- Page 5 Remove screws → remove side panels → remove ember bed glass panel Remove screws → remove side panels → remove ember bed glass panel...
- Page 6 Step 3 Now, you can replace ember bed LED light Ember bed LED light locates here Unplug the red circled socket and replace The old LED light with a new Change flame light, see step 4...
- Page 7 Step 4 Unscrew 4 screws on both sides (circled in red) to remove the plastic board...
- Page 8 Now you can replace the flame light.
- Page 9 Replace flicker motor Replace flicker motor Please follow Please follow Step1 Step1 Step2 Step2 in replace in replace LED light, then you arrived here...
- Page 10 Replace ember bed flicker motor Step 1 Unscrew the screw to separate the motor and the flicker rod...
- Page 11 Step 2 Now you can change the motor Unscrew the four screws circled In red to remove the motor...
- Page 12 Replace flame effect flicker motor Step 1 Unscrew 4 screws on both sides (circled in red) to remove the plastic board remove the plastic board...
- Page 13 Step 2 Unscrew the screw to separate the t th motor and flicker rod...
- Page 14 Step 3 Unscrew the four screws on both side( circled in red, comparative bigger ones) Left Right...
- Page 15 Step 4 Unscrew the six screws circled in left picture, then you can remove the main body cover...
- Page 16 Step 5 Unscrew the screws and then you can remove th fli k the flicker motor for flame effect...
- Page 17 Replace the heating element Replace the heating element Please follow Step1 Step2 in replace LED light, and step3 step4 Replace flame effect flicker motor Replace flame effect flicker motor Step 1 Remove the upper cover Unscrew the four screws circled in pictures, on right and left sides of the fireplace body, then you can remove upper cover...
- Page 18 Step 2 After the upper cover is removed, you can see heating element like bellow. Unscrew 3 screws.
- Page 19 Step 3 In order to remove the heating element, you need to unscrew 4 more screws which are beneath the heating element, opposite to the three screws you Removed at the Srep2. Removed at the Srep2. Right In details Left...
- Page 20 Step 4 Unplug the heating element Unplug the heating element and then you can remove it and then you can remove it.
- Page 21 Replace the PCB board Replace the PCB board Step 1...
